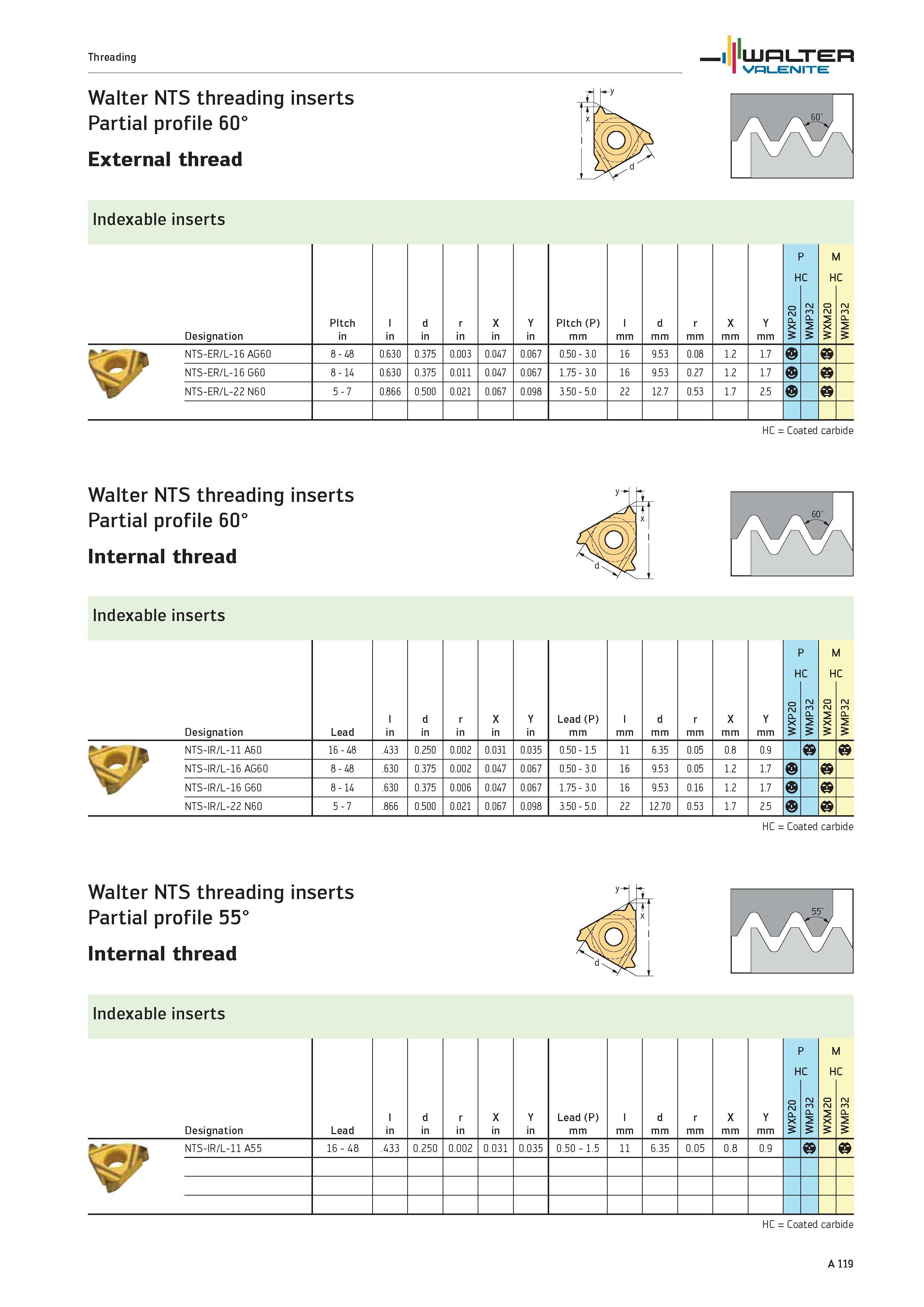

Threading WALTER Valenite Walter NTS threading inserts Partial profile 60° External thread Indexable inserts Designation Pitch in l in d in r in X in Y in Pitch (P) mm l mm d mm r mm X mm Y mm H 0 P X WX WMP32 n M H 0 2 X 5 WMP32 n NTS-ER/L-16 AG60 8 48 0.630 0.375 0.003 0.047 0.067 0.50 3.0 16 9.53 0.08 1.2 1.7 NTS-ER/L-16 G60 8 14 0.630 0.375 0.011 0.047 0.067 1.75 3.0 16 9.53 0.27 1.2 1.7 NTS-ER/L-22 N60 5 7 0.866 0.500 0.021 0.067 0.098 3.50 5.0 22 12.7 0.53 1.7 2.5 HC Coated carbide Walter NTS threading inserts Partial profile 60° Internal thread Indexable inserts Designation Lead l in d in r in X in Y in Lead(P) mm l mm d mm r mm X mm Y mm H 0 P X WX WMP32 n M H 0 2 X 5 WMP32 n NTS-IR/L-11 A60 16 48 .433 0.250 0.002 0.031 0.035 0.50 1.5 11 6.35 0.05 0.8 0.9 NTS-IR/L-16 AG60 8 48 .630 0.375 0.002 0.047 0.067 0.50 3.0 16 9.53 0.05 1.2 1.7 NTS-IR/L-16 G60 8 14 .630 0.375 0.006 0.047 0.067 1.75 3.0 16 9.53 0.16 1.2 1.7 NTS-IR/L-22 N60 5 7 .866 0.500 0.021 0.067 0.098 3.50 5.0 22 12.70 0.53 1.7 2.5 HC Coated carbide Walter NTS threading inserts Partial profile 55° Internal thread Indexable inserts Designation Lead l in d in r in X in Y in Lead(P) mm l mm d mm r mm X mm Y mm H 0 P X WX WMP32 n H 0 2 X 5 WMP32 n h/fc NTS-IR/L-11 A55 16 48 .433 0.250 0.002 0.031 0.035 0.50 1.5 11 6.35 0.05 0.8 0.9 HC Coated carbide A 119
