PVD coated carbide grades Tungaloy consist of a cemented carbide substrate over which titanium compound such as TiN is covered to about 1 to 5 im thick by

PVD coated carbide grades Tungaloy consist of a cemented carbide substrate over which titanium compound such as TiN is covered to about 1 to 5 im thick by

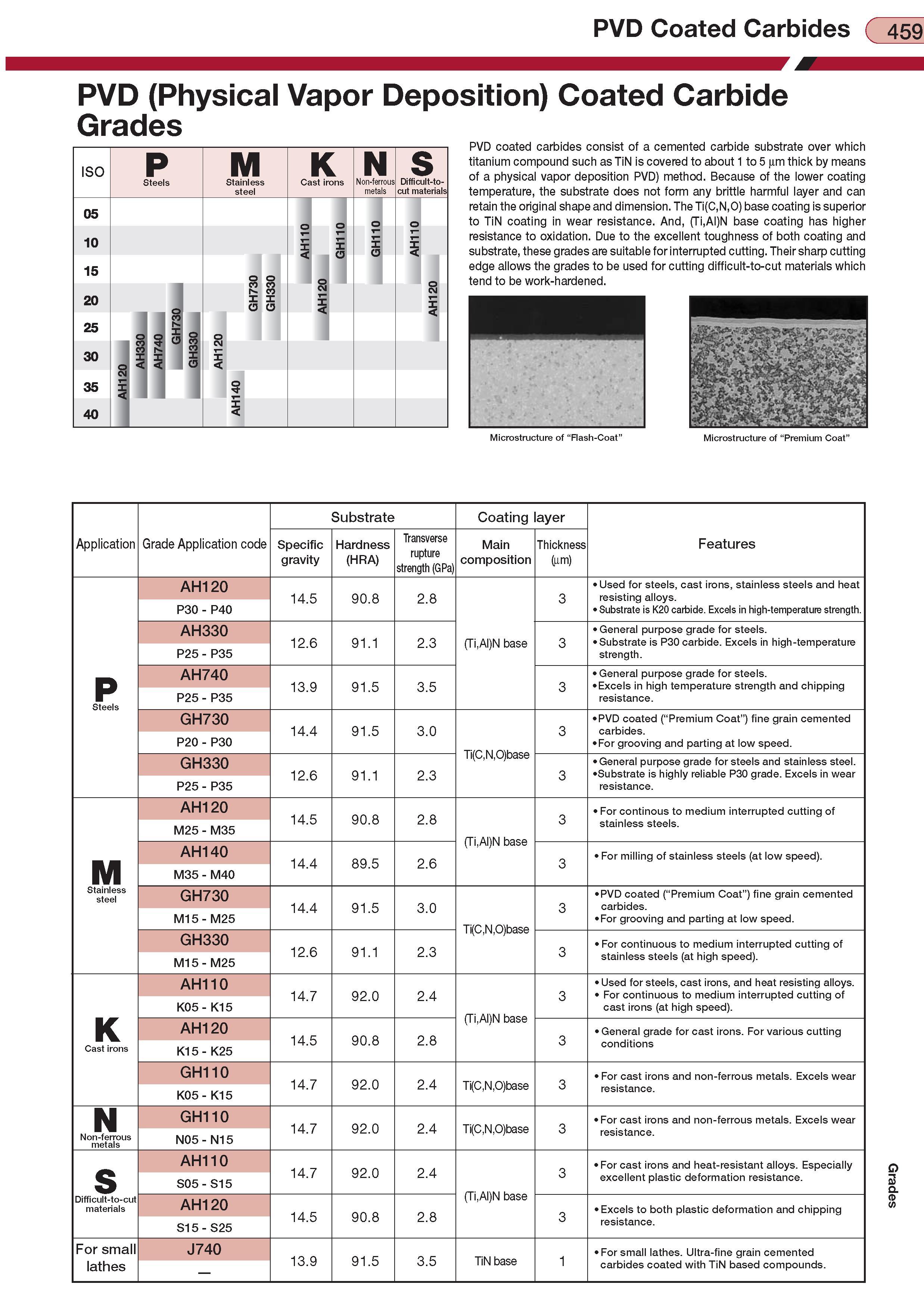

PVD coated carbide grades Tungaloy consist of a cemented carbide substrate over which titanium compound such as TiN is covered to about 1 to 5 im thick by means of a physical vapor deposition PVD) method. Because of the lower coating temperature the substrate does not form any brittle harmful layer and can retain the original shape and dimension. The Ti(CNO) base coating is superior to TiN coating in wear resistance. And (TiAl)N base coating has higher resistance to oxidation. Due to the excellent toughness of both coating and substrate these grades are suitable for interrupted cutting. Their sharp cutting edge allows the grades to be used for cutting difficult-to-cut materials which tend to be work-hardened. Microstructure of Flash-Coat Microstructure of Premium Coat Substrate Coating layer Application Grade Application code Specific gravity Hardness (HRA) Transverse rupture strength (GPa) Main composition W W .O 1 Features AH120 14.5 90.8 2.8 3 Used for steels cast irons stainless steels and heat resisting alloys. Substrate is K20 carbide. Excels in high-temperature strength. P30 - P40 AH330 12.6 91.1 2.3 (TiAl)N base 3 General purpose grade for steels. Substrate is P30 carbide. Excels in high-temperature strength. P25 - P35 P Steels AH740 13.9 91.5 3.5 3 General purpose grade for steels. Excels in high temperature strength and chipping resistance. P25 - P35 GH730 14.4 91.5 3.0 3 PVD coated (Premium Coat) fine grain cemented carbides. For grooving and parting at low speed. P20 - P30 Ti(CNO)base GH330 12.6 91.1 2.3 3 General purpose grade for steels and stainless steel. Substrate is highly reliable P30 grade. Excels in wear resistance. P25 - P35 AH120 14.5 90.8 2.8 3 For continous to medium interrupted cutting of M25 - M35 (TiAl)N base stainless steels. M AH140 14.4 89.5 2.6 3 For milling of stainless steels (at low speed). M35 - M40 Stainless steel GH730 14.4 91.5 3.0 3 PVD coated (Premium Coat) fine grain cemented carbides. For grooving and parting at low speed. M15 - M25 Ti(CNO)base GH330 12.6 91.1 2.3 3 For continuous to medium interrupted cutting of M15 - M25 stainless steels (at high speed). AH110 14.7 92.0 2.4 3 Used for steels cast irons and heat resisting alloys. For continuous to medium interrupted cutting of cast irons (at high speed). K K05 - K15 (TiAl)N base AH120 14.5 90.8 2.8 3 General grade for cast irons. For various cutting Cast irons K15 - K25 conditions GH110 14.7 92.0 2.4 Ti(CNO)base 3 For cast irons and non-ferrous metals. Excels wear K05 - K15 resistance. N Non-ferrous metals GH110 14.7 92.0 2.4 Ti(CNO)base 3 For cast irons and non-ferrous metals. Excels wear N05 - N15 resistance. AH110 14.7 92.0 2.4 3 For cast irons and heat-resistant alloys. Especially S S05 - S15 (TiAl)N base excellent plastic deformation resistance. Difficult-to-cut materials AH120 14.5 90.8 2.8 3 Excels to both plastic deformation and chipping S15 - S25 resistance. For small J740 13.9 91.5 3.5 TiN base 1 For small lathes. Ultra-fine grain cemented lathes carbides coated with TiN based compounds. Grades PVD (Physical Vapor Deposition) Coated Carbide Grades ISO 05 10 15 M Stainless steel K N S Cast irons Non-ferrous Difficult-to- metals cut materials 0
