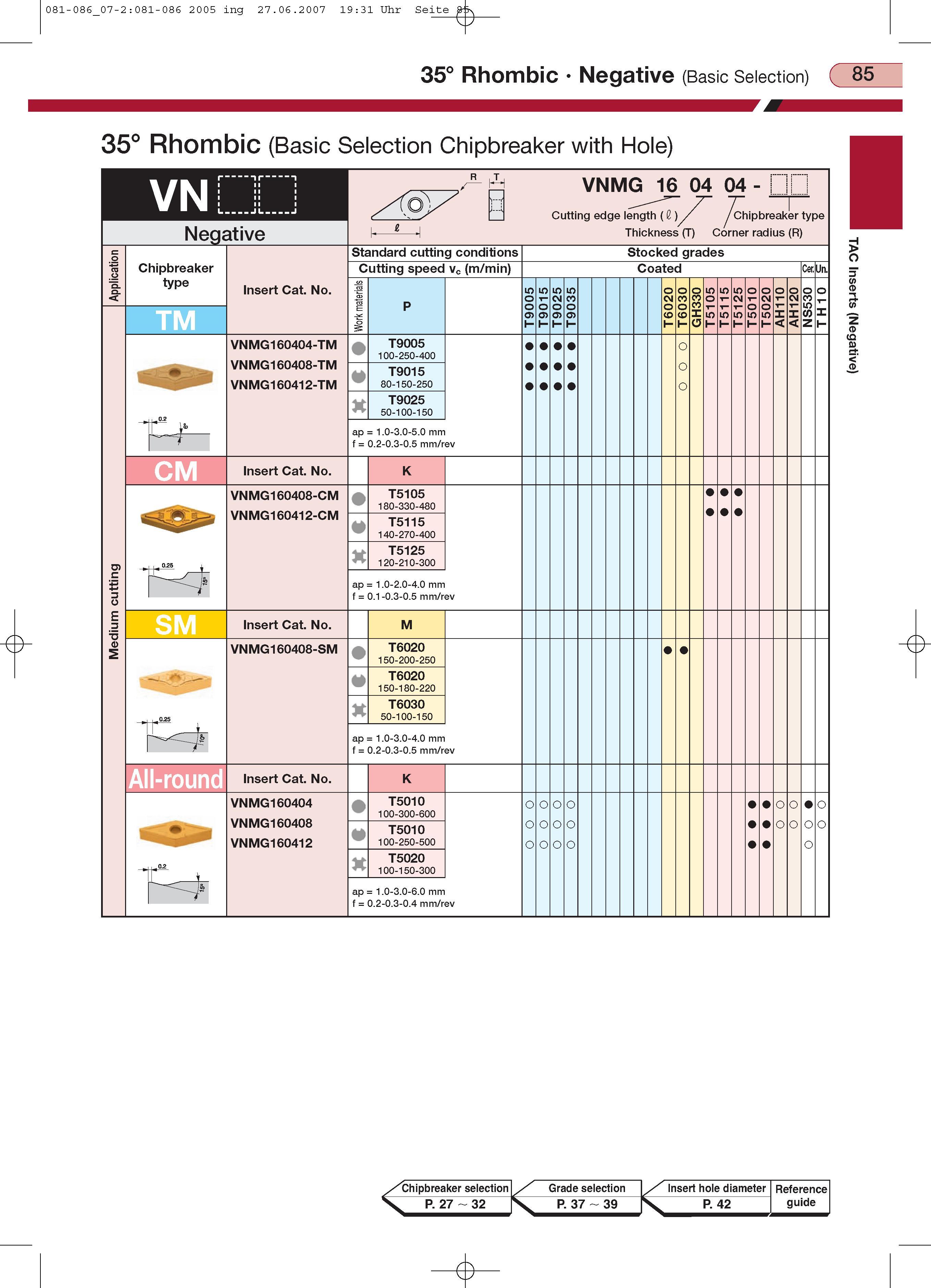

35 Rhombic Negative (Basic Selection) ( 85 35 Rhombic (Basic Selection Chipbreaker with Hole) VN Negative Chipbreaker type TM CM SM All-round VNMG 16 04 04 - c.- Cutting edge length (2 ) Thickness (T) Chipbreaker type COrner radius (R) Standard cutting conditions Cutting speed vc (m/min) Insert Cat. No. 2 D "co E P S0061 91-061 5 2 0 9 T T9035 VNMG160404-TM VNMG160408-TM VNMG160412-TM T9005 100-250-400 T9015 80-150-250 X T9025 50-100-150 ap f 1.0-3.0-5.0 mm 0.2-0.3-0.5 mm/rev Insert Cat. No. K VNMG160408-CM VNMG160412-CM T5105 180-330-480 T5115 140-270-400 X T5125 120-210-300 ap f 1.0-2.0-4.0 mm 0.1-0.3-0.5 mm/rev Insert Cat. No. M VNMG160408-SM T6020 150-200-250 T6020 150-180-220 X T6030 50-100-150 ap f 1.0-3.0-4.0 mm 0.2-0.3-0.5 mm/rev Insert Cat. No. K VNMG160404 VNMG160408 VNMG160412 T5010 100-300-600 T5010 100-250-500 X T5020 100-150-300 ap f 1.0-3.0-6.0 mm 0.2-0.3-0.4 mm/rev Stocked grades Coated Cer. Un. 10 10 Chipbreaker selection Grade selection Insert hole diameter Reference P. 27 32 S P. 37 39 p. 42 guide -e- TAC Inserts (Negative)
