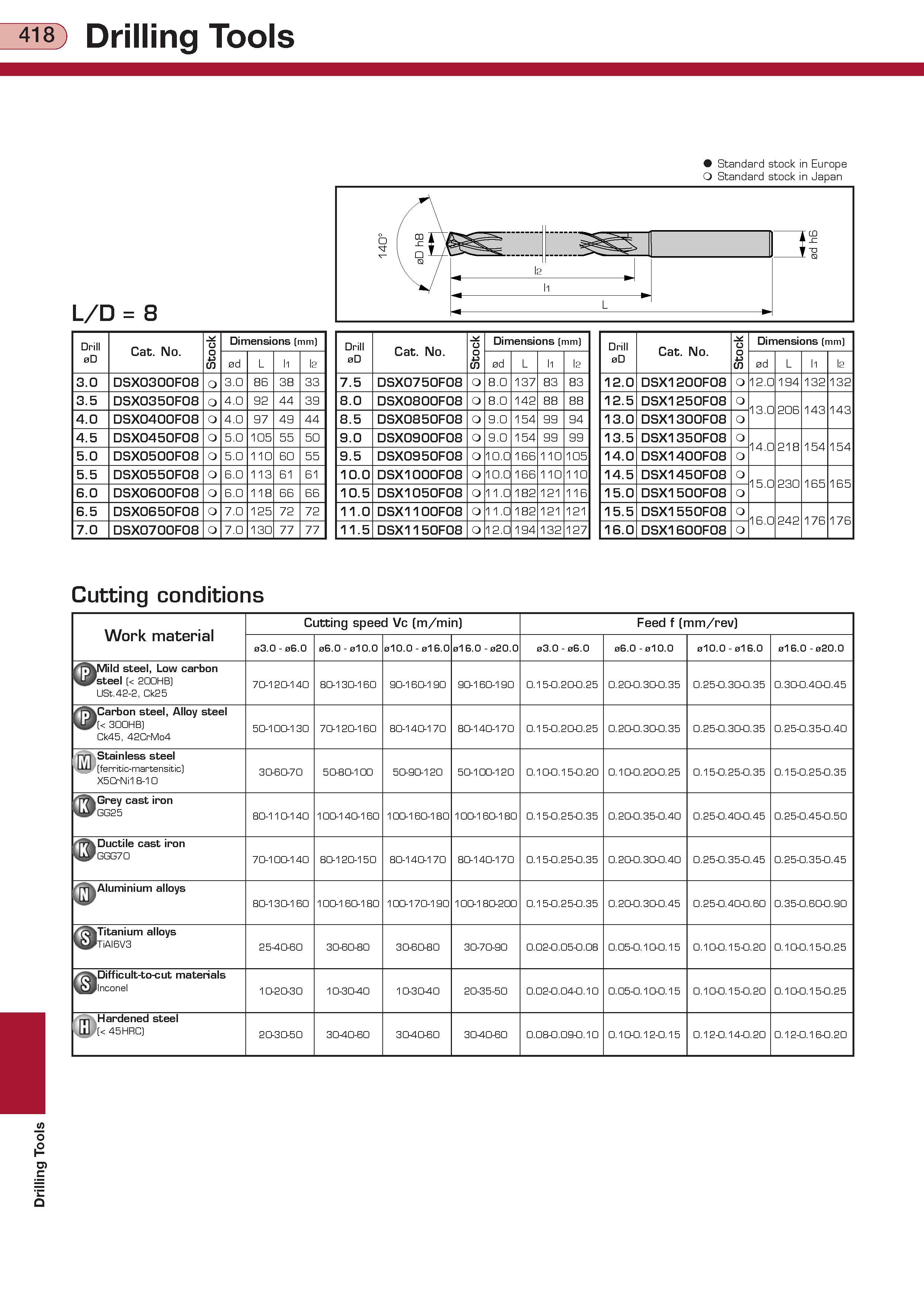

Drilling Tools Standard stock in Europe Standard stock in Japan L D 8 Drill 0D Cat. No. k c t S Dimensions (mm) ed L l1 l2 3.0 DSX0300F08 3.0 86 38 33 3.5 DSX0350F08 4.0 92 44 39 4.0 DSX0400F08 4.0 97 49 44 4.5 DSX0450F08 5.0 105 55 50 5.0 DSX0500F08 5.0 110 60 55 5.5 DSX0550F08 6.0 113 61 61 6.0 DSX0600F08 6.0 118 66 66 6.5 DSX0650F08 7.0 125 72 72 7.0 DSX0700F08 7.0 130 77 77 Drill 0D Cat. No. k c t S Dimensions (mm) ed L l1 l2 12.0 DSX1200F08 12.0 194 132 132 12.5 DSX1250F08 13.0 206 143 143 13.0 DSX1300F08 13.5 DSX1350F08 14.0 218 154 154 14.0 DSX1400F08 14.5 DSX1450F08 15.0 230 165 165 15.0 DSX1500F08 15.5 DSX1550F08 16.0 242 176 176 16.0 DSX1600F08 Drill 0D Cat. No. k c t S Dimensions (mm) ed L l1 l2 7.5 DSX0750F08 8.0 137 83 83 8.0 DSX0800F08 8.0 142 88 88 8.5 DSX0850F08 9.0 154 99 94 9.0 DSX0900F08 9.0 154 99 99 9.5 DSX0950F08 10.0 166 110 105 10.0 DSX1000F08 10.0 166 110 110 10.5 DSX1050F08 11.0 182 121 116 11.0 DSX1100F08 11.0 182 121 121 11.5 DSX1150F08 12.0 194 132 127 Cutting conditions Work material Cutting speed Vc (m/min) Feed f (mm/rev) 03.0 - 06.0 06.0 - 010.0 010.0 - 016.0 016.0 - 020.0 03.0 - 06.0 06.0 - 010.0 010.0 - 016.0 016.0 - 020.0 fcMild steel Low carbon yjFsteel 200HB) USt.42-2 Ck25 70-120-140 80-130-160 90-160-190 90-160-190 0.15-0.20-0.25 0.20-0.30-0.35 0.25-0.30-0.35 0.30-0.40-0.45 m Carbon steel Alloy steel 4 300HB) Ck45 42CrMo4 50-100-130 70-120-160 80-140-170 80-140-170 0.15-0.20-0.25 0.20-0.30-0.35 0.25-0.30-0.35 0.25-0.35-0.40 irrft Stainless steel (ferritic-martensitic) X5CrNi18-10 30-60-70 50-80-100 50-90-120 50-100-120 0.10-0.15-0.20 0.10-0.20-0.25 0.15-0.25-0.35 0.15-0.25-0.35 ''p Grey cast iron J GG25 80-110-140 100-140-160 100-160-180 100-160-180 0.15-0.25-0.35 0.20-0.35-0.40 0.25-0.40-0.45 0.25-0.45-0.50 'flV Ductile cast iron LA GGG70 70-100-140 80-120-150 80-140-170 80-140-170 0.15-0.25-0.35 0.20-0.30-0.40 0.25-0.35-0.45 0.25-0.35-0.45 gp Aluminium alloys 80-130-160 100-160-180 100-170-190 100-180-200 0.15-0.25-0.35 0.20-0.30-0.45 0.25-0.40-0.60 0.35-0.60-0.90 r Titanium alloys 2JTiAl6V3 25-40-60 30-60-80 30-60-80 30-70-90 0.02-0.05-0.08 0.05-0.10-0.15 0.10-0.15-0.20 0.10-0.15-0.25 x7%Difficult-to-cut materials jjinconel 10-20-30 10-30-40 10-30-40 20-35-50 0.02-0.04-0.10 0.05-0.10-0.15 0.10-0.15-0.20 0.10-0.15-0.25 Hardened steel HI l( 45HRC) 20-30-50 30-40-60 30-40-60 30-40-60 0.08-0.09-0.10 0.10-0.12-0.15 0.12-0.14-0.20 0.12-0.16-0.20
