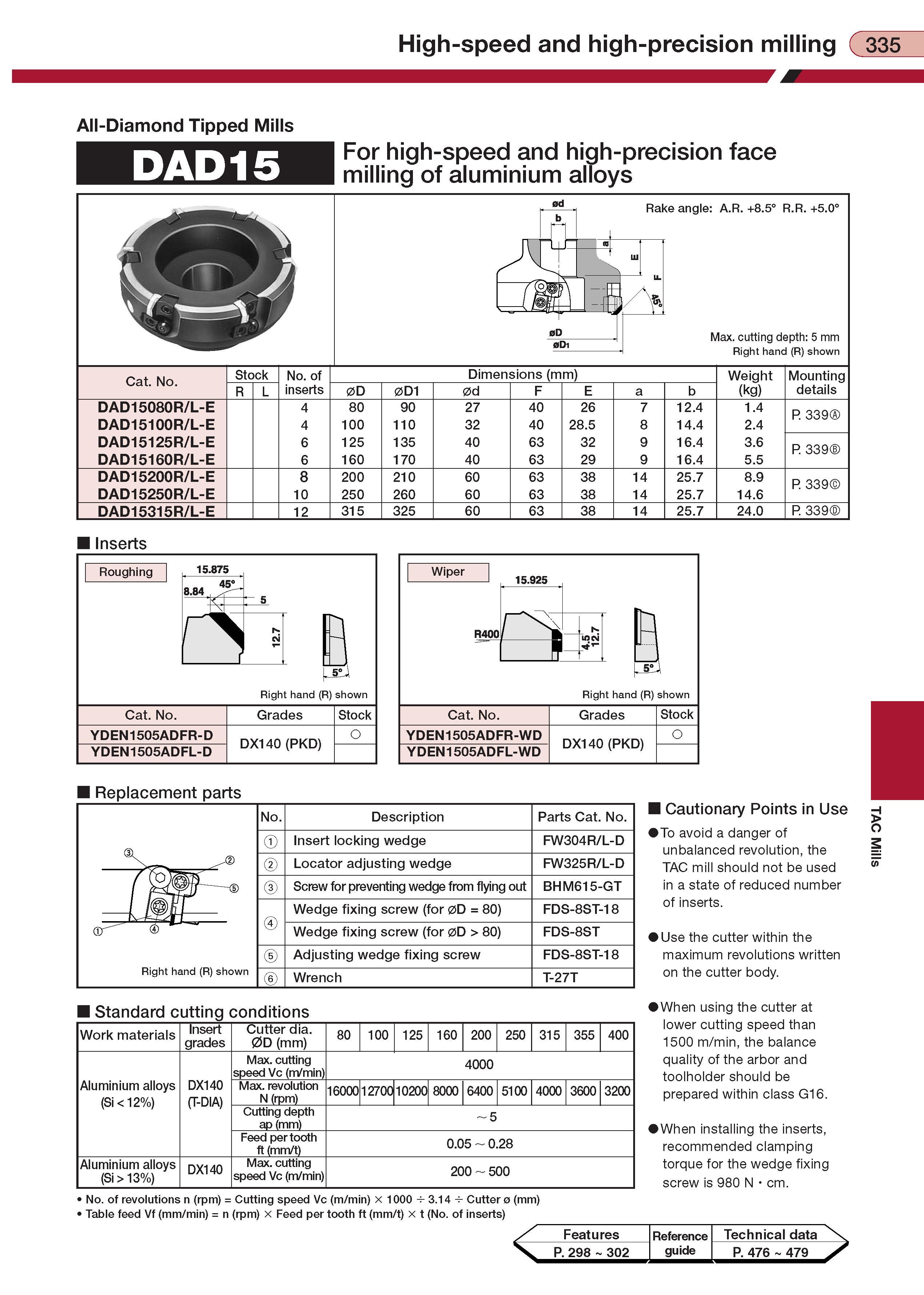

High-speed and high-precision milling All-Diamond Tipped Mills DAD15 For high-speed and high-precision face milling of aluminium alloys Stock No. of Dimensions (mm) R/L inserts 0D 0D1 0d F E a b (kg) details DAD15080R/L-E 4 80 90 27 40 26 7 12.4 1.4 P 339 DAD15100R/L-E 4 100 110 32 40 28.5 8 14.4 2.4 DAD15125R/L-E 6 125 135 40 63 32 9 16.4 3.6 P 339 DAD15160R/L-E 6 160 170 40 63 29 9 16.4 5.5 DAD15200R/L-E 8 200 210 60 63 38 14 25.7 8.9 P 339 DAD15250R/L-E 10 250 260 60 63 38 14 25.7 14.6 DAD15315R/L-E 12 315 325 60 63 38 14 25.7 24.0 P 339 Inserts Roughing Right hand (R) shown Cat. No. YDEN1505ADFR-D YDEN1505ADFL-D Grades DX140 (PKD) Stock Wiper R400 15.925 a Right hand (R) shown Cat. No. YDEN1505ADFR-WD YDEN1505ADFL-WD Grades DX140 (PKD) Stock Replacement parts Right hand (R) shown No. Description Parts Cat. No. Insert locking wedge FW304R/L-D Locator adjusting wedge FW325R/L-D Screw for preventing wedge from flying out BHM615-GT Wedge fixing screw (for 0D 80) FDS-8ST-18 Wedge fixing screw (for 0D 80) FDS-8ST Adjusting wedge fixing screw FDS-8ST-18 Wrench T-27T Standard cutting conditions Work materials Insert grades Cutter dia. 0D (mm) 80 100 125 160 200 250 315 355 400 Aluminium alloys (Si 12%) DX140 (T-DIA) Max. cutting speed Vc (m/min) 4000 Max. revolution N (rpm) 16000 12700 10200 8000 6400 5100 4000 3600 3200 Cutting depth ap (mm) 5 Feed per tooth ft (mm t) 0.05 0.28 Aluminium alloys (Si 13%) DX140 Max. cutting speed Vc (m/min) 200 500 Cautionary Points in Use Ho avoid a danger of unbalanced revolution the TAC mill should not be used in a state of reduced number of inserts. Use the cutter within the maximum revolutions written on the cutter body. When using the cutter at lower cutting speed than 1500 m/min the balance quality of the arbor and toolholder should be prepared within class G16. When installing the inserts recommended clamping torque for the wedge fixing screw is 980 N cm. 1 No. of revolutions n (rpm) Cutting speed Vc (m/min) x 1000 3.14 Cutter 0 (mm) 1 Table feed Vf (mm/min) n (rpm) x Feed per tooth ft (mm t) x t (No. of inserts) Features Reference Technical data P. 298 302 guide P. 476 479 TAC Mills
