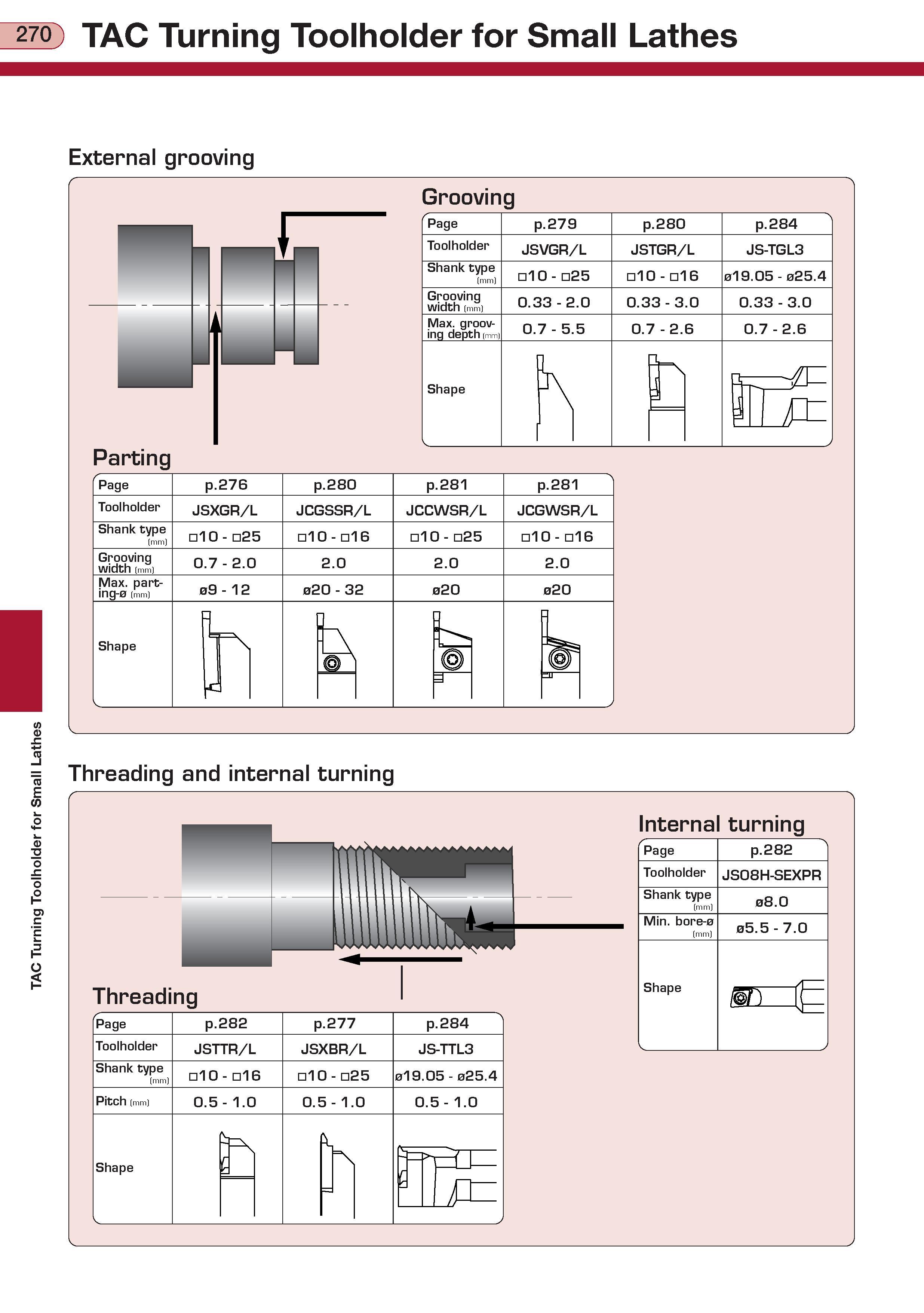

TAC Turning Toolholder for Small Lathes External grooving Grooving Parting Page Toolholder Shank type (mm) Grooving width (mm) Max. grooving depth (mm) Shape Page Toolholder Shank type (mm) Grooving width (mm) Max. parting-0 (mm) Shape p.276 JSXGR/L 10 - 25 0.7 - 2.0 09 - 12 p.280 JCGSSR/L 10 - 16 2.0 020 - 32 p.281 JCCWSR/L 10 - 25 2.0 020 p.279 JSVGR/L 10 - 25 0.33 - 2.0 0.7 - 5.5 p.280 JSTGR/L 10 - 16 0.33 - 3.0 0.7 - 2.6 p.281 JCGWSR/L 10 - 16 2.0 020 i j j p.284 JS-TGL3 019.05 - 025.4 0.33 - 3.0 0.7 - 2.6 Threading and internal turning Threading Page Toolholder Shank type (mm) Pitch (mm) Shape p.282 JSTTR/L 10 - 16 0.5 - 1.0 p.277 JSXBR/L 10 - 25 0.5 - 1.0 Pl p.284 JS-TTL3 019.05 - 025.4 0.5 - 1.0 Internal turning Page p.282 'x Toolholder JS08H-SEXPR Shank type (mm) 08.0 Min. bore-0 (mm) 05.5 - 7.0 Shape (- V J
