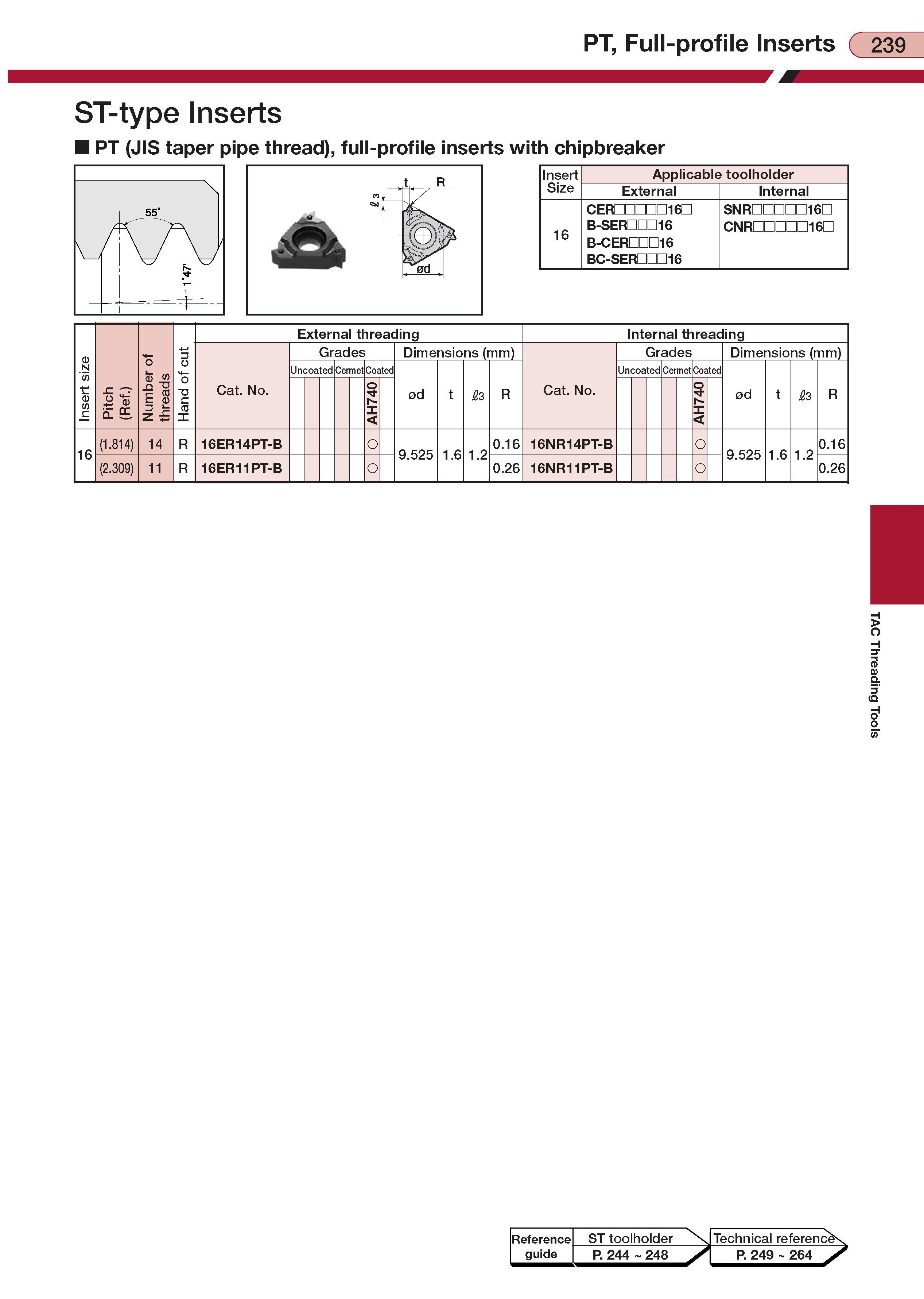

PT Full-profile Inserts ST-type Inserts PT (JIS taper pipe thread) full-profile inserts with chipbreaker Insert Size Applicable toolholder External Internal 16 CER ri16n B-SERnnm6 B-CERI 116 BC-SER 16 SNR UU16U CNR UU16U External threading Insert size Number of threads Hand of cut Grades Dimensions (mm) Grades Dimensions (mm) Uncoated Cermet Coated Uncoated Cermet Coated Pitch (Ref.) Cat. No. 0 4 7 H 0d t R3 R Cat. No. 0 4 7 H 0d t R3 R 16 (1.814) 14 R 16ER14PT-B 9.525 1.6 1.2 0.16 16NR14PT-B 9.525 1.6 1.2 0.16 (2.309) 11 R 16ER11PT-B 0.26 16NR11PT-B 0.26 Internal threading Reference ST toolholder Technical reference guide P. 244 248 P. 249 264 TAC Threading Tools
