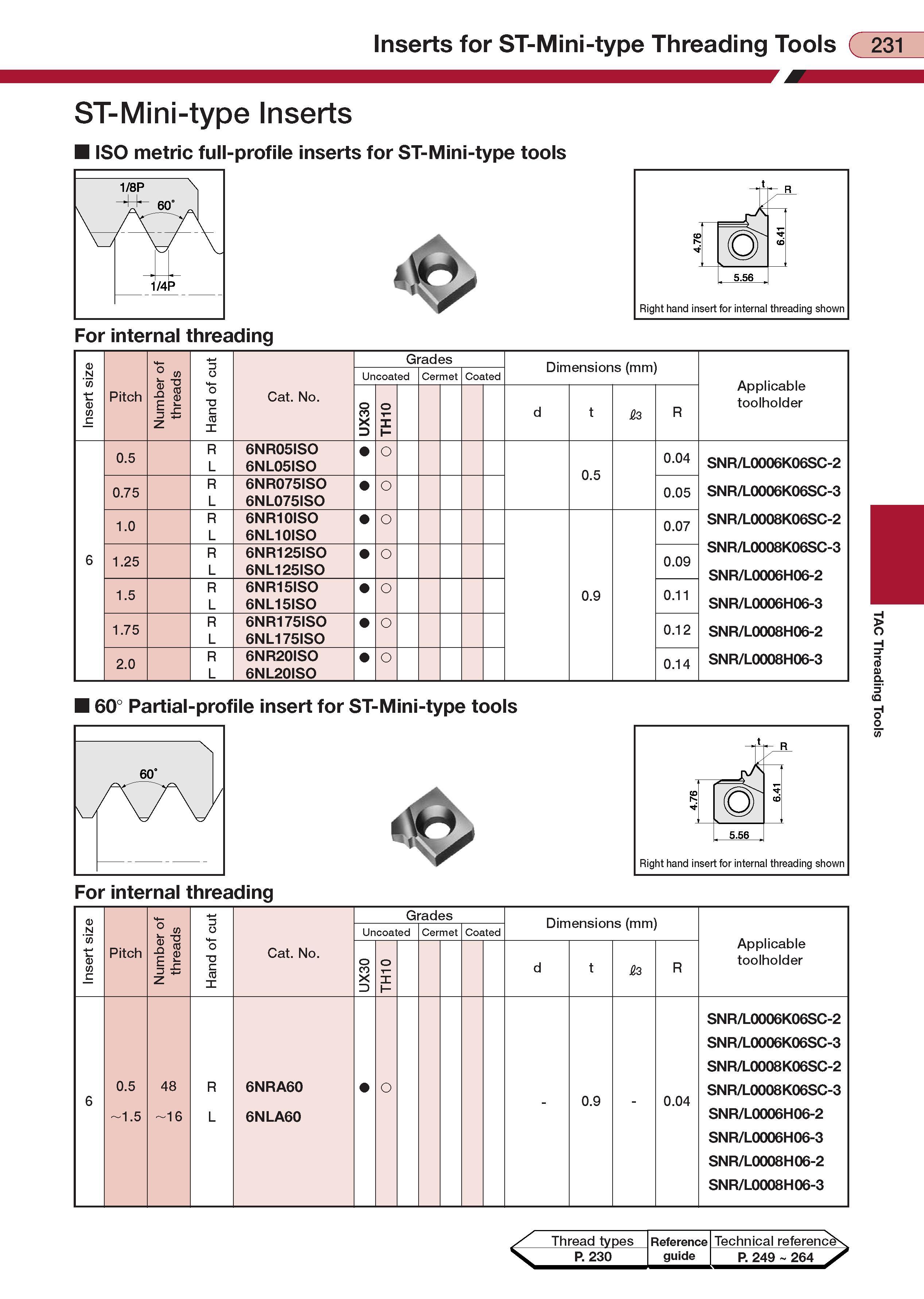

Threading Tools ST-Mini-type Inserts ISO metric full-profile inserts for ST-Mini-type tools For internal threading Insert size 0 er ds a fl -J N Hand of cut Grades Dimensions (mm) Uncoated Cermet Coated Applicable toolholder Pitch Cat. No. UX30 TH10 d t R3 R 0.5 R/L 6NR05ISO 6NL05ISO 0.5 0.04 SNR/L0006K06SC-2 0.75 R/L 6NR075ISO 6NL075ISO 0.05 SNR/L0006K06SC-3 1.0 R/L 6NR10ISO 6NL10ISO 0.07 SNR/L0008K06SC-2 SNR/L0008K06SC-3 SNR/L0006H06-2 SNR/L0006H06-3 6 1.25 R/L 6NR125ISO 6NL125ISO 0.09 1.5 RL 6NR15ISO 6NL15ISO 0.9 0.11 1.75 R/L 6NR175ISO 6NL175ISO 0.12 SNR/L0008H06-2 2.0 R/L 6NR20ISO 6NL20ISO 0.14 SNR/L0008H06-3 60 Partial-profile insert for ST-Mini-type tools For internal threading Pitch 0.5 1.5 n 10 f -J 48 16 c c ffl R/L Cat. No. 6NRA60 6NLA60 Grades Uncoated Cermet Coated Dimensions (mm) 0.9 R3 0.04 Applicable toolholder SNR/L0006K06SC-2 SNR/L0006K06SC-3 SNR/L0008K06SC-2 SNR/L0008K06SC-3 SNR/L0006H06-2 SNR/L0006H06-3 SNR/L0008H06-2 SNR/L0008H06-3 Thread types Reference Technical reference P. 230 guide P. 249 264 R 6 TAC Threading Tools
