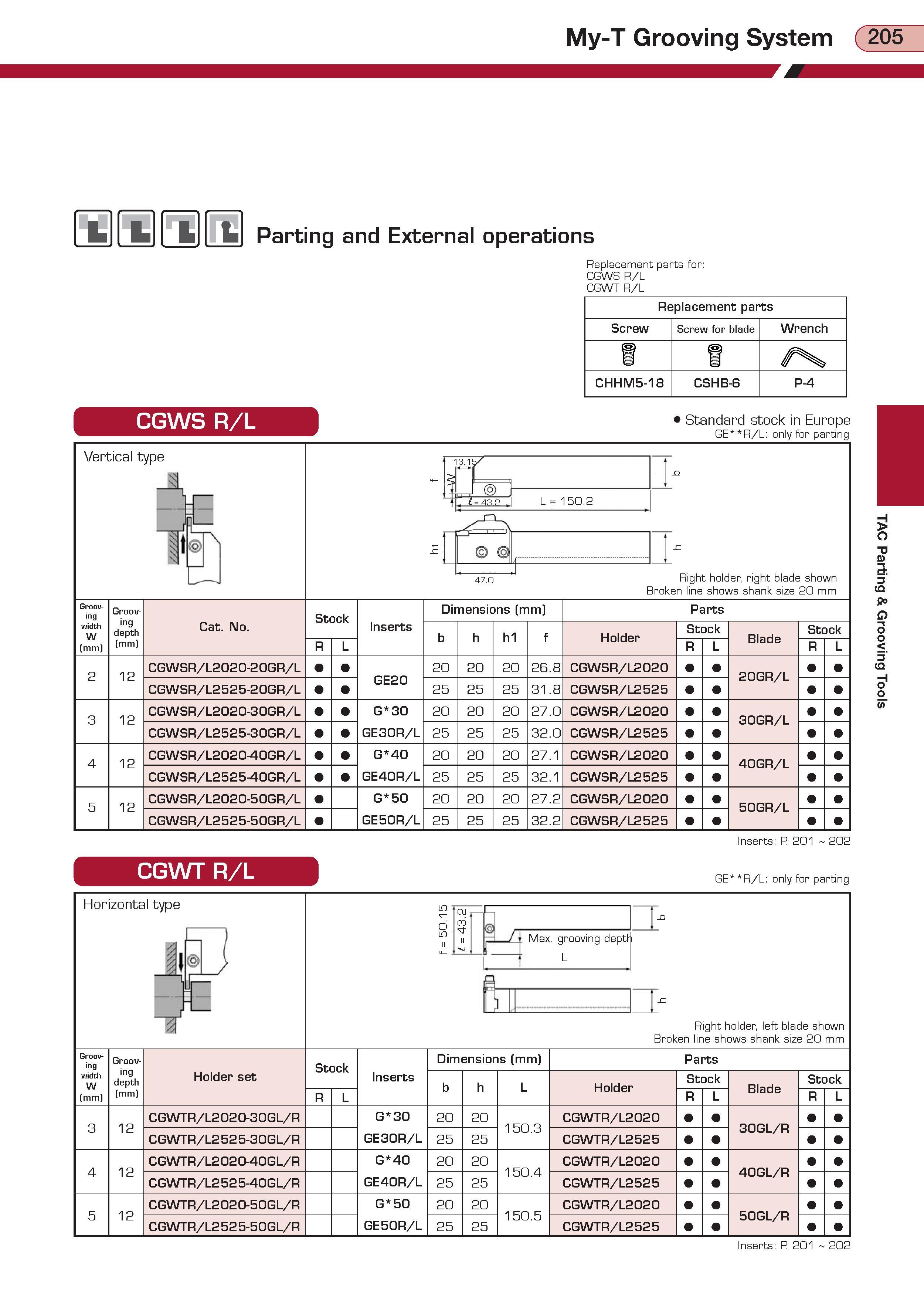

My-T Grooving System Parting and External operations Replacement parts for CGWS R/L CGWT R/L Replacement parts Screw Screw for blade Wrench X CHHM5-18 CSHB-6 P-4 CGWS R/L Standard stock in Europe GE R/L only for parting Vertical type 13.15 L 150.2 Right holder right blade shown Broken line shows shank size 20 mm Groov- ing width W (mm) Groov- ing depth (mm) Cat. No. Stock Inserts Dimensions (mm) Parts b h hi f Holder Stock Blade Stock R/L R/L R/L 2 12 CGWSR/L2020-20GR/L GE20 20 20 20 26.8 CGWSR/L2020 20GR/L CGWSR/L2525-20GR/L 25 25 25 31.8 CGWSR/L2525 3 12 CGWSR/L2020-30GR/L G 30 GE30R/L 20 20 20 27.0 CGWSR/L2020 30GR/L CGWSR/L2525-30GR/L 25 25 25 32.0 CGWSR/L2525 4 12 CGWSR/L2020-40GR/L G 40 GE40R/L 20 20 20 27.1 CGWSR/L2020 40GR/L CGWSR/L2525-40GR/L 25 25 25 32.1 CGWSR/L2525 5 12 CGWSR/L2020-50GR/L G 50 GE50R/L 20 20 20 27.2 CGWSR/L2020 50GR/L CGWSR/L2525-50GR/L 25 25 25 32.2 CGWSR/L2525 Inserts P 201 202 CGWT R/L GE R/L only for parting Horizontal type Max. grooving depth L Right holder left blade shown Broken line shows shank size 20 mm Groov- ing width W (mm) Groov- ing depth (mm) Holder set Stock Inserts Dimensions (mm) Parts b h L Holder Stock Blade Stock R/L R/L R/L 3 12 CGWTR/L2020-30GL R G 30 GE30R/L 20 20 150.3 CGWTR/L2020 30GL R CGWTR/L2525-30GL R 25 25 CGWTR/L2525 4 12 CGWTR/L2020-40GL R G 40 GE40R/L 20 20 150.4 CGWTR/L2020 40GL R CGWTR/L2525-40GL R 25 25 CGWTR/L2525 5 12 CGWTR/L2020-50GL R G 50 GE50R/L 20 20 150.5 CGWTR/L2020 50GL R CGWTR/L2525-50GL R 25 25 CGWTR/L2525 Inserts P. 201 202 TAC Parting Grooving Tools
