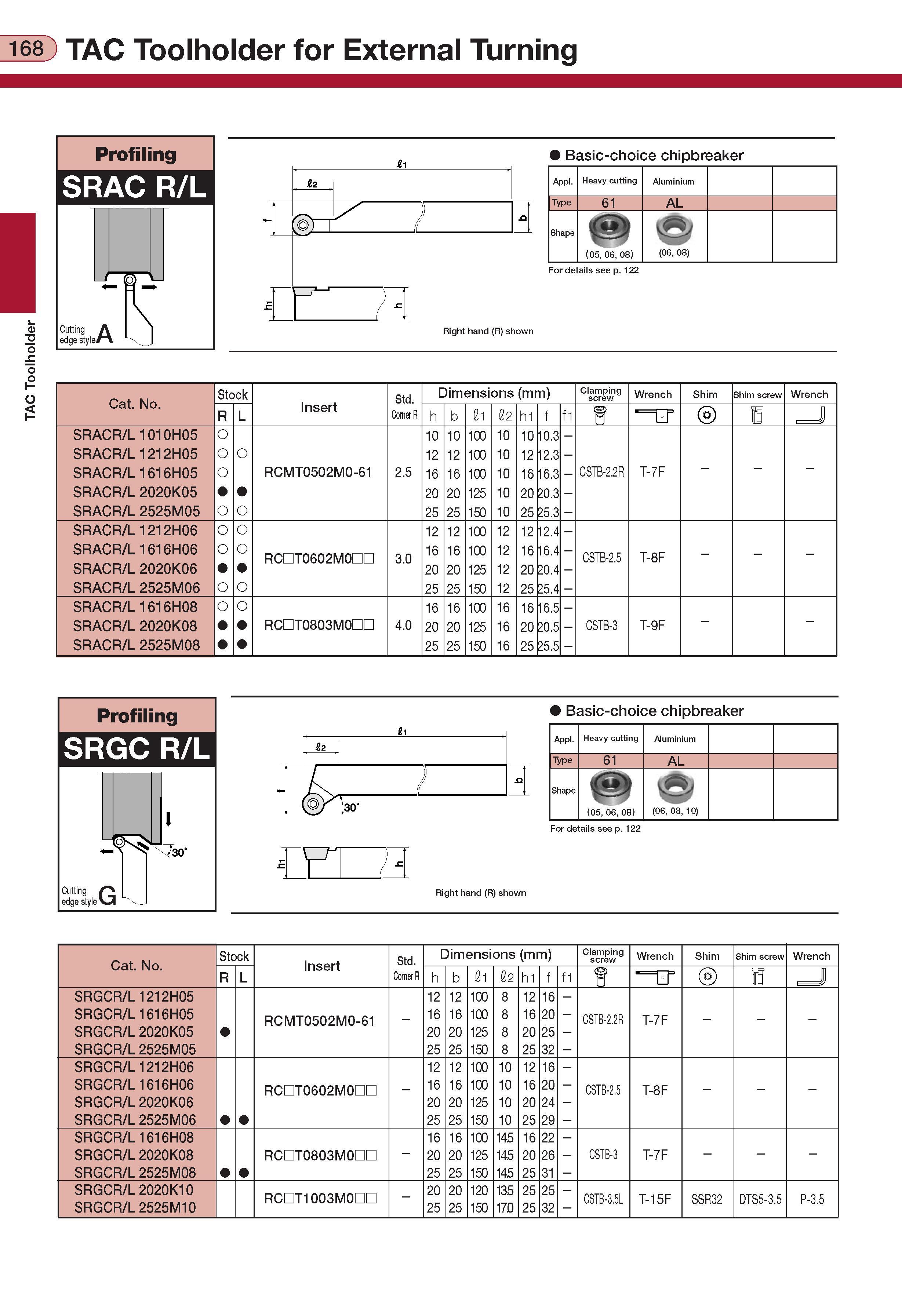

TAC Toolholder for External Turning Cat. No. Stock Insert Std. Corner R Dimensions (mm) Clamping screw Wrench Shim screw Wrench R/L h b 21 22 h1 f f1 f 1 J SRACR/L 1010H05 10 10 100 10 10 10.3 - SRACR/L 1212H05 12 12 100 10 12 12.3 - SRACR/L 1616H05 RCMT0502M0-61 2.5 16 16 100 10 16 16.3 - CSTB-2.2R T-7F - SRACR/L 2020K05 20 20 125 10 20 20.3 - SRACR/L 2525M05 25 25 150 10 25 25.3 - SRACR/L 1212H06 12 12 100 12 12 12.4 - SRACR/L 1616H06 RCDT0602M0C0 3.0 16 16 100 12 16 16.4 - CSTB-2.5 T-8F - SRACR/L 2020K06 20 20 125 12 20 20.4 - SRACR/L 2525M06 25 25 150 12 25 25.4 - SRACR/L 1616H08 SRACR/L 2020K08 SRACR/L 2525M08 RCDT0803M0DD 4.0 16 20 25 16 20 25 100 125 150 16 16 16 16 20 25 16.5 20.5 25.5 - CSTB-3 T-9F Profiling SRAC R/L Basic-choice chipbreaker Appl. Heavy cutting Aluminium Type 61 AL Shape (05 06 08) (06 08) For details see p. 122 Basic-choice chipbreaker Appl. Heavy cutting Aluminium Type 61 AL Shape (05 06 08) (06 08 10) For details see p. 122 Cat. No. Stock Insert Std. Corner R Dimensions (mm) Clamping screw Wrench Shim screw Wrench R/L h b 2l 22 h1 f f1 f E J SRGCR/L 1212H05 SRGCR/L 1616H05 SRGCR/L 2020K05 SRGCR/L 2525M05 RCMT0502M0-61 - 12 16 20 25 12 16 20 25 100 100 125 150 8 8 8 8 12 16 20 25 16 20 25 32 - CSTB-2.2R T-7F - SRGCR/L 1212H06 SRGCR/L 1616H06 SRGCR/L 2020K06 SRGCR/L 2525M06 RCDT0602M0H0 - 12 16 20 25 12 16 20 25 100 100 125 150 10 10 10 10 12 16 20 25 16 20 24 29 - CSTB-2.5 T-8F - SRGCR/L 1616H08 SRGCR/L 2020K08 SRGCR/L 2525M08 RCDT0803M0H0 - 16 20 25 16 20 25 100 125 150 14.5 14.5 14.5 16 20 25 22 26 31 - CSTB-3 T-7F - SRGCR/L 2020K10 SRGCR/L 2525M10 RCDT1003M0H0 - 20 25 20 25 120 150 13.5 170 25 25 25 32 - CSTB-3.5L T-15F SSR32 DTS5-3.5 P-3.5
