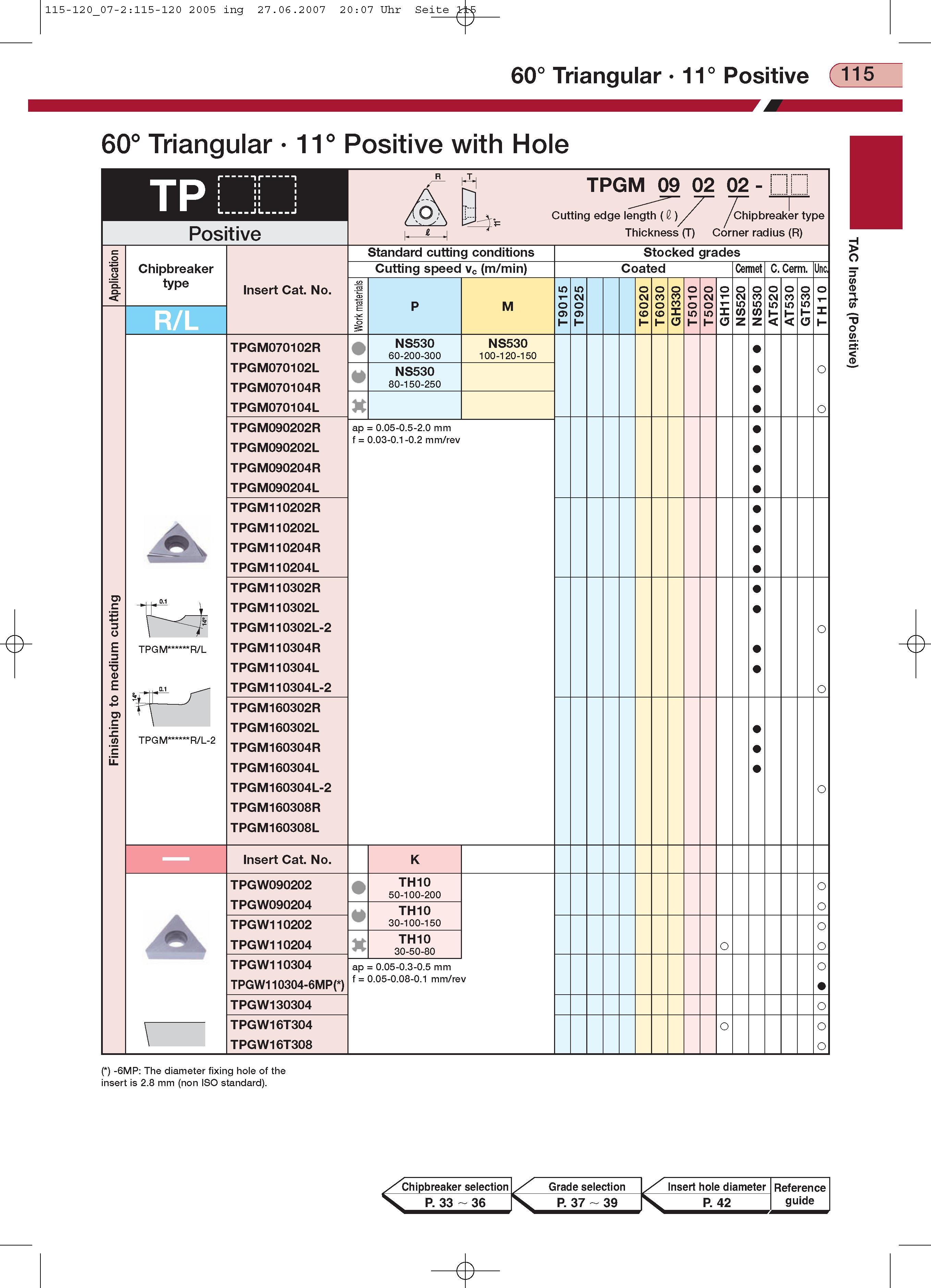

60 Triangular 11 Positive (115 60o Triangular 11 Positive with Hole TP Positive Chipbreaker type Insert Cat. No. R/L TPGM R/L TPGM R/L-2 TPGM070102R TPGM070102L TPGM070104R TPGM070104L TPGM090202R TPGM090202L TPGM090204R TPGM090204L TPGM110202R TPGM110202L TPGM110204R TPGM110204L TPGM110302R TPGM110302L TPGM110302L-2 TPGM110304R TPGM110304L TPGM110304L-2 TPGM160302R TPGM160302L TPGM160304R TPGM160304L TPGM160304L-2 TPGM160308R TPGM160308L Insert Cat. No. TPGW090202 TPGW090204 TPGW110202 TPGW110204 TPGW110304 TPGW110304-6MP( TPGW130304 TPGW16T304 TPGW16T308 TPGM 09 02 02 - Cutting edge length (2 ) Thickness (T) Chipbreaker type Corner radius (R) Standard cutting conditions Cutting speed vc (m/min) NS530 60-200-300 NS530 80-150-250 M NS530 100-120-150 ap 0.05-0.5-2.0 mm f 0.03-0.1-0.2 mm/rev K TH10 50-100-200 TH10 30-100-150 TH10 30-50-80 ap 0.05-0.3-0.5 mm f 0.05-0.08-0.1 mm/rev Stocked grades Coated Cermet C. Cerm. Unc. ( ) -6MP The diameter fixing hole of the insert is 2.8 mm (non ISO standard). n CP e CP e Chipbreaker selection Grade selection S Insert hole diameter Reference X P- 33 36 X P- 37 39 P- 42 guide -e- P
