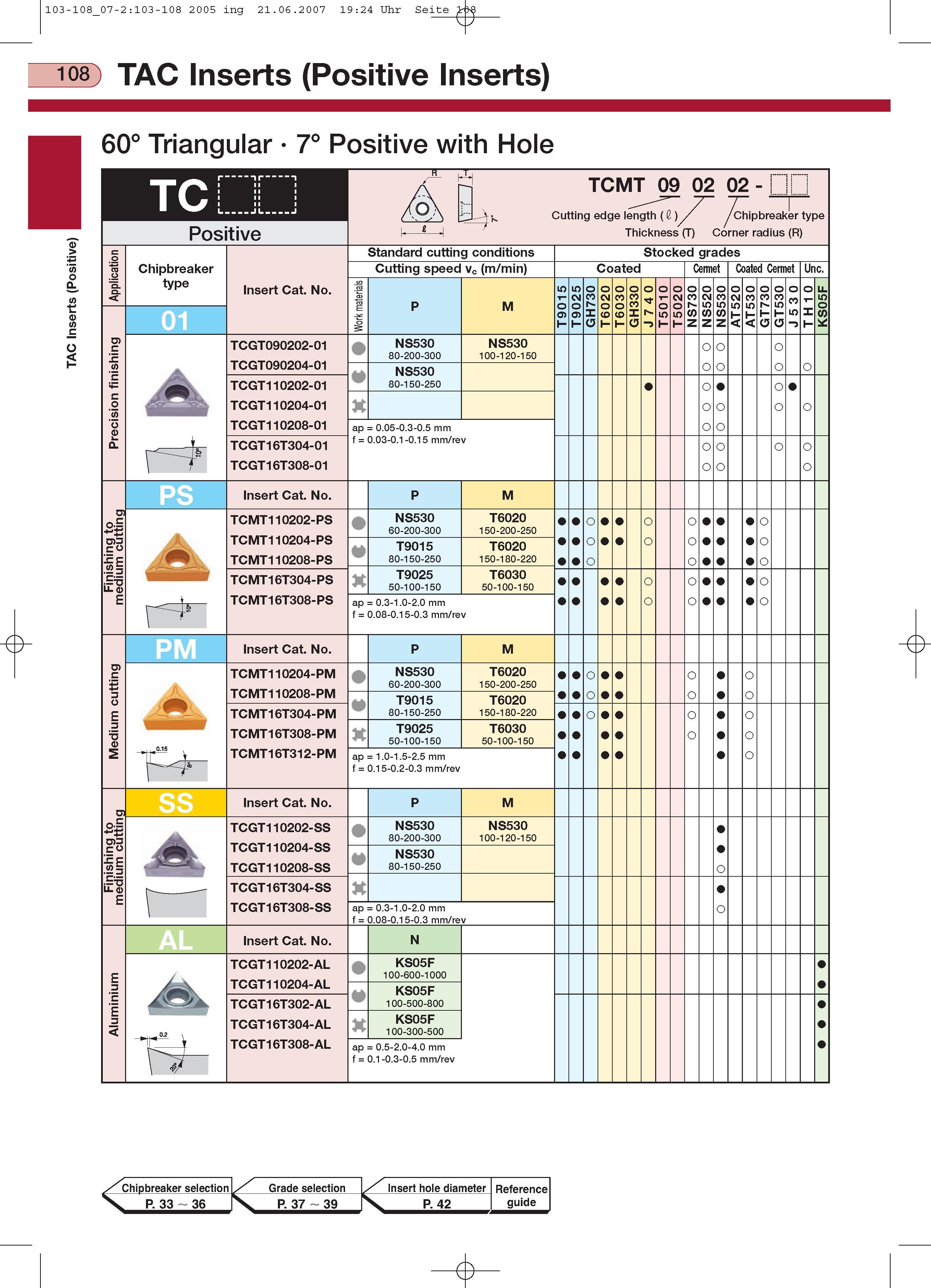

TAC Inserts (Positive Inserts) 60 Triangular 7 Positive with Hole e v s P e s In ing cu E TC Positive Chipbreaker type Insert Cat. No. TCGT090202-01 TCGT090204-01 TCGT110202-01 TCGT110204-01 TCGT110208-01 TCGT16T304-01 TCGT16T308-01 Insert Cat. No. TCMT110202-PS TCMT110204-PS TCMT110208-PS TCMT16T304-PS TCMT16T308-PS PM Insert Cat. No. TCMT110204-PM TCMT110208-PM TCMT16T304-PM TCMT16T308-PM TCMT16T312-PM Insert Cat. No. TCGT110202-SS TCGT110204-SS TCGT110208-SS TCGT16T304-SS TCGT16T308-SS AL Insert Cat. No. TCGT110202-AL TCGT110204-AL TCGT16T302-AL TCGT16T304-AL TCGT16T308-AL TCMT 09 02 02 - Cutting edge length (2 Thickness (T) Chipbreaker type Corner radius (R) Standard cutting conditions Cutting speed vc (m/min) ials ter at E or P M NS530 80-200-300 NS530 100-120-150 NS530 80-150-250 ap 0.05-0.3-0.5 mm f 0.03-0.1-0.15 mm/rev P M NS530 60-200-300 T6020 150-200-250 T9015 80-150-250 T6020 150-180-220 T9025 50-100-150 T6030 50-100-150 ap 0.3-1.0-2.0 mm f 0.08-0.15-0.3 mm/rev P M NS530 60-200-300 T6020 150-200-250 T9015 80-150-250 T6020 150-180-220 T9025 50-100-150 T6030 50-100-150 ap 1.0-1.5-2.5 mm f 0.15-0.2-0.3 mm/rev P M NS530 80-200-300 NS530 100-120-150 NS530 80-150-250 X ap 0.3-1.0-2.0 mm f 0.08-0.15-0.3 mm/rev N KS05F 100-600-1000 KS05F 100-500-800 X KS05F 100-300-500 ap 0.5-2.0-4.0 mm f 0.1-0.3-0.5 mm/rev Stocked grades Coated 10 Cermet Coated Cermet Unc. Chipbreaker selection Grade selection S Insert hole diameter Reference P. 33 36 X. P. 37 39 P. 42 guide -e-
