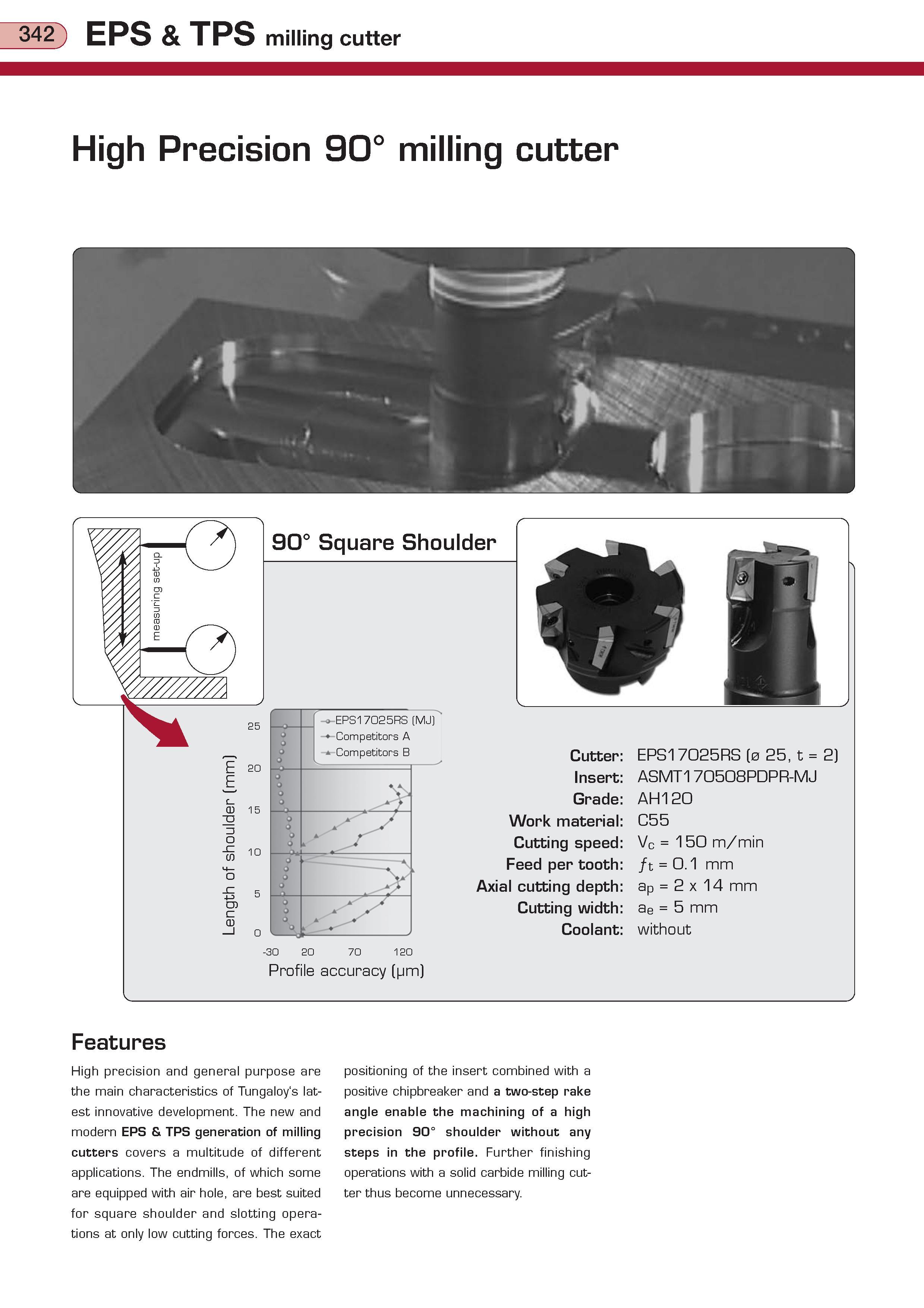

90 milling Tungaloy cutter Features High precision and general purpose are the main characteristics of Tungaloy's latest innovative development The new and346 Каталог TUNGALOY 2007 Режущий инструмент Точение Фрезерование Сверление Стр.342 |
|||||
90 milling Tungaloy cutter Features High precision and general purpose are the main characteristics of Tungaloy's latest innovative development The new and 90 milling Tungaloy cutter Features High precision and general purpose are the main characteristics of Tungaloy's latest innovative development. The new and modern EPS TPS generation of milling cutters covers a multitude of different applications. The endmills of which some are equipped with air hole are best suited for square shoulder and slotting operations at only low cutting forces. The exact positioning of the insert combined with a positive chipbreaker and a two-step rake angle enable the machining of a high precision 90 shoulder without any steps in the profile. Further finishing operations with a solid carbide milling cutter thus become unnecessary. EPS TPS milling cutter Square Shoulder O-EPS17025RS (MJ) - -Competitors A - -Competitors B -30 20 70 120 Profile accuracy (pm) Cutter Insert Grade Work material Cutting speed Feed per tooth Axial cutting depth Cutting width Coolant EPS17025RS (0 25 t 2) ASMT170508PDPR-MJ AH120 C55 Vc 150 m/min t 0.1 mm ap 2 x 14 mm ae 5 mm without High Precision |
|||||
