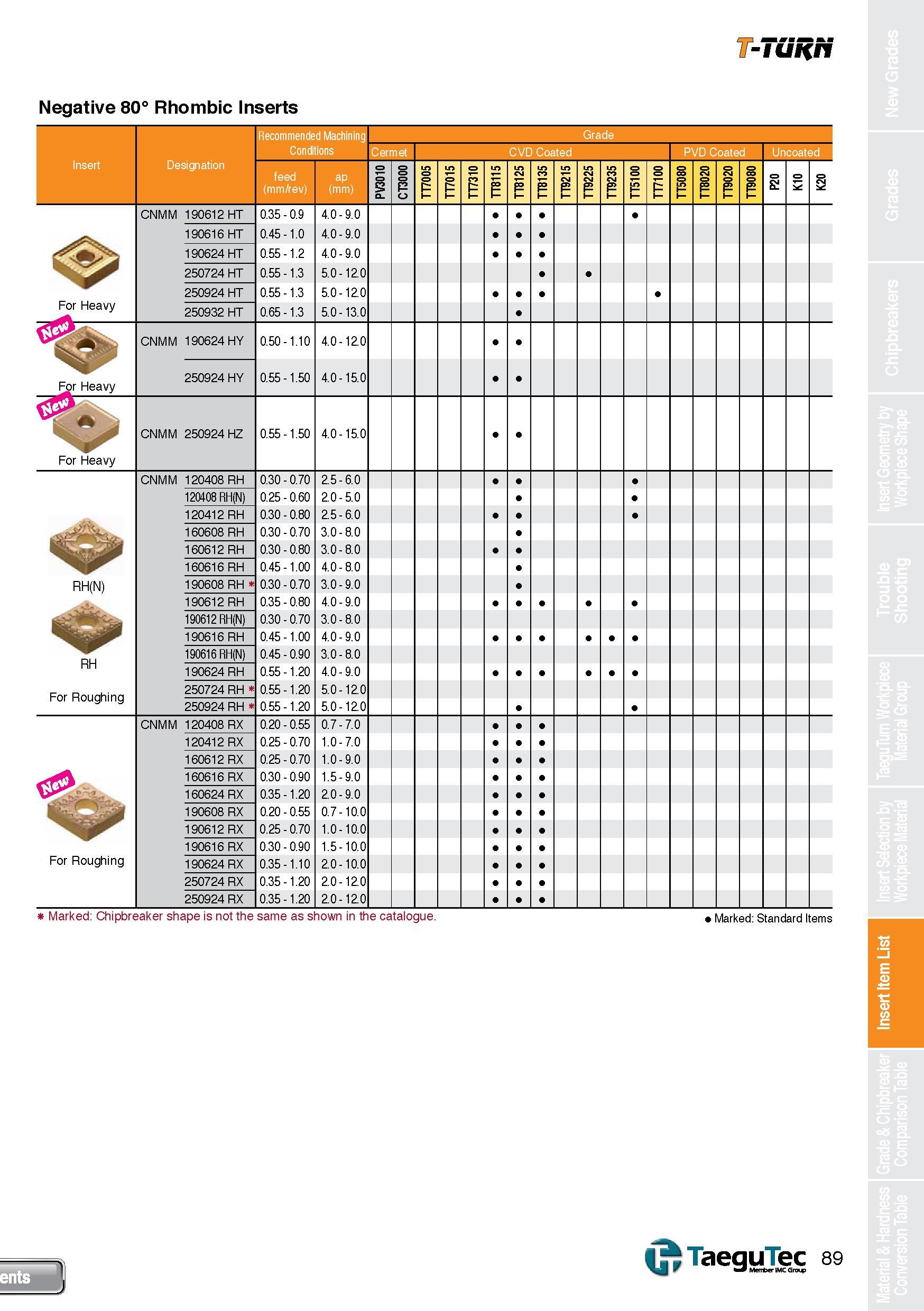

T-TURN Negative 80° Rhombic Inserts Recommended Machining Conditions Cermet Insert Designation feed (mm/rev) ap (mm) 1 P o F= p 2 For Heavy CNMM 190612 HT 0.35 - 0.9 4.0-9.0 190616 HT 0.45-1.0 4.0-9.0 190624 HT 0.55-1.2 4.0-9.0 250724 HT 0.55-1.3 5.0-12.0 250924 HT 0.55-1.3 5.0-12.0 250932 HT 0.65-1.3 5.0-13.0 For Heavy CNMM 190624 HY 0.50-1.10 4.0-12.0 250924 HY 0.55-1.50 4.0-15.0 For Heavy CNMM 250924 HZ 0.55-1.50 4.0-15.0 RH(N) RH For Roughing CNMM 120408 RH 0.30 - 0.70 2.5-6.0 120408 RH(N) 0.25 - 0.60 2.0-5.0 120412 RH 0.30 - 0.80 2.5-6.0 160608 RH 0.30 - 0.70 3.0-8.0 160612 RH 0.30 - 0.80 3.0-8.0 160616 RH 0.45-1.00 4.0-8.0 190608 RH 0.30 - 0.70 3.0-9.0 190612 RH 0.35 - 0.80 4.0-9.0 190612 RH(N) 0.30 - 0.70 3.0-8.0 190616 RH 0.45-1.00 4.0-9.0 190616 RH(N) 0.45 - 0.90 3.0-8.0 190624 RH 0.55-1.20 4.0-9.0 250724 RH 0.55-1.20 5.0-12.0 250924 RH 0.55-1.20 5.0-12.0 For Roughing CNMM 120408 RX 0.20 - 0.55 0.7-7.0 120412 RX 0.25 - 0.70 1.0-7.0 160612 RX 0.25 - 0.70 1.0-9.0 160616 RX 0.30 - 0.90 1.5-9.0 160624 RX 0.35-1.20 2.0-9.0 190608 RX 0.20 - 0.55 0.7-10.0 190612 RX 0.25 - 0.70 1.0-10.0 190616 RX 0.30 - 0.90 1.5-10.0 190624 RX 0.35-1.10 2.0-10.0 250724 RX 0.35-1.20 2.0-12.0 250924 RX 0.35-1.20 2.0-12.0 Marked: Chipbreaker shape is not the same as shown in the catalogue. Marked: Standard Items U" TaeguTec 89 W MeiTtjerlMCQroU) Insert Item List
