70 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.70

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 70 0070 ENG Lab2u

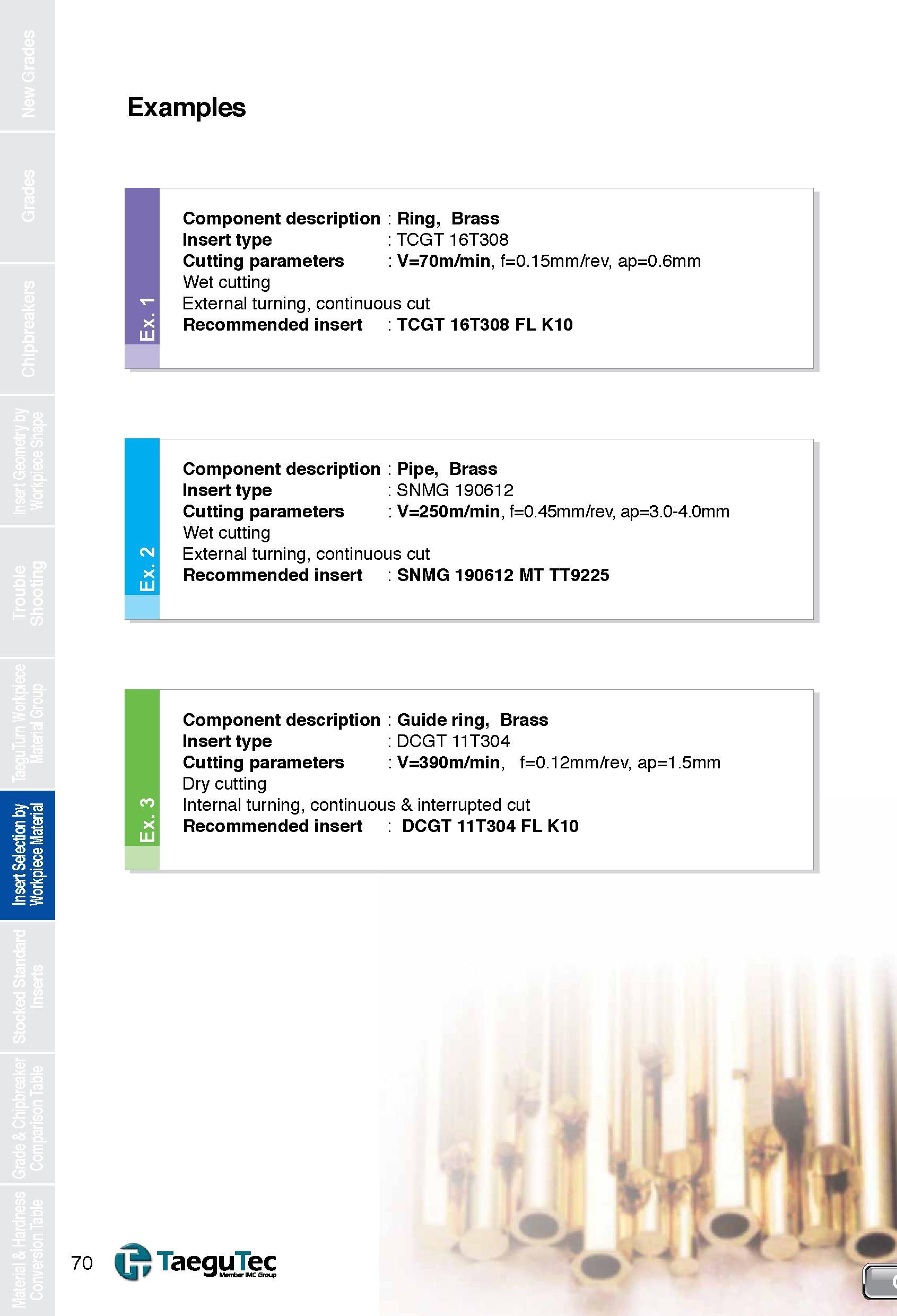

Examples I Component description Ring, Brass Insert type :TCGT16T308 Cutting parameters V=70m/min, f=0.15mm/rev, ap=0.6mm Wet cutting External turning, continuous cut Recommended insert TCGT 16T308 FL K10 Component description Pipe, Brass Insert type SNMG 190612 Cutting parameters V=250m/min, f=0.45mm/rev, ap=3.0-4.0mm Wet cutting External turning, continuous cut Recommended insert SNMG 190612 MT TT9225 CM >< LD Component description Guide ring, Brass Insert type DCGT 11T304 Cutting parameters :V=390m/min, f=0.12mm/rev, ap=1 5mm Dry cutting Internal turning, continuous & interrupted cut Recommended insert DCGT 11T304 FL K10 r U, TaeguTec W fc Men rlMCGron> ‘ I
