47 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.47

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 47 0047 ENG Lab2u

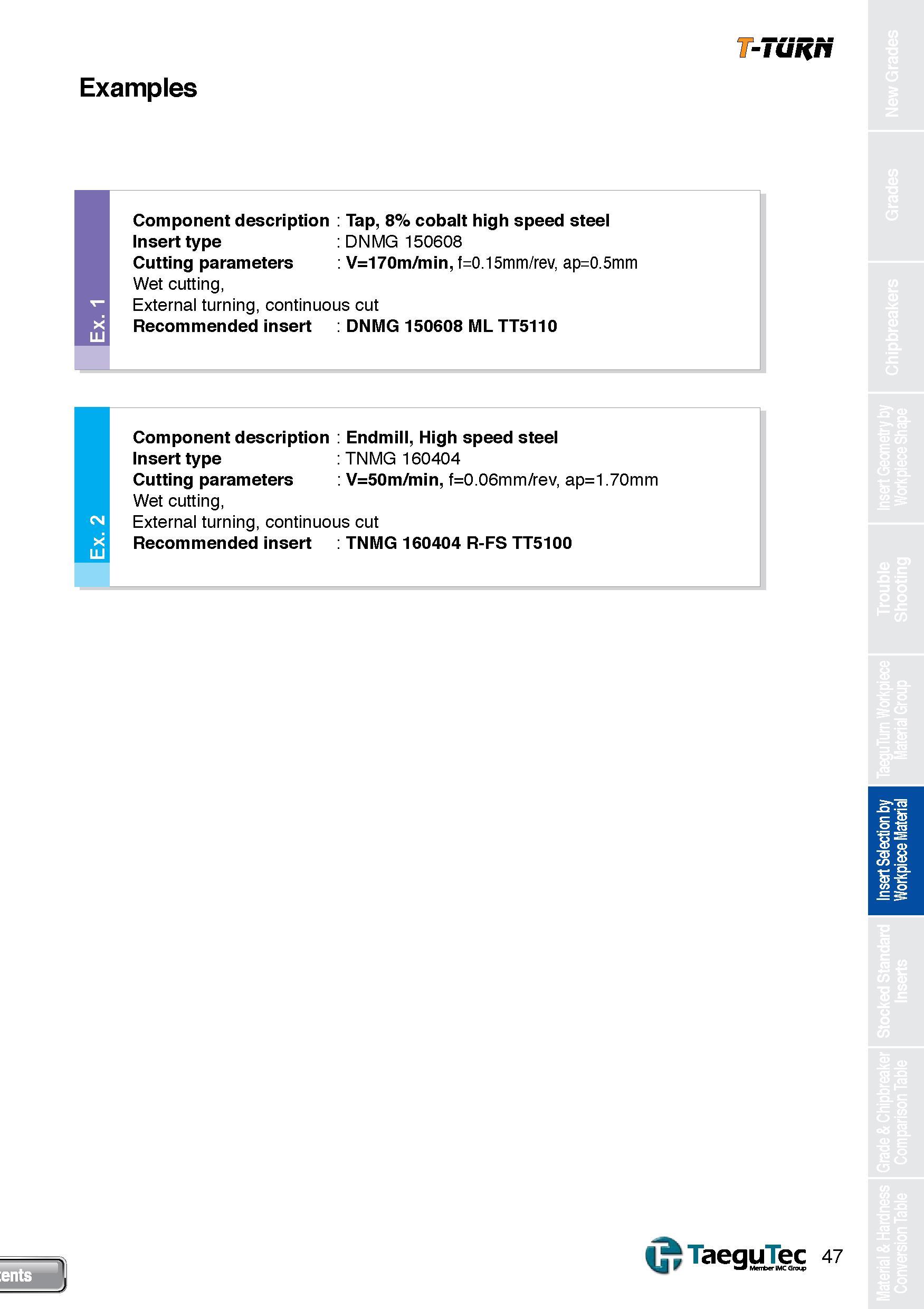

Examples T-TURN Component description Tap, 8% cobalt high speed steel Insert type DNMG 150608 Cutting parameters V=170m/min, f=0.15mm/rev, ap=0.5mm Wet cutting, External turning, continuous cut Recommended insert DNMG 150608 ML TT5110 Component description Endmill, High speed steel Insert type TNMG 160404 Cutting parameters V=50m/min, f=0.06mm/rev, ap=1.70mm Wet cutting, CM External turning, continuous cut X LU Recommended insert TNMG 160404 R-FS TT5100 U TaequTec 47 W MentjerlMCQron) Insert Selection by Workpiece Material
