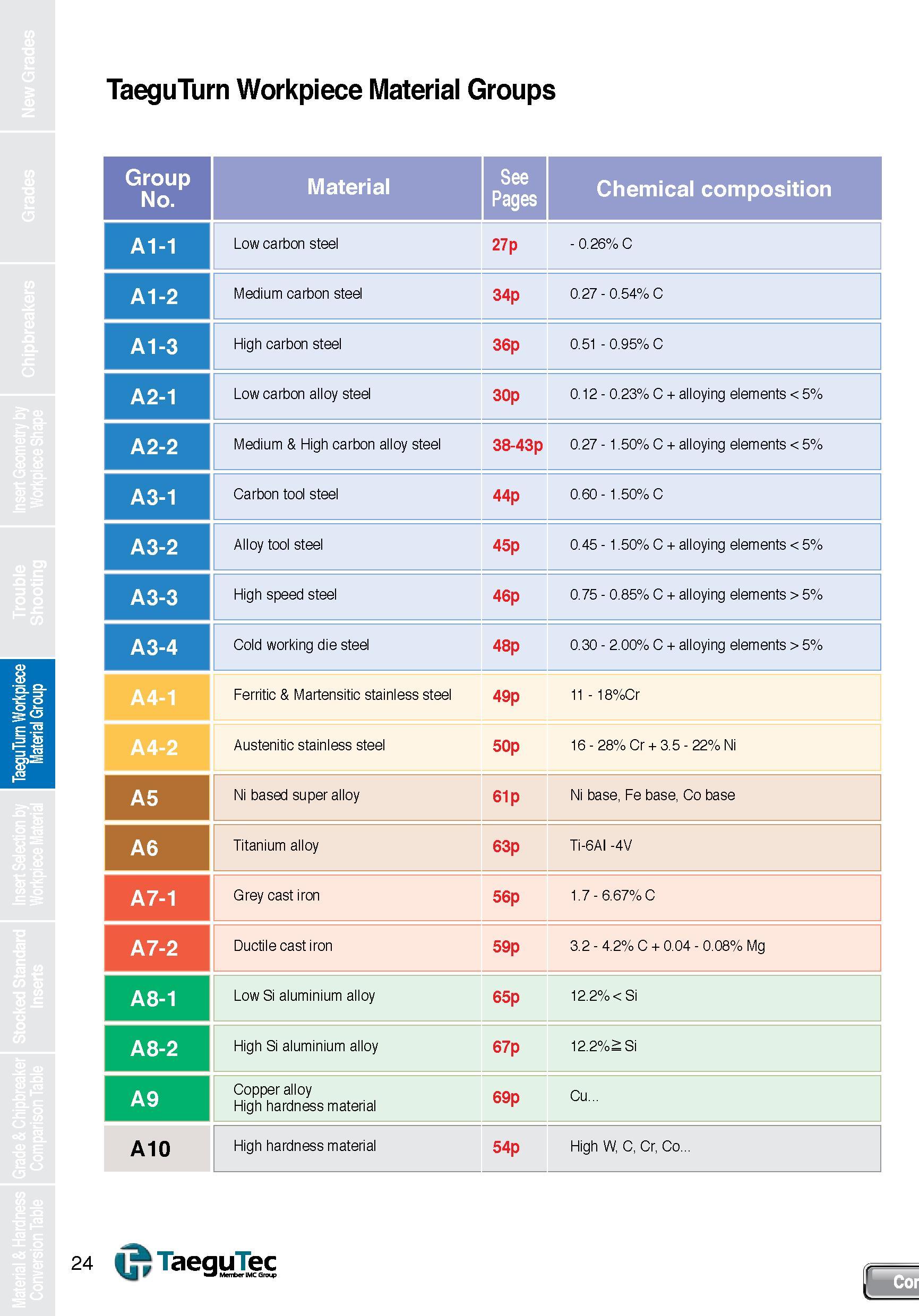

TaeguTurn Workpiece Material Group TaeguTurn Workpiece Material Groups Group No. Material See Pages Chemical composition A1-1 Low carbon steel 27 p - 0.26% C A1-2 Medium carbon steel 34p 0.27 - 0.54% C A1-3 High carbon steel 36p 0.51 - 0.95% C A2-1 Low carbon alloy steel 30p 0.12 - 0.23% C + alloying elements <5% A2-2 Medium & High carbon alloy steel 38-43p 0.27- 1.50% C + alloying elements < 5% A3-1 Carbon tool steel 44p 0.60- 1.50% C A3-2 Alloy tool steel 45p 0.45- 1.50% C + alloying elements < 5% A3-3 High speed steel 46p 0.75 - 0.85% C + alloying elements > 5% A3-4 Cold working die steel 48p 0.30 - 2.00% C + alloying elements > 5% A4-1 Ferritic & Martensitic stainless steel 49p 11 -18%Cr A4-2 Austenitic stainless steel 50p 16 - 28% Cr + 3.5 - 22% Ni A5 Ni based super alloy 61 p Ni base, Fe base, base A6 Titanium alloy 63p Ti-6AI -4V A7-1 Grey cast iron 56p 1.7-6.67% C A7-2 Ductile cast iron 59p 3.2 - 4.2% C + 0.04 - 0.08% Mg A8-1 Low Si aluminium alloy 65p 12.2% < Si A8-2 High Si aluminium alloy 67p 12.2%= Si A9 Copper alloy High hardness material 69p Cu... A10 High hardness material 54p High W, C, Cr, Co... 24 t TaeguTec V fc Men rlMCGron> Cor
