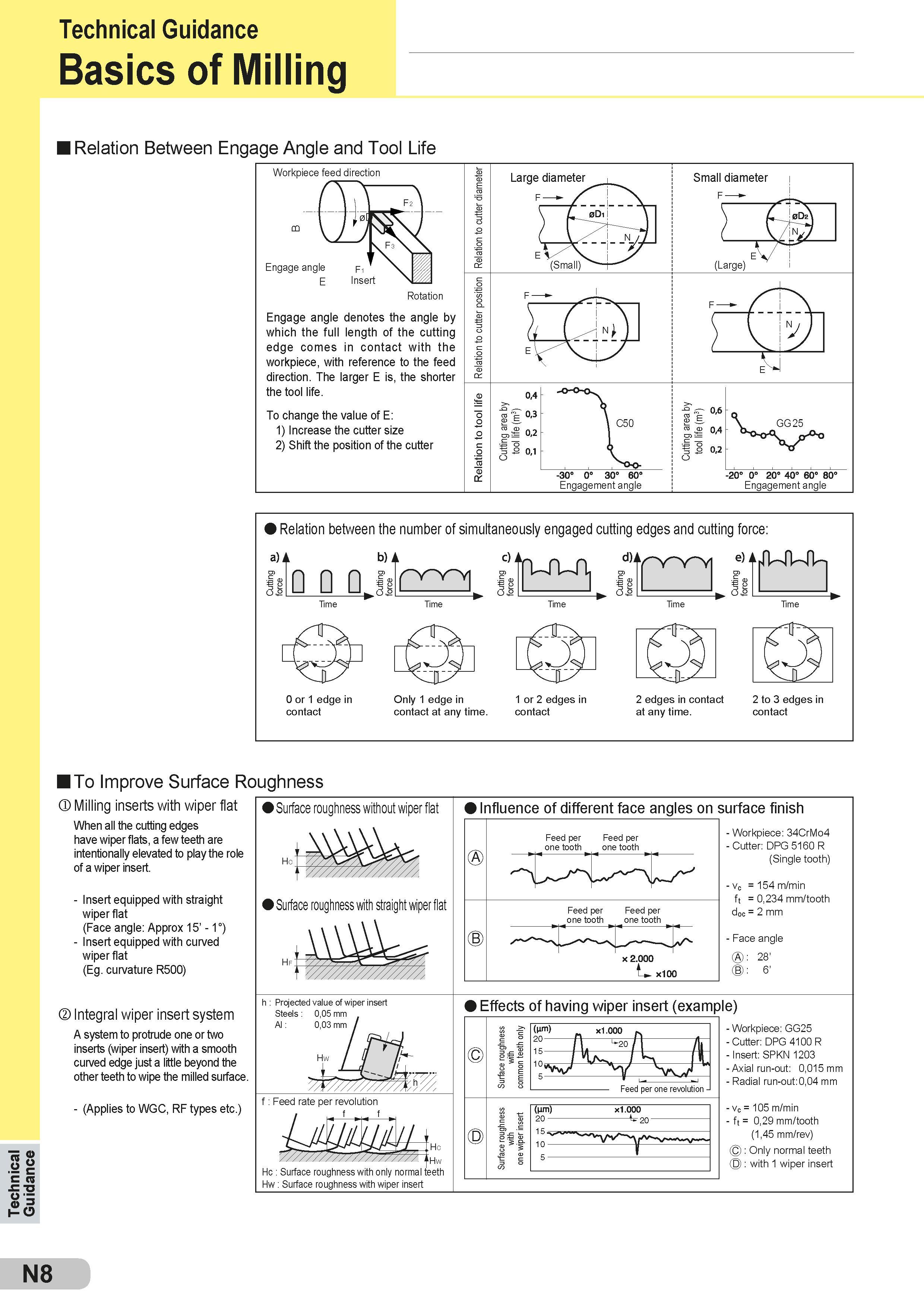

Technical Guidance Technical Guidance Basics of Milling Relation Between Engage Angle and Tool Life Workpiece feed direction Engage angle p, E Insert Rotation Engage angle denotes the angle by which the full length of the cutting edge comes in contact with the workpiece, with reference to the feed direction. The larger E is, the shorter the tool life. To change the Value of E: 1) Increase the cutter size 2) Shift the position of the cutter Large diameter F (Small) -30' 0° 30° 60° Engagement angle Small diameter (Large) 0,6 OA GG25 -20° 0° 20° 40° 60° 80° Engagement angle Relation between the number of simultaneously engaged cutting edges and cutting force: 0 or 1 edge in Only 1 edge in 1 or 2 edges in 2 edges in contact 2 to 3 edges in contact contact at any time. contact at any time. contact To ImproVe Surface Roughness Milling inserts with wiper flat When all the cutting edges have wiper flats, a few teeth are intentionally eleVated to play the role of a wiper insert. - Insert equipped with straight wiper flat (Face angle: Approx 15' - 1°) - Insert equipped with curVed wiper flat (Eg. curVature R500) Integral wiper insert system A system to protrude one or two inserts (wiper insert) with a smooth curVed edge just a little beyond the other teeth to wipe the milled surface. - (Applies to WGC, RF types etc.) Influence of different face angles on surface finish Feed per one tooth Feed per one tooth - Workpiece: 34CrMo4 - Cutter: DPG 5160 R (Single tooth) Feed per one tooth Feed per one tooth ft doc : 154 m/min 0,234 mm/tooth 2 mm x 2.000 'L- X100 - Face angle : 28' : 6' Effects of haVing wiper insert (example) Feed per one reVolution -1 - Workpiece: GG25 - Cutter: DPG 4100 R - Insert: SPKN 1203 - Axial run-out: 0,015 mm - Radial run-out: 0,04 mm - Vc = 105 m/min - ft = 0,29 mm/tooth (1,45 mm/reV) : Only normal teeth : with 1 wiper insert N8
