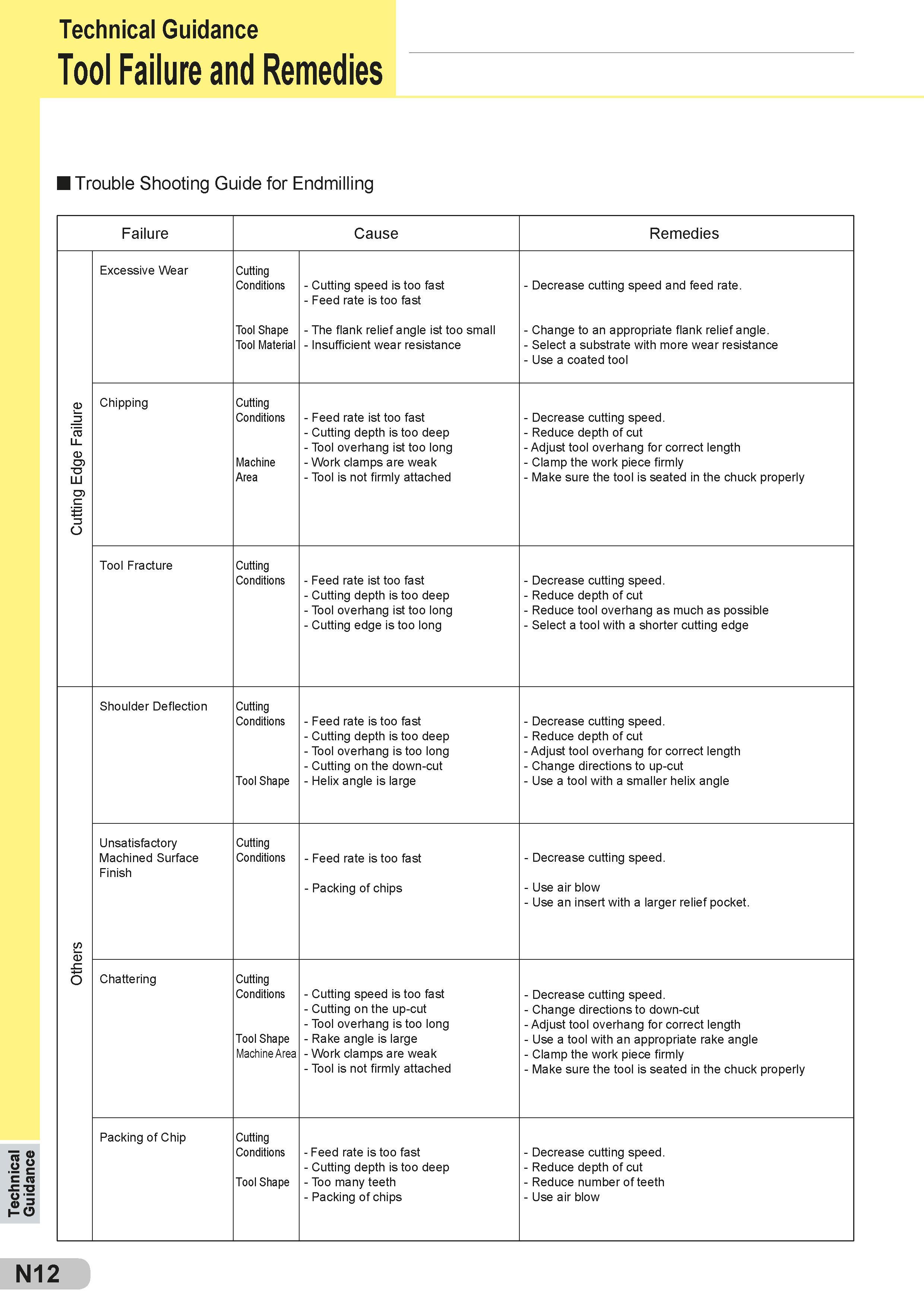

Technical Guidance Technical Guidance Tool Failure and Remedies Trouble Shooting Guide for Endmilling Failure Cause Remedies Cutting Edge Failure Excessive Wear Cutting Conditions Tool Shape Tool Material - Cutting speed is too fast - Feed rate is too fast - The flank relief angle ist too small - Insufficient wear resistance - Decrease cutting speed and feed rate. - Change to an appropriate flank relief angle. - Select a substrate with more wear resistance - Use a coated tool Chipping Cutting Conditions Machine Area - Feed rate ist too fast - Cutting depth is too deep - Tool overhang ist too long - Work clamps are weak - Tool is not firmly attached - Decrease cutting speed. - Reduce depth of cut - Adjust tool overhang for correct length - Clamp the work piece firmly - Make sure the tool is seated in the chuck properly Tool Fracture Cutting Conditions - Feed rate ist too fast - Cutting depth is too deep - Tool overhang ist too long - Cutting edge is too long - Decrease cutting speed. - Reduce depth of cut - Reduce tool overhang as much as possible - Select a tool with a shorter cutting edge Others Shoulder Deflection Cutting Conditions Tool Shape - Feed rate is too fast - Cutting depth is too deep - Tool overhang is too long - Cutting on the down-cut - Helix angle is large - Decrease cutting speed. - Reduce depth of cut - Adjust tool overhang for correct length - Change directions to up-cut - Use a tool with a smaller helix angle Unsatisfactory Machined Surface Finish Cutting Conditions - Feed rate is too fast - Packing of chips - Decrease cutting speed. - Use air blow - Use an insert with a larger relief pocket. Chattering Cutting Conditions Tool Shape Machine Area - Cutting speed is too fast - Cutting on the up-cut - Tool overhang is too long - Rake angle is large - Work clamps are weak - Tool is not firmly attached - Decrease cutting speed. - Change directions to down-cut - Adjust tool overhang for correct length - Use a tool with an appropriate rake angle - Clamp the work piece firmly - Make sure the tool is seated in the chuck properly Packing of Chip Cutting Conditions Tool Shape - Feed rate is too fast - Cutting depth is too deep - Too many teeth - Packing of chips - Decrease cutting speed. - Reduce depth of cut - Reduce number of teeth - Use air blow N12
