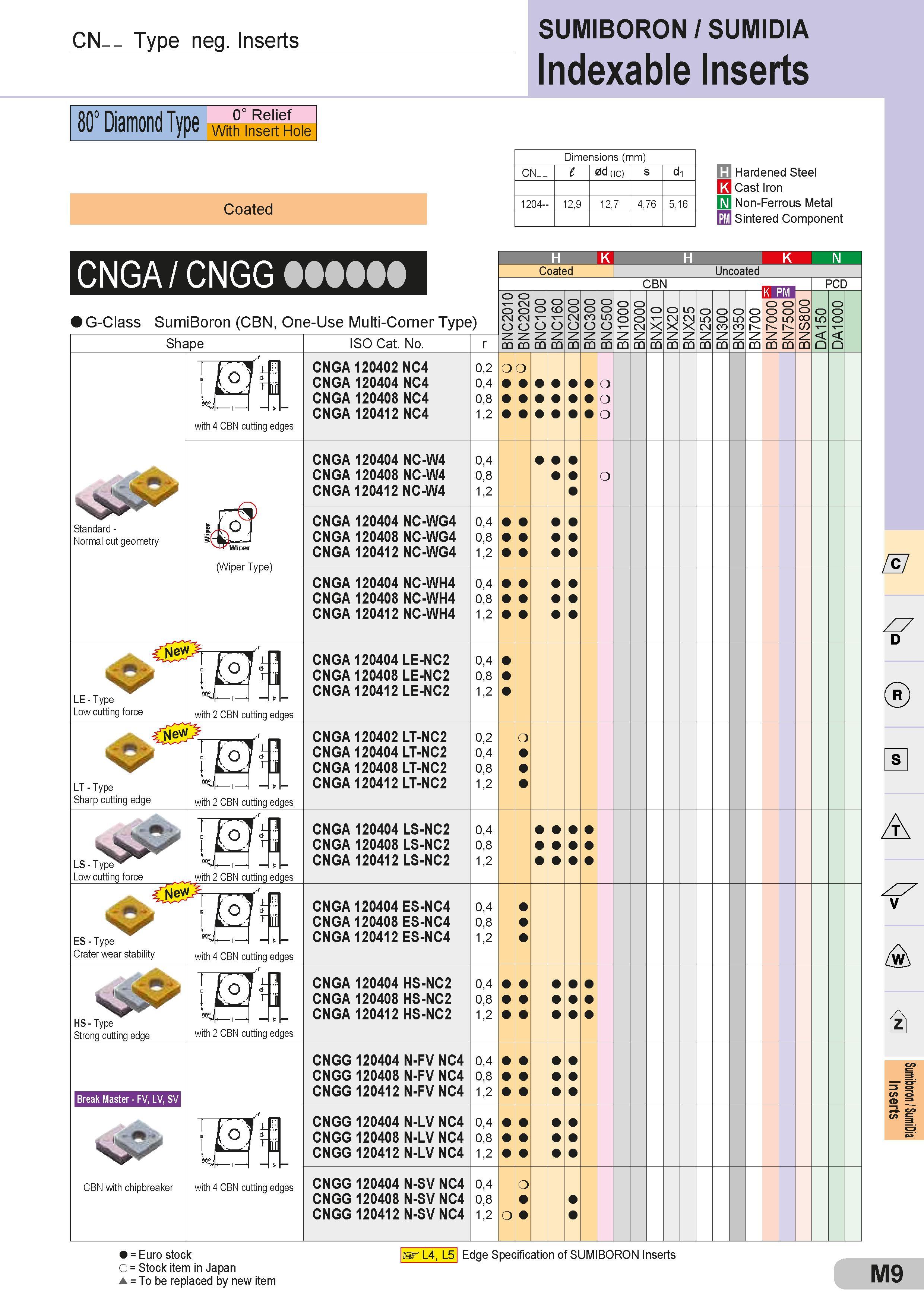

CN- - Type neg. Inserts SUMIBORON / SUMIDIA Indexable Inserts 80° Diamond Type 0° Relief With Insert Hole Coated Dimensions (mm) Размеры указаны в мм CN- - l 0d (ic) s d1 1204 12,9 12,7 4,76 5,16 Hardened Steel K Cast Iron Чугун Non-Ferrous Metal PM Sintered Component CNGA / CNGG G-Class SumiBoron (CBN, One-Use Multi-Corner Type) Shape ISO Cat. No. r Coated Uncoated CBN ° O CD O o 0 0 c Z Z Z Z kpM PCD o m o Q O Standard - Normal cut geometry with 4 CBN cutting edges CNGA 120402 NC4 0,2 CNGA 120404 NC4 0,4 CNGA 120408 NC4 0,8 CNGA 120412 NC4 1,2 CNGA 120404 NC-W4 0,4 CNGA 120408 NC-W4 0,8 CNGA 120412 NC-W4 1,2 CNGA 120404 NC-WG4 0,4 CNGA 120408 NC-WG4 0,8 CNGA 120412 NC-WG4 1,2 CNGA 120404 NC-WH4 0,4 CNGA 120408 NC-WH4 0,8 CNGA 120412 NC-WH4 1,2 o LE - Type Low cutting force with 2 CBN cutting edges CNGA 120404 LE-NC2 0,4 CNGA 120408 LE-NC2 0,8 CNGA 120412 LE-NC2 1,2 Zc7 Z7 D LT - Type Sharp cutting edge CNGA 120402 LT-NC2 0,2 CNGA 120404 LT-NC2 0,4 CNGA 120408 LT-NC2 0,8 CNGA 120412 LT-NC2 1,2 LS - Type Low cutting force ES - Type Crater wear stability CNGA 120404 LS-NC2 0,4 CNGA 120408 LS-NC2 0,8 CNGA 120412 LS-NC2 1,2 CNGA 120404 ES-NC4 0,4 CNGA 120408 ES-NC4 0,8 CNGA 120412 ES-NC4 1,2 with 4 CBN cutting edges HS - Type Strong cutting edge CNGA 120404 HS-NC2 0,4 CNGA 120408 HS-NC2 0,8 CNGA 120412 HS-NC2 1,2 with 2 CBN cutting edges Break Master - FV, LV, SV CNGG 120404 N-FV NC4 0,4 CNGG 120408 N-FV NC4 0,8 CNGG 120412 N-FV NC4 1,2 CNGG 120404 N-LV NC4 0,4 CNGG 120408 N-LV NC4 0,8 CNGG 120412 N-LV NC4 1,2 CBN with chipbreaker with 4 CBN cutting edges CNGG 120404 N-SV NC4 0,4 CNGG 120408 N-SV NC4 0,8 CNGG 120412 N-SV NC4 1,2 o K H K N = Euro stock O = Stock item in Japan s = To be replaced by new item L4, l5 Edge Specification of SUMIBORON Inserts M9
