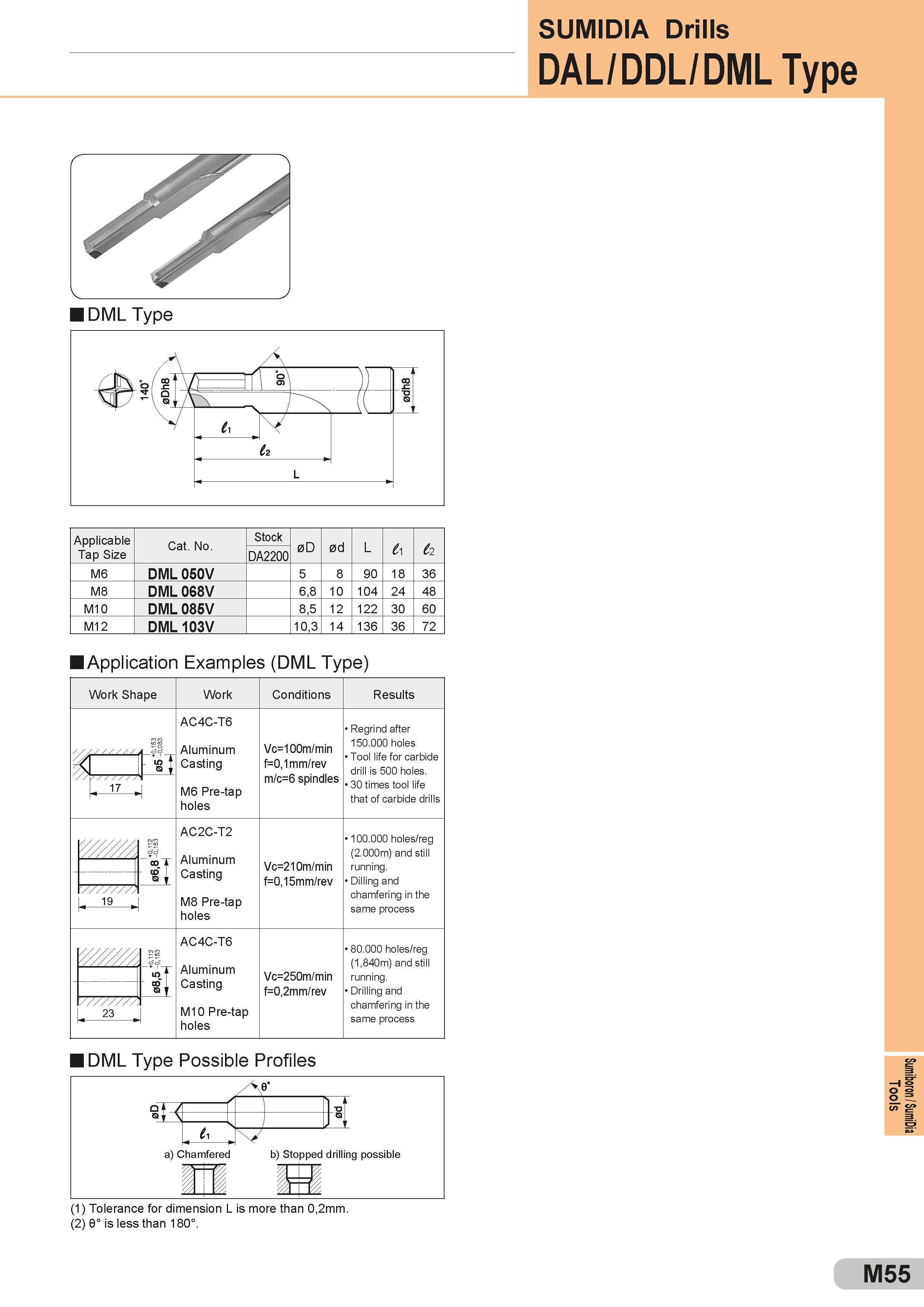

SUMIDIA Drills DAL/DDL/DML Type I DML Type Applicable Tap Size Cat. No. Stock 0D 0d L l1 fe DA2200 M6 DML 050V 5 8 90 18 36 M8 DML 068V 6,8 10 104 24 48 M10 DML 085V 8,5 12 122 30 60 M12 DML 103V 10,3 14 136 36 72 Application Examples (DML Type) Work Shape 17 It Work AC4C-T6 Aluminum Casting M6 Pre-tap holes Conditions Vc=100m/min f=0,1mm/rev m/c=6 spindles Results Regrind after 150.000 holes Tool life for carbide drill is 500 holes. 30 times tool life that of carbide drills - . 19 , . . of GO I Q I 23 AC2C-T2 Aluminum Casting M8 Pre-tap holes Vc=210m/min f=0,15mm/rev 100.000 holes/reg (2.000m) and still running. Dilling and chamfering in the same process AC4C-T6 Aluminum Casting M10 Pre-tap holes Vc=250m/min f=0,2mm/rev 80.000 holes/reg (1,840m) and still running. Drilling and chamfering in the same process I DML Type Possible Profiles (2) 0° is less than 180°. M55 Tools
