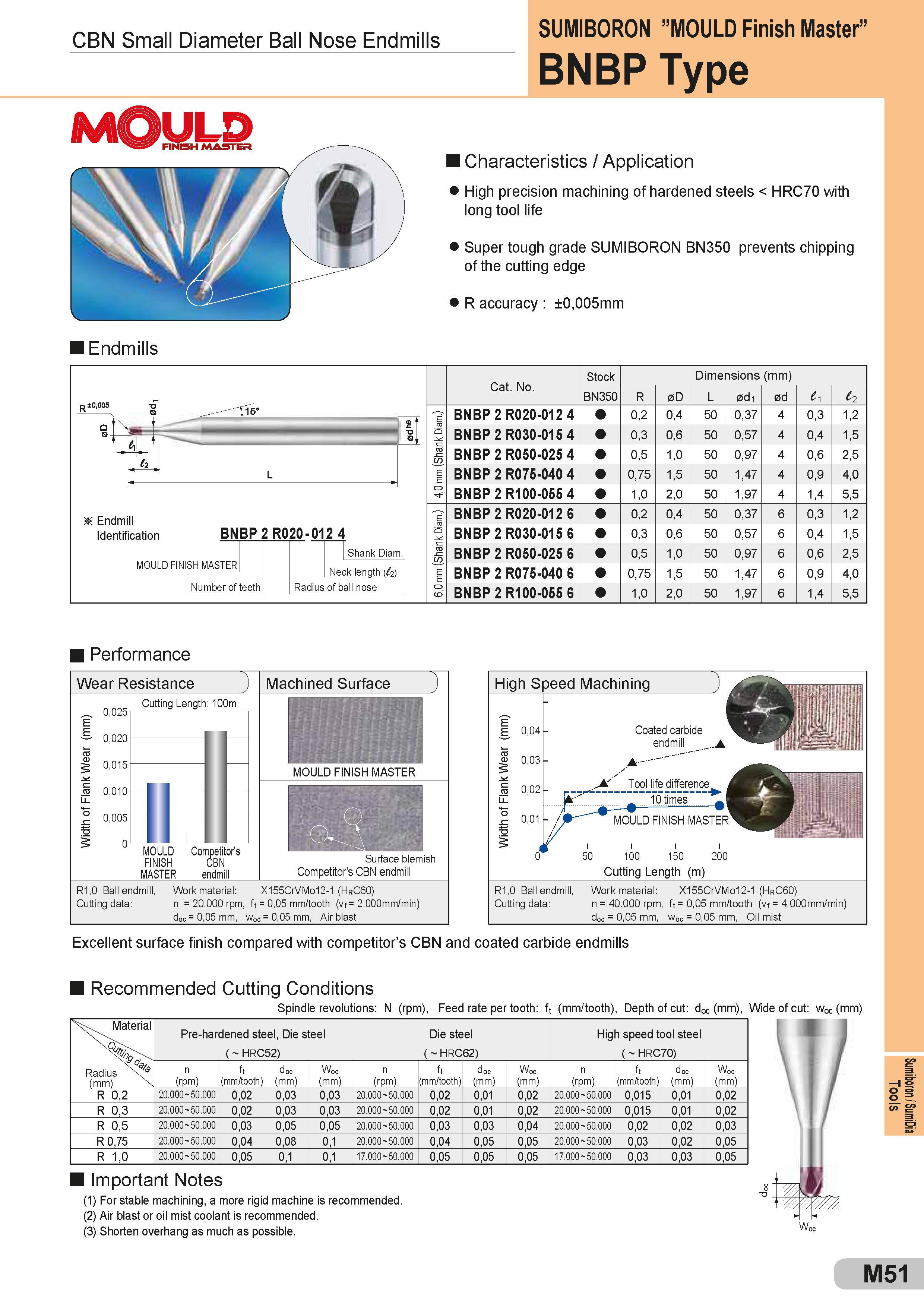

CBN Small Diameter Ball Nose Endmills SUMIBORON ’’MOULD Finish Master” BNBP Type MOULD Characteristics / Application High precision machining of hardened steels < HRC70 with long tool life Super tough grade SUMIBORON BN350 prevents chipping of the cutting edge R accuracy : ±0,005mm Endmills Cat. No. Stock Dimensions (mm) Размеры указаны в мм BN350 R 0D L 0di 0d 11 12 4,0 mm (Shank Diam.) BNBP 2 R020-012 4 0,2 0,4 50 0,37 4 0,3 1,2 BNBP 2 R030-015 4 0,3 0,6 50 0,57 4 0,4 1,5 BNBP 2 R050-025 4 0,5 1,0 50 0,97 4 0,6 2,5 BNBP 2 R075-040 4 0,75 1,5 50 1,47 4 0,9 4,0 BNBP 2 R100-055 4 1,0 2,0 50 1,97 4 1,4 5,5 am. Di nk a h (S m m ,0 CO BNBP 2 R020-012 6 0,2 0,4 50 0,37 6 0,3 1,2 BNBP 2 R030-015 6 0,3 0,6 50 0,57 6 0,4 1,5 BNBP 2 R050-025 6 0,5 1,0 50 0,97 6 0,6 2,5 BNBP 2 R075-040 6 0,75 1,5 50 1,47 6 0,9 4,0 BNBP 2 R100-055 6 1,0 2,0 50 1,97 6 1,4 5,5 5 ±0,005 -a h Endmill Identification MOULD BNBP 2 R020-012 4 FINISH MASTER Number of teeth Shank Diam. Neck length (fc) Radius of ball nose Performance Wear Resistance 0,025 0,020 0,015 0,010 0,005 0 Cutting Length: 100m m MOULD FINISH MASTER Competitor's CBN Machined Surface ) MOULD FINISH MASTER iumB Surface blemish Competitor’s CBN endmill R1,0 Ball endmill, Work material: X155CrVMo12-1 (HrC60) Cutting data: n = 20.000 rpm, ft = 0,05 mm/tooth (vf = 2.000mm/min) doc = 0,05 mm, Woc = 0,05 mm, Air blast 50 100 150 200 Cutting Length (m) R1,0 Ball endmill, Work material: X155CrVMo12-1 (HrC60) Cutting data: n = 40.000 rpm, ft = 0,05 mm/tooth (vf = 4.000mm/min) doc = 0,05 mm, Woc = 0,05 mm, Oil mist Excellent surface finish compared with competitor’s CBN and coated carbide endmills Recommended Cutting Conditions Spindle revolutions: N (rpm), Feed rate per tooth: ft (mm/ tooth), Depth of cut: doc (mm), Wide of cut: woc (mm) Material Radius' Pre-hardened steel, Die steel ( HRC52) Die steel ( HRC62) High speed tool steel ( HRC70) n ft doc Woc n ft doc Woc n ft doc Woc (mm) \ (rpm) (mm/tooth) (mm) (rpm) (mm/tooth) (mm) (rpm) (mm/tooth) (mm) R 0,2 20.000 50.000 0,02 0,03 0,03 20.000 50.000 0,02 0,01 0,02 2 0 CD CD 5 0 CD CD 0,015 0,01 0,02 R 0,3 20.000 50.000 0,02 0,03 0,03 20.000 50.000 0,02 0,01 0,02 2 0 CD CD 5 0 CD CD 0,015 0,01 0,02 R 0,5 20.000 50.000 0,03 0,05 0,05 20.000 50.000 0,03 0,03 0,04 2 0 CD CD 5 0 CD CD 0,02 0,02 0,03 R 0,75 20.000 50.000 0,04 0,08 0,1 20.000 50.000 0,04 0,05 0,05 2 0 CD CD 5 0 CD CD 0,03 0,02 0,05 R 1,0 20.000 50.000 0,05 0,1 0,1 17.000 50.000 0,05 0,05 0,05 7. 0 CD CD 5 0 CD CD 0,03 0,03 0,05 I Important Notes (1) For stable machining, a more rigid machine is recommended. (2) Air blast or oil mist coolant is recommended. (3) Shorten overhang as much as possible. Wo, M51 Tools
