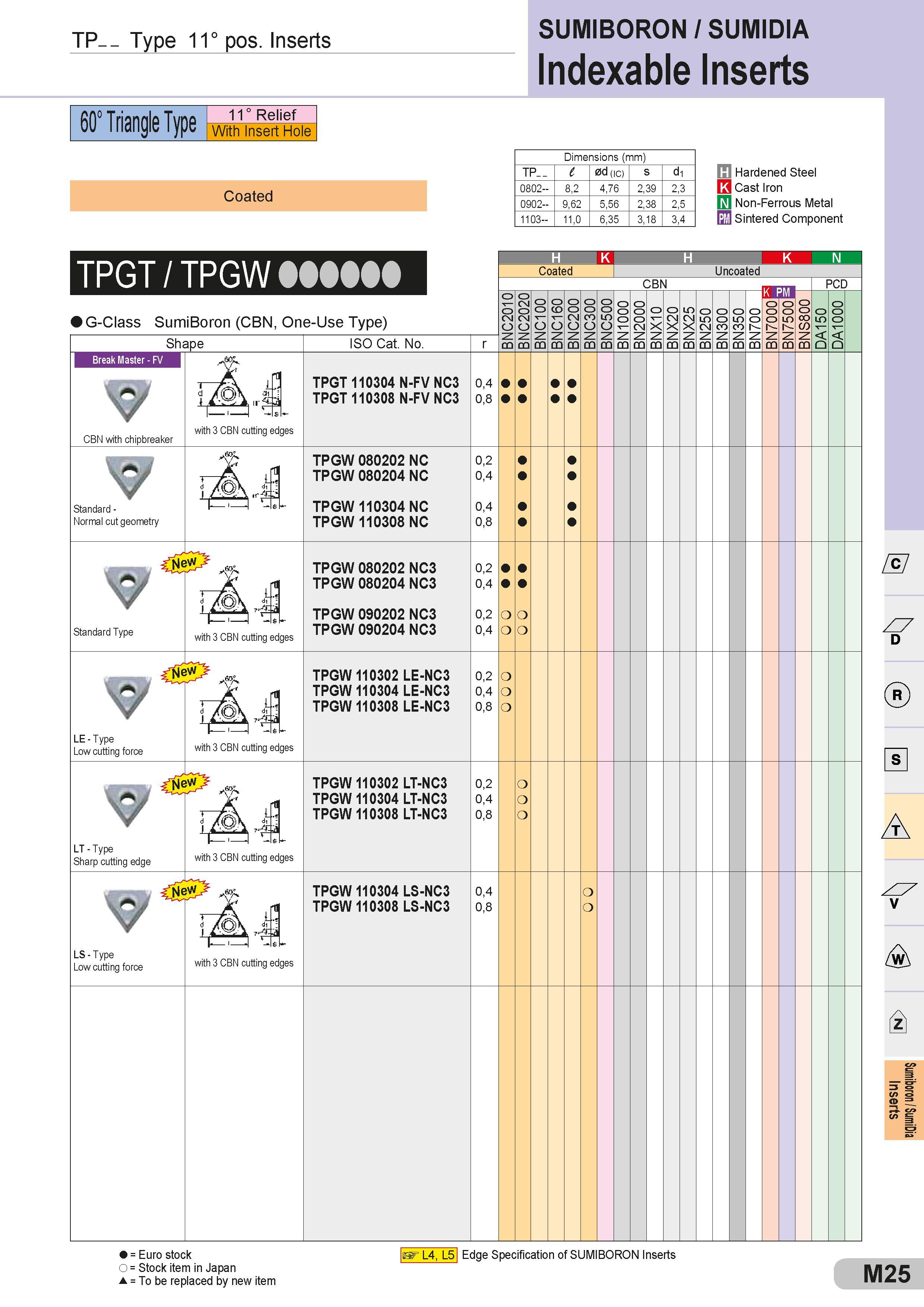

TP- - Type 11° pos. Inserts SUMIBORON / SUMIDIA Indexable Inserts 60° Triangle Type 11° Relief With Insert Hole Coated Dimensions (mm) Размеры указаны в мм TP l 0d (ic) s d1 0802 8,2 4,76 2,39 2,3 0902 9,62 5,56 2,38 2,5 1103 11,0 6,35 3,18 3,4 Hardened Steel K Cast Iron Чугун Non-Ferrous Metal PM Sintered Component TPGT / TPGW H K H K N 1 Coated Uncoated G-Class SumiBoron (CBN, One-Use Type) Shape Break Master - FV CBN with chipbreaker with 3 CBN cutting edges ISO Cat. No. TPGT 110304 N-FV NC3 0,4 TPGT 110308 N-FV NC3 0,8 CBN ° O CD O o ° ° c Z Z Z Z kpM PCD o m o O O Standard - Normal cut geometry TPGW 080202 NC 0,2 TPGW 080204 NC 0,4 TPGW 110304 NC 0,4 TPGW 110308 NC 0,8 Standard Type with 3 CBN cutting edges TPGW 080202 NC3 0,2 TPGW 080204 NC3 0,4 TPGW 090202 NC3 0,2 TPGW 090204 NC3 0,4 Zc7 Z7 D TPGW 110302 LE-NC3 0,2 TPGW 110304 LE-NC3 0,4 TPGW 110308 LE-NC3 0,8 LE - Type Low cutting force with 3 CBN cutting edges TPGW 110302 LT-NC3 0,2 TPGW 110304 LT-NC3 0,4 TPGW 110308 LT-NC3 0,8 LT - Type Sharp cutting edge with 3 CBN cutting edges LS - Type Low cutting force TPGW 110304 LS-NC3 0,4 TPGW 110308 LS-NC3 0,8 with 3 CBN cutting edges r = Euro stock O = Stock item in Japan s = To be replaced by new item L4, L5 Edge Specification of SUMIBORON Inserts M25
