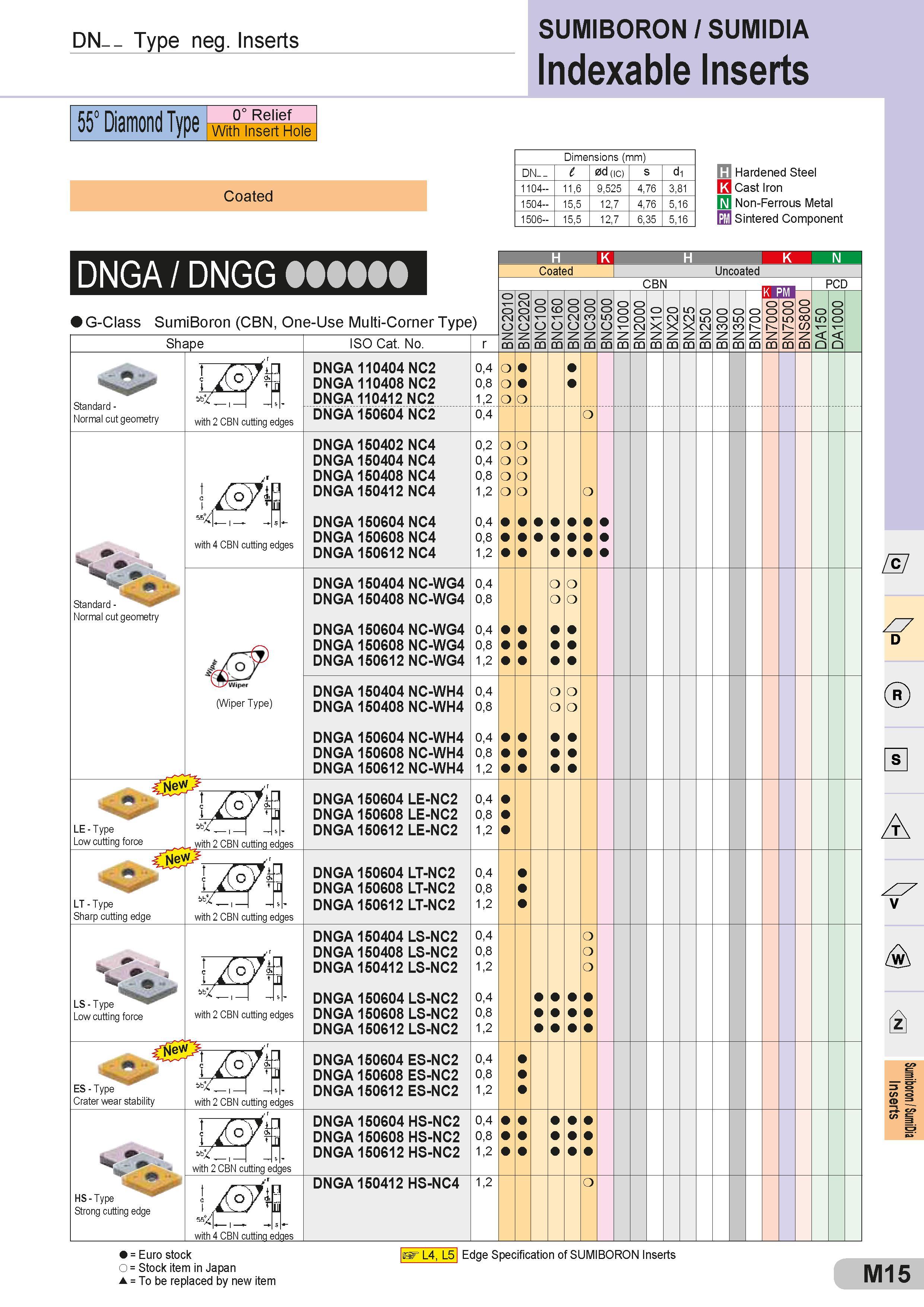

DN- - Type neg. Inserts SUMIBORON / SUMIDIA Indexable Inserts 55° Diamond Type 0° Relief With Insert Hole Coated Dimensions (mm) Размеры указаны в мм DN- - l 0d (ic) s d1 1104 11,6 9,525 4,76 3,81 1504 15,5 12,7 4,76 5,16 1506 1 5,5 12,7 6,35 5,16 Hardened Steel K Cast Iron Чугун Non-Ferrous Metal PM Sintered Component DNGA / DNGG G-Class SumiBoron (CBN, One-Use Multi-Corner Type) H K H K N 1 Coated Uncoated Shape ISO Cat. No. r CBN ° O CD O o 0 0 c Z Z Z Z kpM PCD o m o Q Q Standard - Normal cut geometry with 2 CBN cutting edges DNGA 110404 NC2 0,4 DNGA 110408 NC2 0,8 DNGA 110412 NC2 1,2 DNGA 150604 NC2 0,4 o with 4 CBN cutting edges DNGA 150402 NC4 0,2 DNGA 150404 NC4 0,4 DNGA 150408 NC4 0,8 DNGA 150412 NC4 1,2 DNGA 150604 NC4 0,4 DNGA 150608 NC4 0,8 DNGA 150612 NC4 1,2 o Standard -Normal cut geometry DNGA 150404 NC-WG4 0,4 DNGA 150408 NC-WG4 0,8 DNGA 150604 NC-WG4 0,4 DNGA 150608 NC-WG4 0,8 DNGA 150612 NC-WG4 1,2 DNGA 150404 NC-WH4 0,4 DNGA 150408 NC-WH4 0,8 DNGA 150604 NC-WH4 0,4 DNGA 150608 NC-WH4 0,8 DNGA 150612 NC-WH4 1,2 LE - Type Low cutting force with 2 CBN cutting edges DNGA 150604 LE-NC2 0,4 DNGA 150608 LE-NC2 0,8 DNGA 150612 LE-NC2 1,2 LT - Type Sharp cutting edge with 2 CBN cutting edges DNGA 150604 LT-NC2 0,4 DNGA 150608 LT-NC2 0,8 DNGA 150612 LT-NC2 1,2 Zc7 Z7 D LS - Type Low cutting force with 2 CBN cutting edges DNGA 150404 LS-NC2 0,4 DNGA 150408 LS-NC2 0,8 DNGA 150412 LS-NC2 1,2 DNGA 150604 LS-NC2 0,4 DNGA 150608 LS-NC2 0,8 DNGA 150612 LS-NC2 1,2 ES - Type Crater wear stability “5c, with 2 CBN cutting edges DNGA 150604 ES-NC2 0,4 DNGA 150608 ES-NC2 0,8 DNGA 150612 ES-NC2 1,2 with 2 CBN cutting edges DNGA 150604 HS-NC2 0,4 DNGA 150608 HS-NC2 0,8 DNGA 150612 HS-NC2 1,2 HS - Type Strong cutting edge “M , 4 with 4 CBN cutting edges DNGA 150412 HS-NC4 1,2 o = Euro stock O = Stock item in Japan s = To be replaced by new item L4, L5 Edge Specification of SUMIBORON Inserts M15
