478 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.L6

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. L6 0478 Lab2u

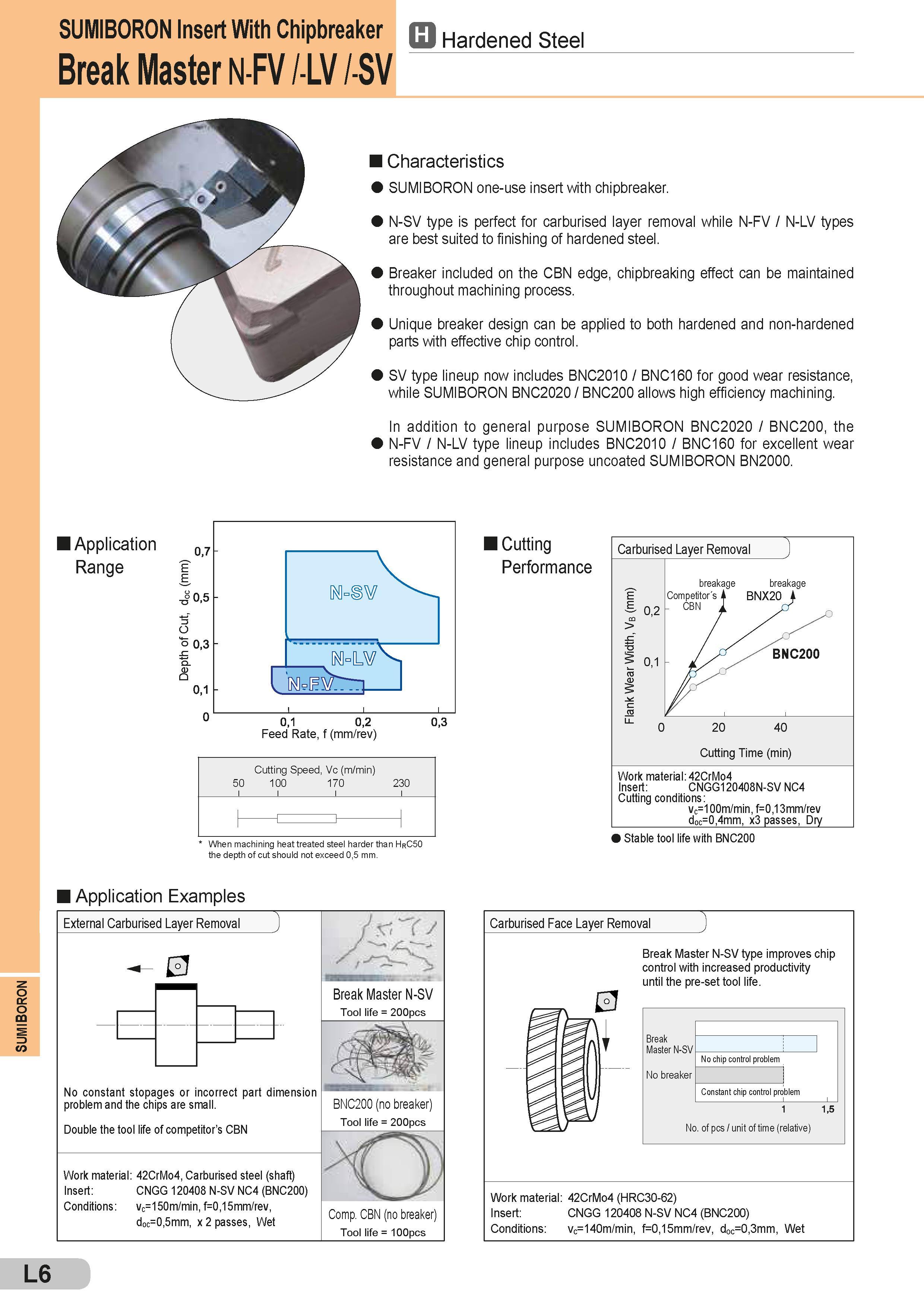

SUMIBORON SUMIBORON Insert With Chipbreaker p Hardened Steel Break Master N-FV /- LV /-SV Characteristics SUMIBORON one-use insert with chipbreaker. N-SV type is perfect for carburised layer removal while N-FV / N-LV types are best suited to finishing of hardened steel. Breaker included on the CBN edge, chipbreaking effect can be maintained throughout machining process. Unique breaker design can be applied to both hardened and non-hardened parts with effective chip control. SV type lineup now includes BNC2010 / BNC160 for good wear resistance, while SUMIBORON BNC2020 / BNC200 allows high efficiency machining. In addition to general purpose SUMIBORON BNC2020 / BNC200, the N-FV / N-LV type lineup includes BNC2010 / BNC160 for excellent wear resistance and general purpose uncoated SUMIBORON BN2000. I Application Range Cutting Speed, Vc (m/min) 50 100 170 230 l l l l I Cutting Performance When machining heat treated steel harder than HrC50 the depth of cut should not exceed 0,5 mm. > Stable tool life with BNC200 Application Examples External Carburised Layer Removal - 0 No constant stopages or incorrect part dimension problem and the chips are small. Double the tool life of competitor's CBN Work material: 42CrMo4, Carburised steel (shaft) Insert: CNGG 120408 N-SV NC4 (BNC200) Conditions: vc=150m/min, f=0,15mm/rev, doc=0,5mm, x 2 passes, Wet Break Master N-SV Tool life = 200pcs BNC200 (no breaker) Tool life = 200pcs Comp. CBN (no breaker) Tool life = 100pcs Carburised Face Layer Removal Break Master N-SV type improves chip control with increased productivity until the pre-set tool life. Break Master N-SV No breaker No chip control problem Constant chip control problem 1 1,5 No. of pcs / unit of time (relative) Work material: 42CrMo4 (HRC30-62) Insert: CNGG 120408 N-SV NC4 (BNC200) Conditions: vc=140m/min, f=0,15mm/rev, doc=0,3mm, Wet L6
