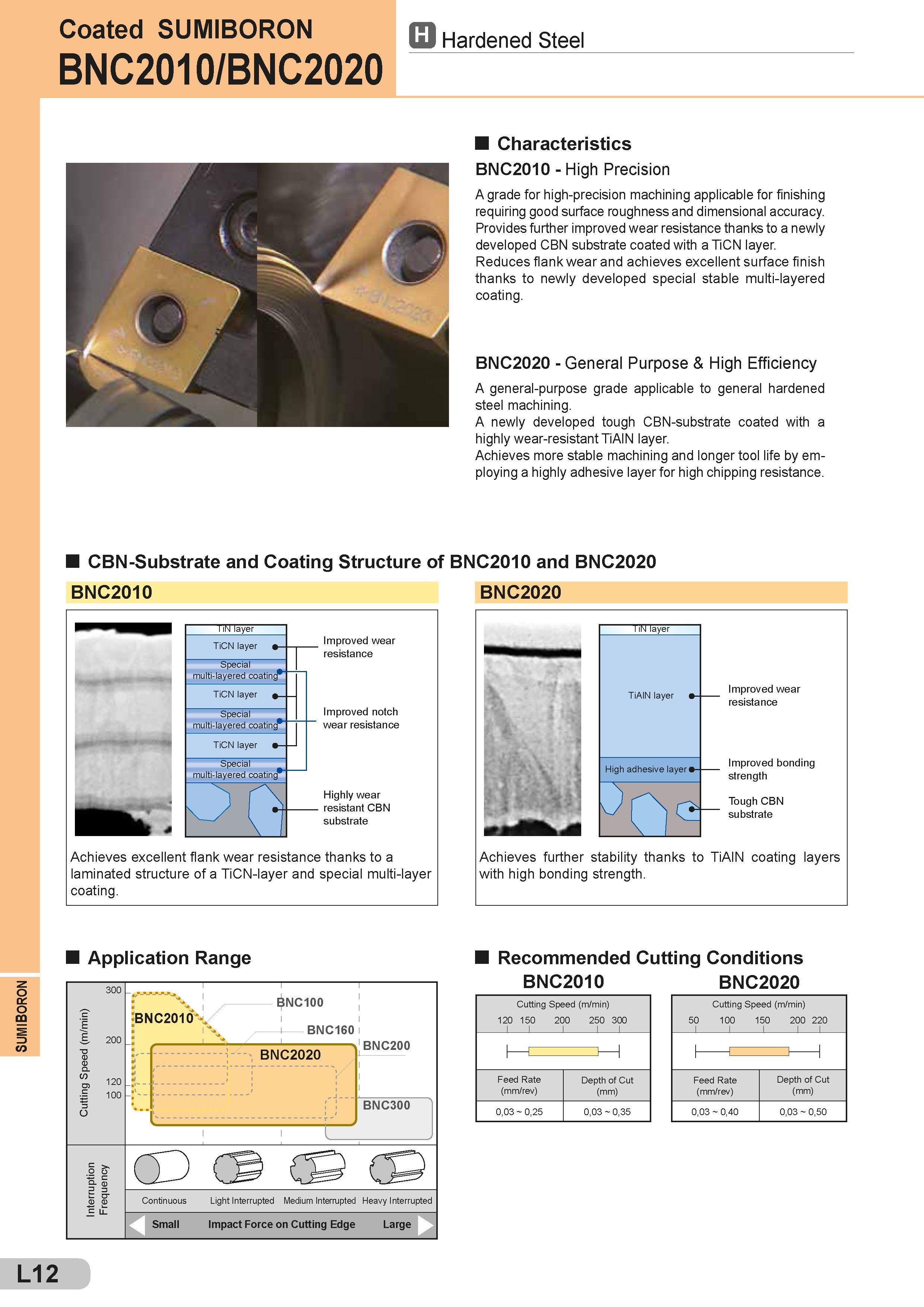

SUMIBORON Coated SUMIB0R0N Hardened Steel BNC2010/BNC2020 Characteristics BNC2010 - High Precision A grade for high-precision machining applicable for finishing requiring good surface roughness and dimensional accuracy. Provides further improved wear resistance thanks to a newly developed CBN substrate coated with a TiCN layer. Reduces flank wear and achieves excellent surface finish thanks to newly developed special stable multi-layered coating. BNC2020 - General Purpose & High Efficiency A general-purpose grade applicable to general hardened steel machining. A newly developed tough CBN-substrate coated with a highly wear-resistant TiAlN layer. Achieves more stable machining and longer tool life by employing a highly adhesive layer for high chipping resistance. CBN-Substrate and Coating Structure of BNC2010 and BNC2020 BNC2010 Improved wear resistance Improved notch wear resistance Highly wear resistant CBN substrate Achieves excellent flank wear resistance thanks to a laminated structure of a TiCN-layer and special multi-layer coating. I iN layer TiCN layer Special multi-layered coating TiCN layer Special multi-layered coating TiCN layer Special multi-layered coating BNC2020 Improved wear resistance Improved bonding strength Tough CBN substrate Achieves further stability thanks to TiAlN coating layers with high bonding strength. Application Range Recommended Cutting Conditions BNC2010 BNC2020 Cutting Speed (m/min) 120 150 200 250 300 II 1 II 1 i i 1 Feed Rate Depth of Cut (mm/rev) (mm) 0,03 0,25 0,03 0,35 Cutting Speed (m/min) 50 100 150 200 220 1 1 1 1 1 1 1 i 1 Feed Rate (mm/rev) Depth of Cut (mm) 0,03 0,40 0,03 0,50 L12
