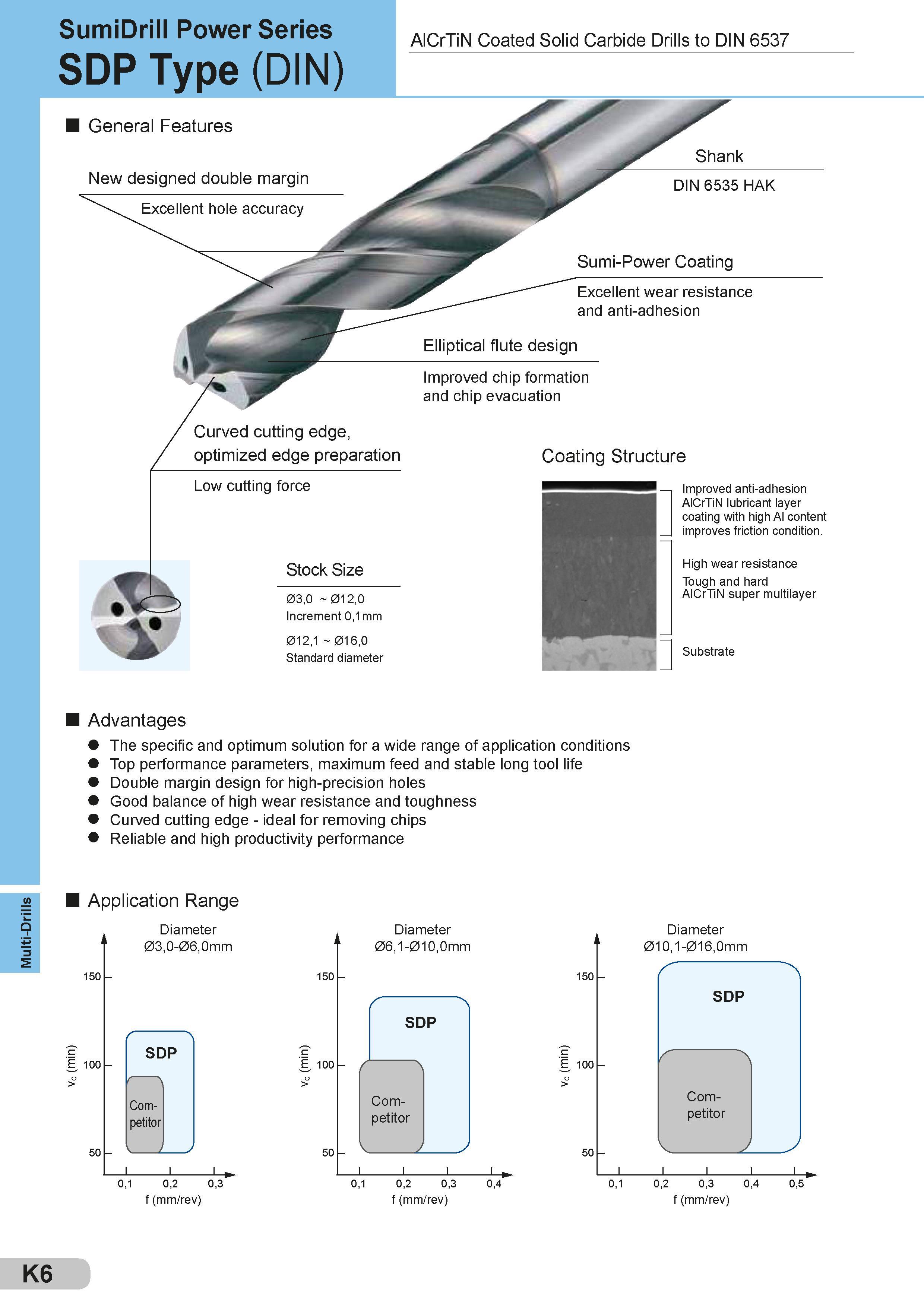

Multi-Drills SumiDrill Power Series SDP Type (DIN) AlCrTiN Coated Solid Carbide Drills to DIN 6537 General Features New designed double margin Excellent hole accuracy Shank DIN 6535 HAK Sumi-Power Coating Excellent wear resistance and anti-adhesion Elliptical flute design Improved chip formation and chip evacuation Curved cutting edge, optimized edge preparation Coating Structure Low cutting force Stock Size 03,0 012,0 Increment 0,1mm 012,1 016,0 Standard diameter Improved anti-adhesion AlCrTiN lubricant layer coating with high Al content improves friction condition. High wear resistance Tough and hard AlCrTiN super multilayer Substrate Advantages The specific and optimum solution for a wide range of application conditions Top performance parameters, maximum feed and stable long tool life Double margin design for high-precision holes Good balance of high wear resistance and toughness Curved cutting edge - ideal for removing chips Reliable and high productivity performance Application Range f (mm/rev) f (mm/rev) f (mm/rev) K6
