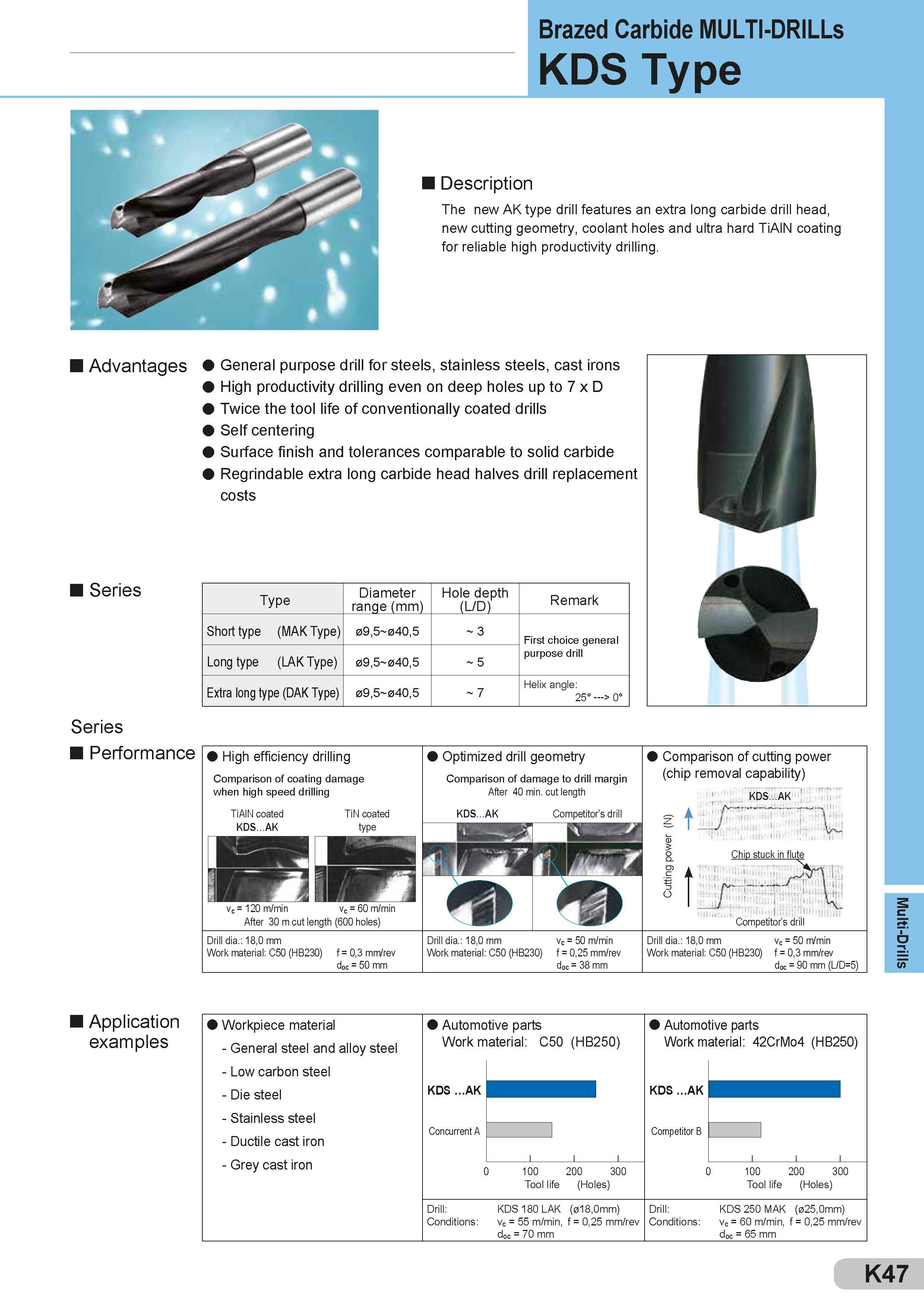

Brazed Carbide MULTI-DRILLs KDS Type Description The new AK type drill features an extra long carbide drill head, new cutting geometry, coolant holes and ultra hard TiAlN coating for reliable high productivity drilling. Advantages General purpose drill for steels, stainless steels, cast irons High productivity drilling even on deep holes up to 7 x D Twice the tool life of conventionally coated drills Self centering Surface finish and tolerances comparable to solid carbide Regrindable extra long carbide head halves drill replacement costs Series Type Diameter range (mm) Hole depth (L/D) Remark Short type (MAK Type) 09,5 040,5 3 First choice general purpose drill Long type (LAK Type) 09,5 040,5 5 Extra long type (DAK Type) 09,5 040,5 7 Helix angle: 25° -> 0° Series Performance High efficiency drilling Comparison of coating damage when high speed drilling TiAlN coated KDS...AK TiN coated type vc = 120 m/min vc = 60 m/min After 30 m cut length (600 holes) Optimized drill geometry Comparison of damage to drill margin After 40 min. cut length KDS. AK Competitor's drill Comparison of cutting power (chip removal capability) KDS...AK W Chip stuck in flute I i it Competitor's drill Drill dia.: 18,0 mm Work material: C50 (HB230) f = 0,3 mm/rev doc = 50 mm Drill dia.: 18,0 mm vc = 50 m/min Work material: C50 (HB230) f = 0,25 mm/rev doc = 38 mm Drill dia.: 18,0 mm vc = 50 m/min Work material: C50 (HB230) f = 0,3 mm/rev doc = 90 mm (L/D=5) Application examples Workpiece material - General steel and alloy steel - Low carbon steel - Die steel - Stainless steel - Ductile cast iron - Grey cast iron Automotive parts Work material: C50 (HB250) Automotive parts Work material: 42CrMo4 (HB250) KDS ...AK KDS .AK Concurrent A Competitor B l l l l l l 0 100 200 300 Tool life (Holes) 0 100 200 300 Tool life (Holes) Drill: KDS 180 LAK (018,0mm) Conditions: vc = 55 m/min, f = 0,25 mm/rev doc = 70 mm Drill: KDS 250 MAK (025,0mm) Conditions: vc = 60 m/min, f = 0,25 mm/rev doc = 65 mm K47 Multi-Drills
