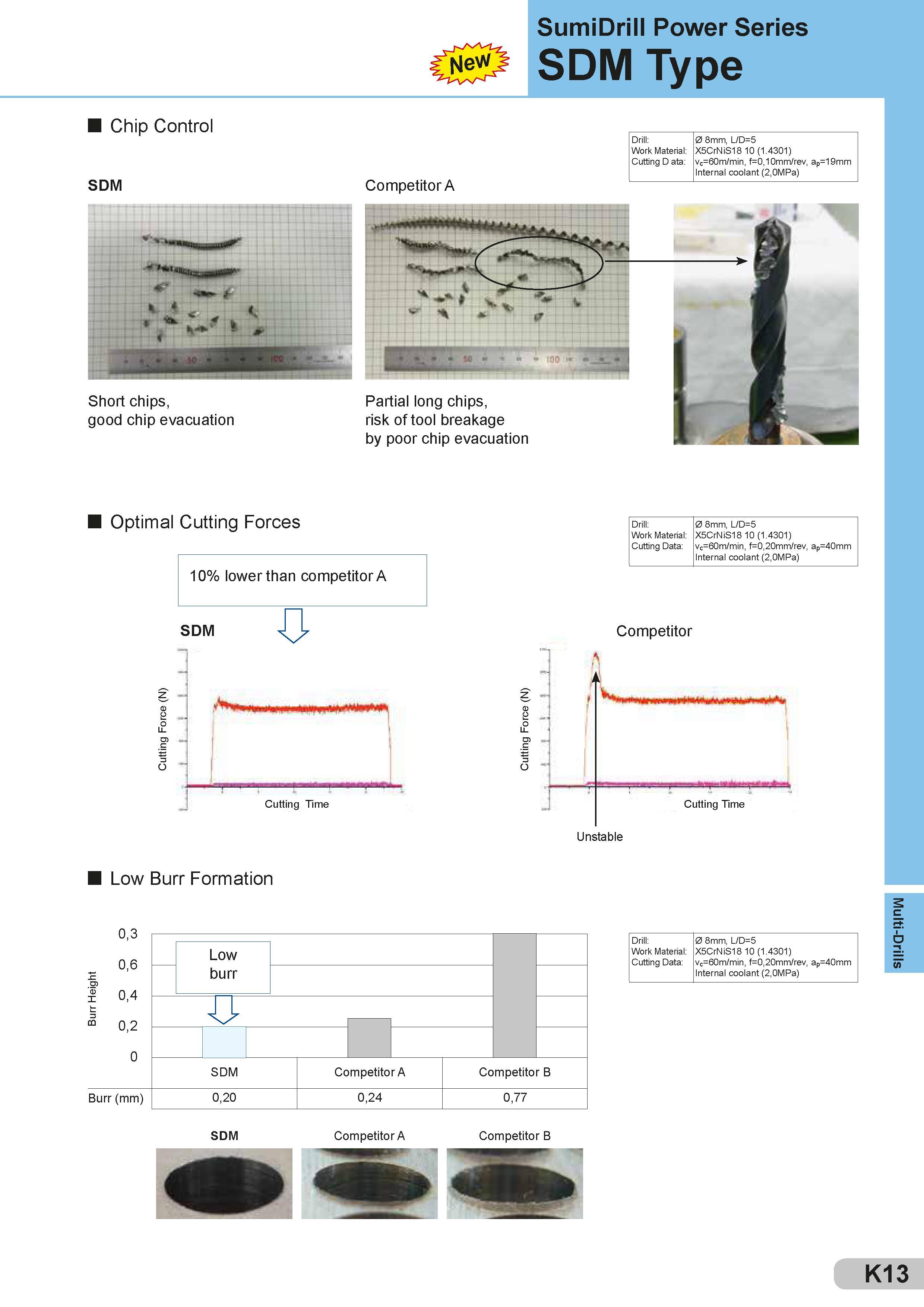

Chip Control SDM Short chips, good chip evacuation SumiDrill Power Series SDM Type Competitor A Drill: 0 8mm, L/D=5 Work Material: X5CrNiS18 10 (1.4301) Cutting D ata: vc=60m/min, f=0,10mm/rev, ap=19mm Internal coolant (2,0MPa) f jr. , A . T Partial long chips, risk of tool breakage by poor chip evacuation Optimal Cutting Forces 10% lower than competitor A SDM Cutting Time Drill: 0 8mm, L/D=5 Work Material: X5CrNiS18 10 (1.4301) Cutting Data: vc=60m/min, f=0,20mm/rev, ap=40mm Internal coolant (2,0MPa) Competitor Low Burr Formation 0,3 0,6 0,4 0,2 0 Burr (mm) i CD Low burr n SDM Competitor A Competitor B 0,20 0,24 0,77 SDM Competitor A Competitor B Drill: 0 8mm, L/D=5 Work Material: X5CrNiS18 10 (1.4301) Cutting Data: vc=60m/min, f=0,20mm/rev, ap=40mm Internal coolant (2,0MPa) K13 Multi-Drills
