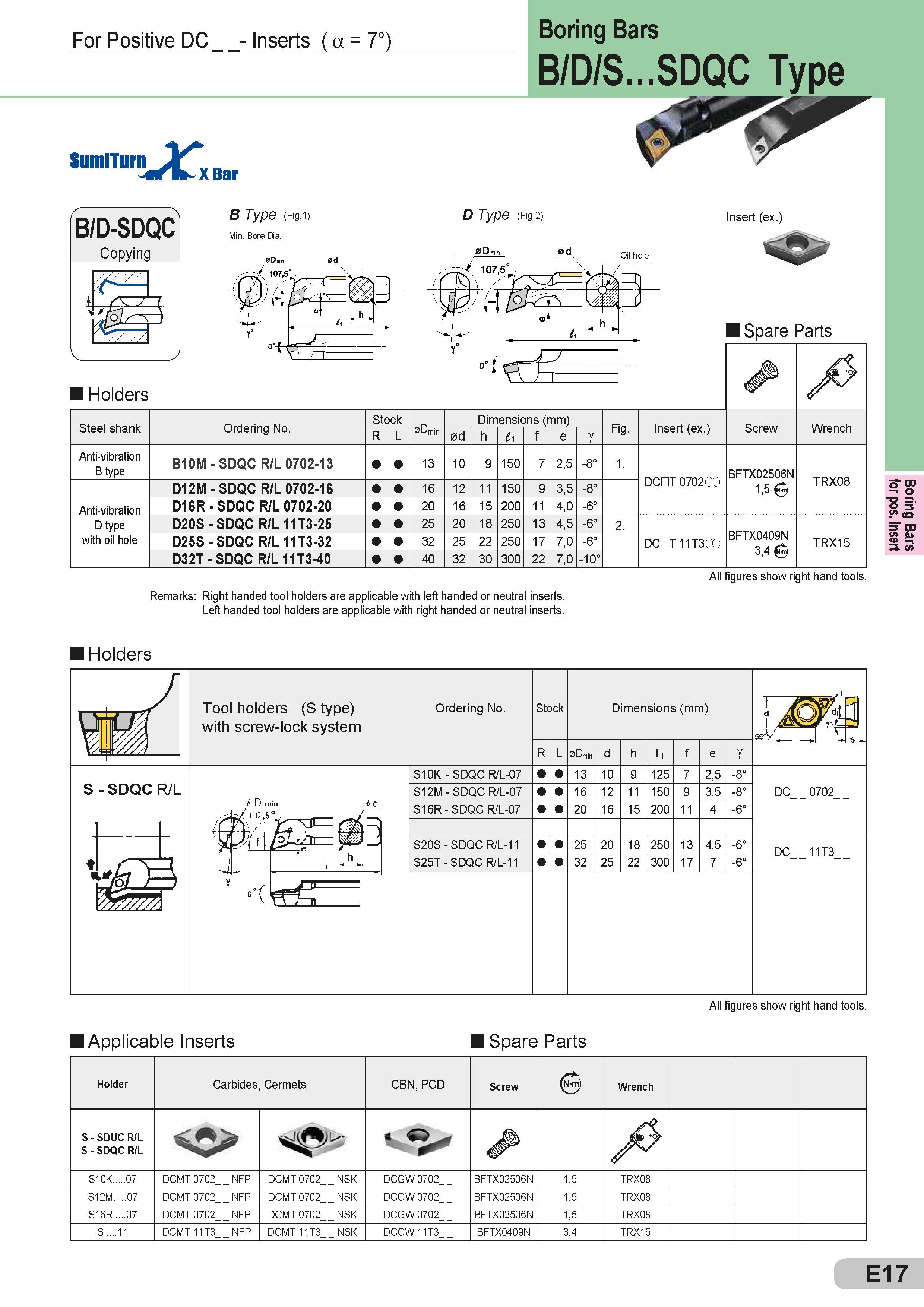

For Positive DC - Inserts ( a = 7°) SumiTurn or, XBar Boring Bars B/D/S...SDQC Type B/D-SDQC Copying 2 ( > Holders B Type (Fig.1) Min. Bore Dia. D Type (Fig.2) Insert (ex.) I Spare Parts Запасные части Sumitomo и комплектующие Steel shank Ordering No. Stock 0Dmin Dimensions (mm) Размеры указаны в мм Fig. R L 0d h 11 f e Y Anti-vibration B type B10M - SDQC R/L 0702-13 13 10 9 150 7 2,5 -8° 1. D12M - SDQC R/L 0702-16 16 12 11 150 9 3,5 -8° Anti-vibration D16R - SDQC R/L 0702-20 20 16 15 200 11 4,0 -6° D type D20S - SDQC R/L 11T3-25 25 20 18 250 13 4,5 -6° 2. with oil hole D25S - SDQC R/L 11T3-32 32 25 22 250 17 7,0 -6° D32T - SDQC R/L 11T3-40 40 32 30 300 22 7,0 -10° Screw Wrench BFTX02506N 1,5 TRX08 BFTX0409N 3,4 TRX15 Insert (ex.) DCDT 0702 OC DCDT 11T30C All figures show right hand tools. Remarks: Right handed tool holders are applicable with left handed or neutral inserts. Left handed tool holders are applicable with right handed or neutral inserts. Holders Tool holders (S type) with screw-lock system Ordering No. Stock Dimensions (mm) Размеры указаны в мм R L 0Dmin d h l1 f e Y S10K - SDQC R/L-07 13 10 9 125 7 2,5 -8° S12M - SDQC R/L-07 16 12 11 150 9 3,5 -8° S16R - SDQC R/L-07 20 16 15 200 11 4 -6° S20S - SDQC R/L-11 25 20 18 250 13 4,5 -6° S25T - SDQC R/L-11 32 25 22 300 17 7 -6° S - SDQC R/L DC 0702 DC 11T3 All figures show right hand tools. I Applicable Inserts Spare Parts Запасные части Sumitomo и комплектующие Holder Carbides, Cermets CBN, PCD Screw Wrench S - SDUC R/L S - SDQC R/L S10K 07 DCMT 0702 NFP DCMT 0702 NSK DCGW 0702 BFTX02506N 1,5 TRX08 S12M 07 DCMT 0702 NFP DCMT 0702 NSK DCGW 0702 BFTX02506N 1,5 TRX08 S16R 07 DCMT 0702 NFP DCMT 0702 NSK DCGW 0702 BFTX02506N 1,5 TRX08 S 11 DCMT 11T3 NFP DCMT 11T3 NSK DCGW 11T3 BFTX0409N 3,4 TRX15 E17 Boring Bars for pos. Insert
