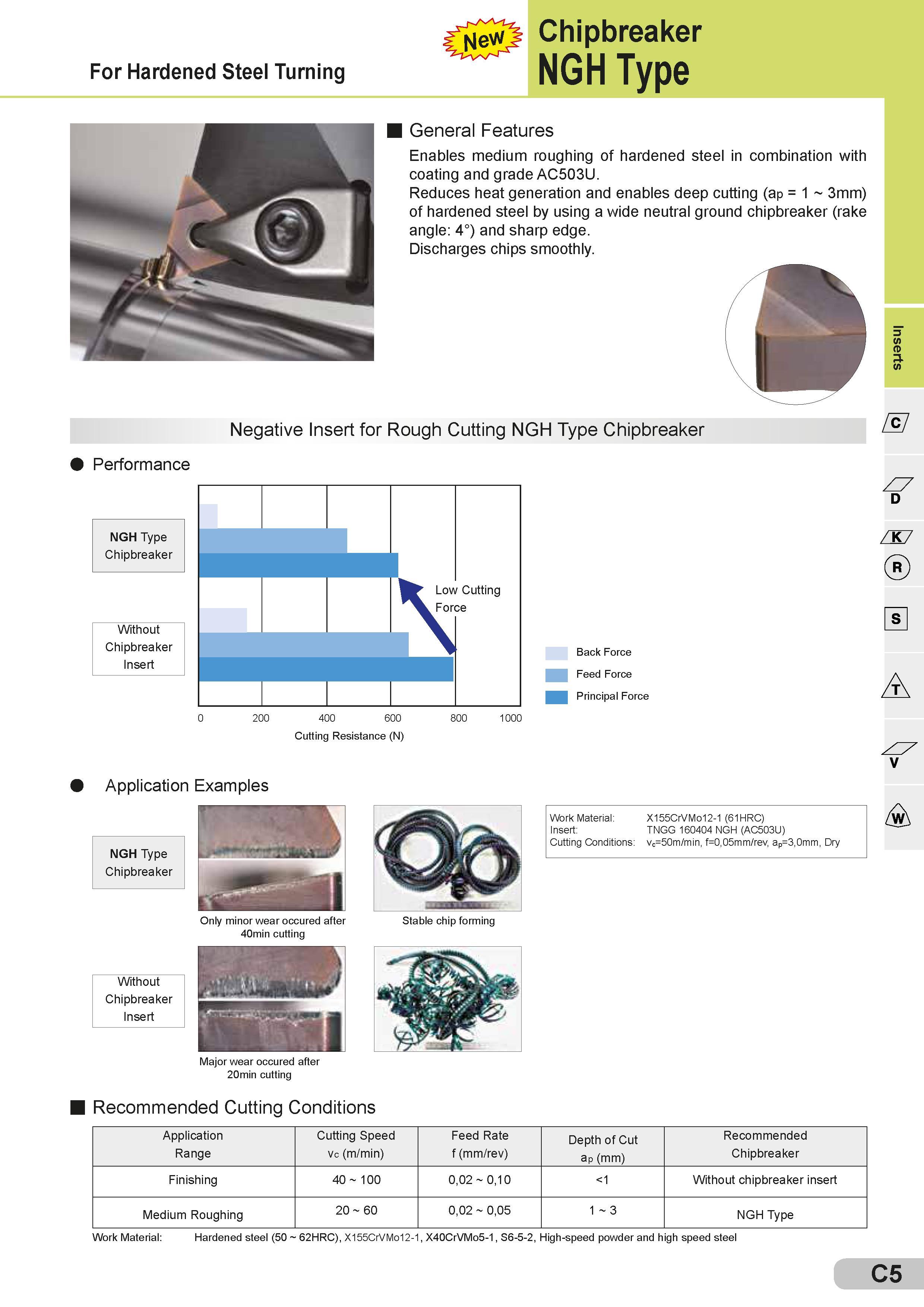

For Hardened Steel Turning Chipbreaker NGH Type General Features Enables medium roughing of hardened steel in combination with coating and grade AC503U. Reduces heat generation and enables deep cutting (ap = 1 3mm) of hardened steel by using a wide neutral ground chipbreaker (rake angle: 4°) and sharp edge. Discharges chips smoothly. Performance NGH Type Chipbreaker Without Chipbreaker Insert Negative Insert for Rough Cutting NGH Type Chipbreaker 0 200 400 600 Cutting Resistance (N) 800 1000 Back Force Feed Force Principal Force (/> a> t (/> Zc7 Z7 D ZK7 Application Examples NGH Type Chipbreaker Only minor wear occured after 40min cutting Without Chipbreaker Insert Major wear occured after 20min cutting Stable chip forming Recommended Cutting Conditions Work Material: X155CrVMo12-1 (61HRC) Insert: TNGG 160404 NGH (AC503U) Cutting Conditions: vc=50m/min, f=0,05mm/rev, ap=3,0mm, Dry Application Cutting Speed Feed Rate Depth of Cut Recommended Range vc (m/min) f (mm/rev) ap (mm) Chipbreaker Finishing 40 100 0,02 0,10 <1 Without chipbreaker insert Medium Roughing 20 60 0,02 0,05 1 3 NGH Type Work Material: Hardened steel (50 62HRC), X155CrVMo12-1, X40CrVMo5-1, S6-5-2, High-speed powder and high speed steel C5
