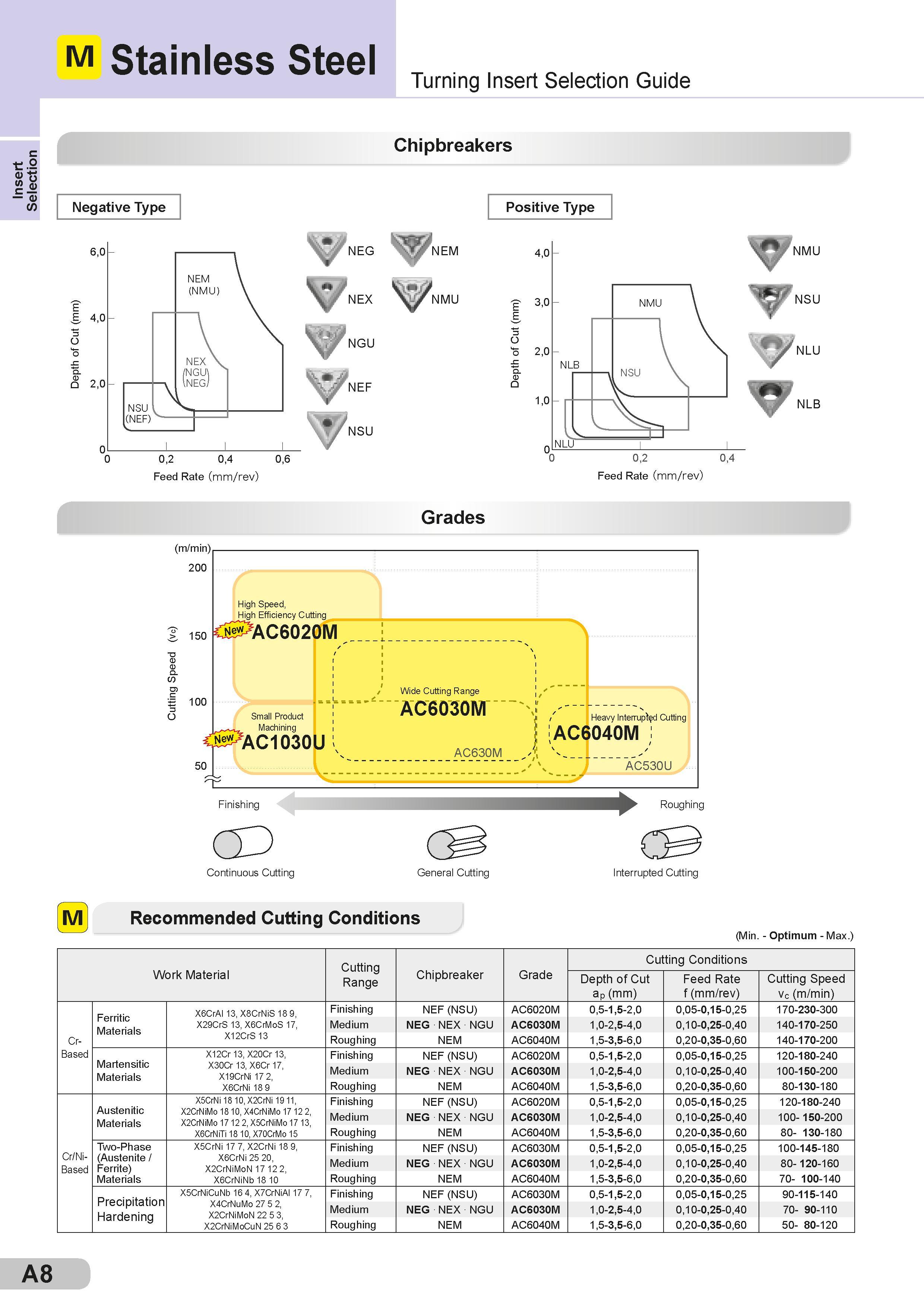

Insert Selection M Stainless Steel Нержавеющая сталь Turning Insert Selection Guide Chipbreakers Negative Type Positive Type Q v V/ V V NEX NGU NSU 0,2 0,4 0,6 Feed Rate (mm/rev) 0 Grades (m/min) 200 £ 150 £ 100 High Speed, High Efficiency Cutting New AC6020M Machining i AC1030U i. 50 Wide Cutting Range AC6030M AC630M Heavy Interrupted Cutting AC6040M : i AC530U Finishing CD Continuous Cutting General Cutting Roughing Interrupted Cutting M Recommended Cutting Conditions (Min. - Optimum - Max.) Cutting Range Chipbreaker Grade Cutting Conditions Work Material Depth of Cut ap (mm) Feed Rate f (mm/rev) Cutting Speed vc (m/min) Ferritic Materials X6CrAl 13, X8CrNiS 18 9, Finishing NEF (NSU) AC6020M 0,5-1,5-2,0 0,05-0,15-0,25 170-230-300 X29CrS 13, X6CrMoS 17, Medium NEG NEX NGU AC6030M 1,0-2,5-4,0 0,10-0,25-0,40 140-170-250 Cr- X12CrS 13 Roughing NEM AC6040M 1,5-3,5-6,0 0,20-0,35-0,60 140-170-200 Based Martensitic Materials X12Cr 13, X20Cr 13, Finishing NEF (NSU) AC6020M 0,5-1,5-2,0 0,05-0,15-0,25 120-180-240 X30Cr 13, X6Cr 17, X19CrNi 17 2, X6CrNi 18 9 Medium NEG NEX NGU AC6030M 1,0-2,5-4,0 0,10-0,25-0,40 100-150-200 Roughing NEM AC6040M 1,5-3,5-6,0 0,20-0,35-0,60 80-130-180 Austenitic Materials X5CrNi 18 10, X2CrNi 19 11, Finishing NEF (NSU) AC6020M 0,5-1,5-2,0 0,05-0,15-0,25 120-180-240 X2CrNiMo 18 10, X4CrNiMo 17 12 2, X2CrNiMo 17 12 2, X5CrNiMo 17 13, X6CrNiTi 18 10, X70CrMo 15 Medium NEG NEX NGU AC6030M 1,0-2,5-4,0 0,10-0,25-0,40 100- 150-200 Roughing NEM AC6040M 1,5-3,5-6,0 0,20-0,35-0,60 80- 130-180 Cr/Ni- Based Two-Phase (Austenite / Ferrite) Materials X5CrNi 17 7, X2CrNi 18 9, Finishing NEF (NSU) AC6030M 0,5-1,5-2,0 0,05-0,15-0,25 100-145-180 X6CrNi 25 20, X2CrNiMoN 17 12 2, X6CrNiNb 18 10 Medium NEG NEX NGU AC6030M 1,0-2,5-4,0 0,10-0,25-0,40 80- 120-160 Roughing NEM AC6040M 1,5-3,5-6,0 0,20-0,35-0,60 70- 100-140 Precipitation Hardening X5CrNiCuNb 16 4, X7CrNiAl 17 7, Finishing NEF (NSU) AC6030M 0,5-1,5-2,0 0,05-0,15-0,25 90-115-140 X4CrNuMo 27 5 2, X2CrNiMoN 22 5 3, X2CrNiMoCuN 25 6 3 Medium NEG NEX NGU AC6030M 1,0-2,5-4,0 0,10-0,25-0,40 70- 90-110 Roughing NEM AC6040M 1,5-3,5-6,0 0,20-0,35-0,60 50- 80-120 A8
