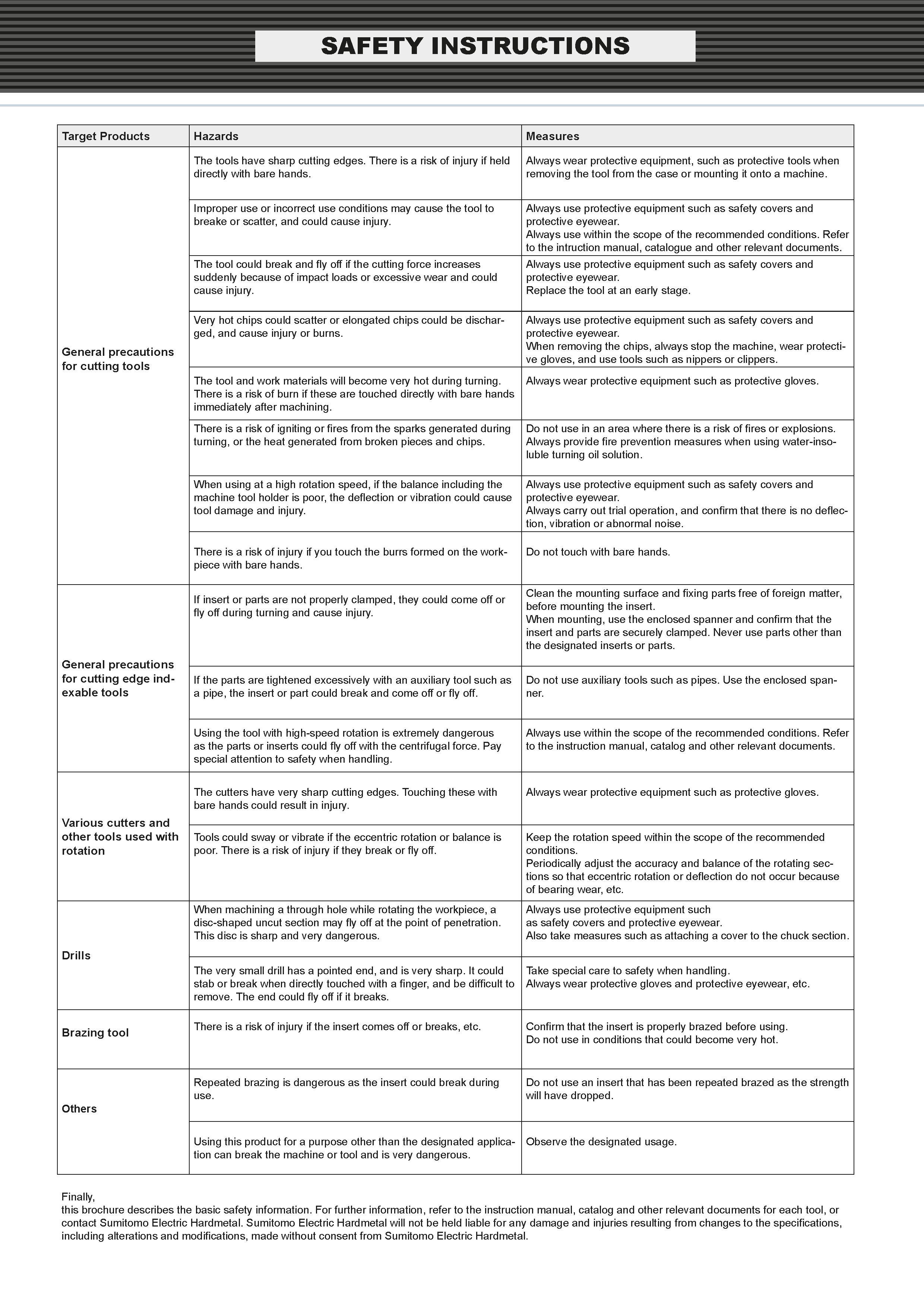

Target Products Hazards Measures The tools have sharp cutting edges. There is a risk of injury if held directly with bare hands. Always wear protective equipment, such as protective tools when removing the tool from the case or mounting it onto a machine. Improper use or incorrect use conditions may cause the tool to breake or scatter, and could cause injury. Always use protective equipment such as safety covers and protective eyewear. Always use within the scope of the recommended conditions. Refer to the intruction manual, catalogue and other relevant documents. The tool could break and fly off if the cutting force increases suddenly because of impact loads or excessive wear and could cause injury. Always use protective equipment such as safety covers and protective eyewear. Replace the tool at an early stage. General precautions for cutting tools Very hot chips could scatter or elongated chips could be discharged, and cause injury or burns. Always use protective equipment such as safety covers and protective eyewear. When removing the chips, always stop the machine, wear protective gloves, and use tools such as nippers or clippers. The tool and work materials will become very hot during turning. There is a risk of burn if these are touched directly with bare hands immediately after machining. Always wear protective equipment such as protective gloves. There is a risk of igniting or fires from the sparks generated during turning, or the heat generated from broken pieces and chips. Do not use in an area where there is a risk of fires or explosions. Always provide fire prevention measures when using water-insoluble turning oil solution. When using at a high rotation speed, if the balance including the machine tool holder is poor, the deflection or vibration could cause tool damage and injury. Always use protective equipment such as safety covers and protective eyewear. Always carry out trial operation, and confirm that there is no deflection, vibration or abnormal noise. There is a risk of injury if you touch the burrs formed on the workpiece with bare hands. Do not touch with bare hands. General precautions for cutting edge indexable tools If insert or parts are not properly clamped, they could come off or fly off during turning and cause injury. Clean the mounting surface and fixing parts free of foreign matter, before mounting the insert. When mounting, use the enclosed spanner and confirm that the insert and parts are securely clamped. Never use parts other than the designated inserts or parts. If the parts are tightened excessively with an auxiliary tool such as a pipe, the insert or part could break and come off or fly off. Do not use auxiliary tools such as pipes. Use the enclosed spanner. Using the tool with high-speed rotation is extremely dangerous as the parts or inserts could fly off with the centrifugal force. Pay special attention to safety when handling. Always use within the scope of the recommended conditions. Refer to the instruction manual, catalog and other relevant documents. Various cutters and The cutters have very sharp cutting edges. Touching these with bare hands could result in injury. Always wear protective equipment such as protective gloves. other tools used with rotation Tools could sway or vibrate if the eccentric rotation or balance is poor. There is a risk of injury if they break or fly off. Keep the rotation speed within the scope of the recommended conditions. Periodically adjust the accuracy and balance of the rotating sections so that eccentric rotation or deflection do not occur because of bearing wear, etc. Drills When machining a through hole while rotating the workpiece, a disc-shaped uncut section may fly off at the point of penetration. This disc is sharp and very dangerous. Always use protective equipment such as safety covers and protective eyewear. Also take measures such as attaching a cover to the chuck section. The very small drill has a pointed end, and is very sharp. It could stab or break when directly touched with a finger, and be difficult to remove. The end could fly off if it breaks. Take special care to safety when handling. Always wear protective gloves and protective eyewear, etc. Brazing tool There is a risk of injury if the insert comes off or breaks, etc. Confirm that the insert is properly brazed before using. Do not use in conditions that could become very hot. Others Repeated brazing is dangerous as the insert could break during use. Do not use an insert that has been repeated brazed as the strength will have dropped. Using this product for a purpose other than the designated application can break the machine or tool and is very dangerous. Observe the designated usage. Finally, this brochure describes the basic safety information. For further information, refer to the instruction manual, catalog and other relevant documents for each tool, or contact Sumitomo Electric Hardmetal. Sumitomo Electric Hardmetal will not be held liable for any damage and injuries resulting from changes to the specifications, including alterations and modifications, made without consent from Sumitomo Electric Hardmetal.
