Цанговые патроны Sandvik ER с конусом CAT-V Интерфейс со стороны станка совместим с ASME B5 50-1985 Интерфейс со стороны заготовки DIN 6499-B О

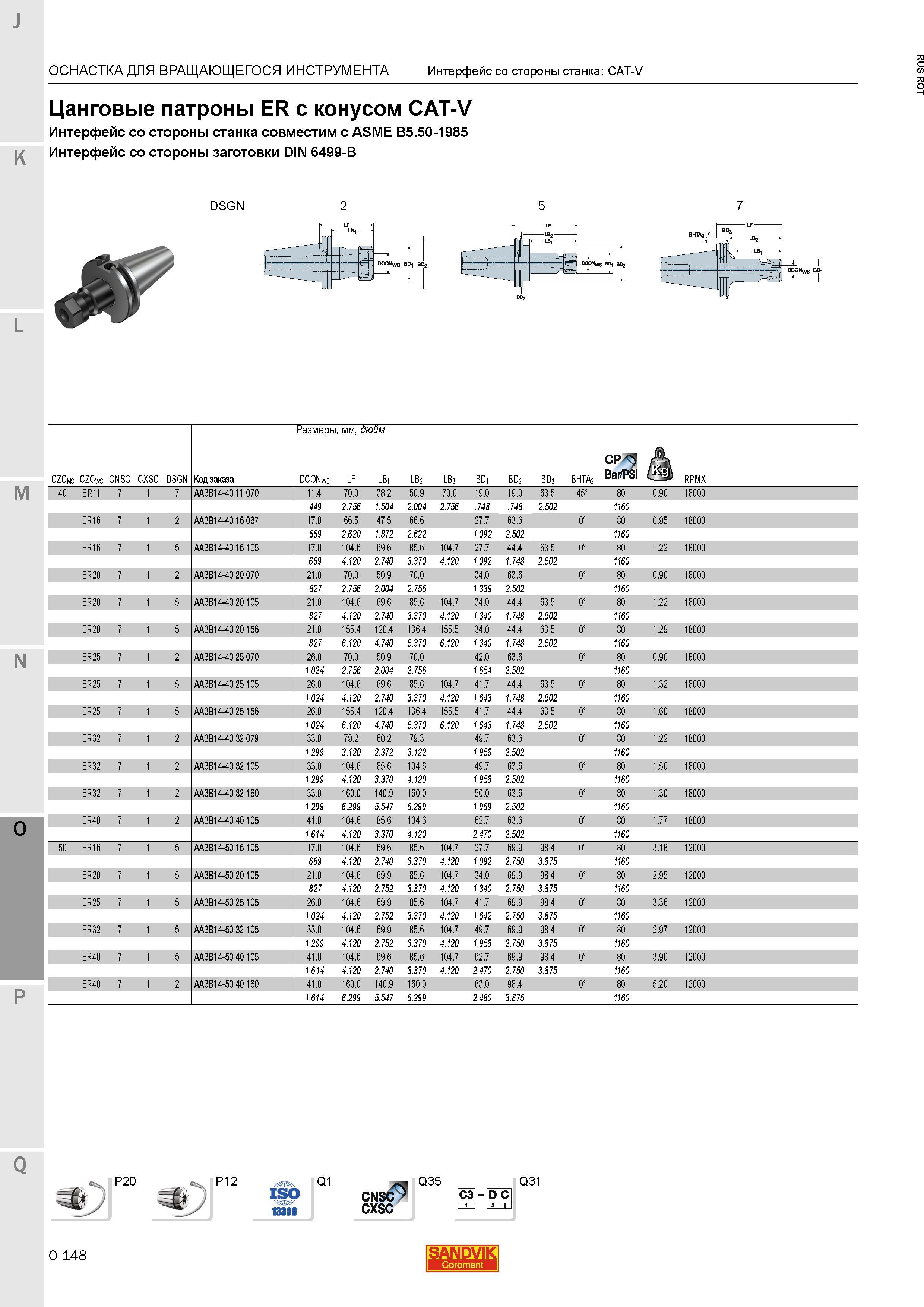

Цанговые патроны Sandvik ER с конусом CAT-V Интерфейс со стороны станка совместим с ASME B5.50-1985 Интерфейс со стороны заготовки DIN 6499-B ОСНАСТКА ДЛЯ ВРАЩАЮЩЕГОСЯ ИНСТРУМЕНТА Интерфейс со стороны станка CAT-V DSGN CZCms CZCws CNSC CXSC DSGN Код заказа Размеры мм дюйм DCONws LF LBi LB2 LB3 BD1 BD2 BD3 BHTA2 Bai PSI 4 RPMX 40 ER11 7 1 7 AA3B14-40 11 070 11.4 70.0 38.2 50.9 70.0 19.0 19.0 63.5 45 80 0.90 18000 .449 2.756 1.504 2.004 2.756 .748 .748 2.502 1160 ER16 7 1 2 AA3B14-40 16 067 17.0 66.5 47.5 66.6 27.7 63.6 0 80 0.95 18000 .669 2.620 1.872 2.622 1.092 2.502 1160 ER16 7 1 5 AA3B14-40 16 105 17.0 104.6 69.6 85.6 104.7 27.7 44.4 63.5 0 80 1.22 18000 .669 4.120 2.740 3.370 4.120 1.092 1.748 2.502 1160 ER20 7 1 2 AA3B14-40 20 070 21.0 70.0 50.9 70.0 34.0 63.6 0 80 0.90 18000 .827 2.756 2.004 2.756 1.339 2.502 1160 ER20 7 1 5 AA3B14-40 20 105 21.0 104.6 69.6 85.6 104.7 34.0 44.4 63.5 0 80 1.22 18000 .827 4.120 2.740 3.370 4.120 1.340 1.748 2.502 1160 ER20 7 1 5 AA3B14-40 20 156 21.0 155.4 120.4 136.4 155.5 34.0 44.4 63.5 0 80 1.29 18000 .827 6.120 4.740 5.370 6.120 1.340 1.748 2.502 1160 ER25 7 1 2 AA3B14-40 25 070 26.0 70.0 50.9 70.0 42.0 63.6 0 80 0.90 18000 1.024 2.756 2.004 2.756 1.654 2.502 1160 ER25 7 1 5 AA3B14-40 25 105 26.0 104.6 69.6 85.6 104.7 41.7 44.4 63.5 0 80 1.32 18000 1.024 4.120 2.740 3.370 4.120 1.643 1.748 2.502 1160 ER25 7 1 5 AA3B14-40 25 156 26.0 155.4 120.4 136.4 155.5 41.7 44.4 63.5 0 80 1.60 18000 1.024 6.120 4.740 5.370 6.120 1.643 1.748 2.502 1160 ER32 7 1 2 AA3B14-40 32 079 33.0 79.2 60.2 79.3 49.7 63.6 0 80 1.22 18000 1.299 3.120 2.372 3.122 1.958 2.502 1160 ER32 7 1 2 AA3B14-40 32 105 33.0 104.6 85.6 104.6 49.7 63.6 0 80 1.50 18000 1.299 4.120 3.370 4.120 1.958 2.502 1160 ER32 7 1 2 AA3B14-40 32 160 33.0 160.0 140.9 160.0 50.0 63.6 0 80 1.30 18000 1.299 6.299 5.547 6.299 1.969 2.502 1160 ER40 7 1 2 AA3B14-40 40 105 41.0 104.6 85.6 104.6 62.7 63.6 0 80 1.77 18000 1.614 4.120 3.370 4.120 2.470 2.502 1160 50 ER16 7 1 5 AA3B14-50 16 105 17.0 104.6 69.6 85.6 104.7 27.7 69.9 98.4 0 80 3.18 12000 .669 4.120 2.740 3.370 4.120 1.092 2.750 3.875 1160 ER20 7 1 5 AA3B14-50 20 105 21.0 104.6 69.9 85.6 104.7 34.0 69.9 98.4 0 80 2.95 12000 .827 4.120 2.752 3.370 4.120 1.340 2.750 3.875 1160 ER25 7 1 5 AA3B14-50 25 105 26.0 104.6 69.9 85.6 104.7 41.7 69.9 98.4 0 80 3.36 12000 1.024 4.120 2.752 3.370 4.120 1.642 2.750 3.875 1160 ER32 7 1 5 AA3B14-50 32 105 33.0 104.6 69.9 85.6 104.7 49.7 69.9 98.4 0 80 2.97 12000 1.299 4.120 2.752 3.370 4.120 1.958 2.750 3.875 1160 ER40 7 1 5 AA3B14-50 40 105 41.0 104.6 69.6 85.6 104.7 62.7 69.9 98.4 0 80 3.90 12000 1.614 4.120 2.740 3.370 4.120 2.470 2.750 3.875 1160 ER40 7 1 2 AA3B14-50 40 160 41.0 160.0 140.9 160.0 63.0 98.4 0 80 5.20 12000 1.614 6.299 5.547 6.299 2.480 3.875 1160 P20 P12 Q1 CNSC Q35 C3l- D С Q31 CXSC 3 O 148 SANDVIK COROMANT
