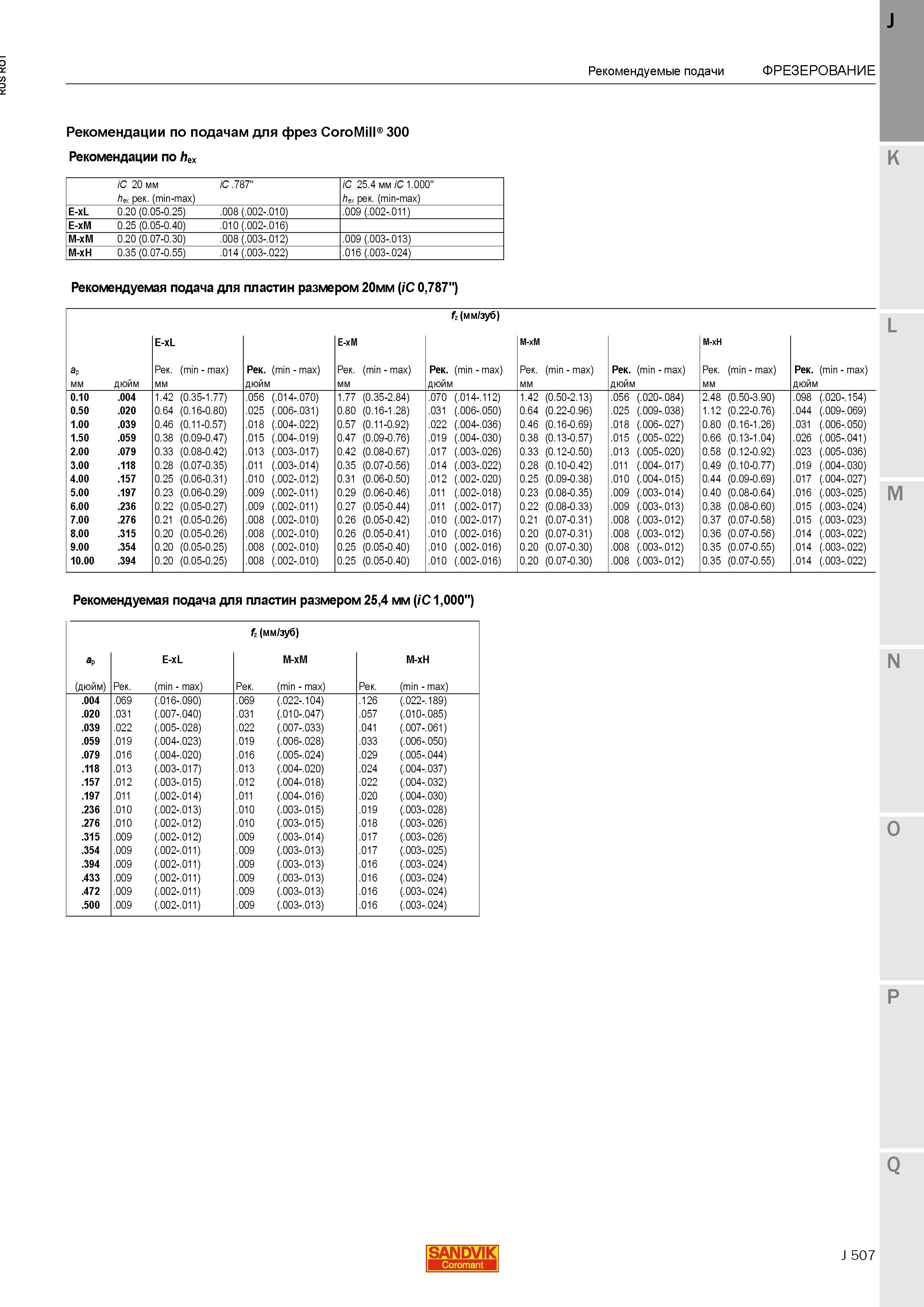

Рекомендации Sandvik по подачам для фрез CoroMill 300 Рекомендации по hex iC 20 мм hex рек. (min-max) iC .787" iC 25.4 мм iC 1.000" Рекомендуемые подачи ФРЕЗЕРОВАНИЕ hex рек. (min-max) E-xL 0.20 (0.05-0.25) .008 (.002-.010) .009 (.002-.011) E-xM 0.25 (0.05-0.40) .010 (.002-.016) M-xM 0.20 (0.07-0.30) .008 (.003-.012) .009 (.003-.013) M-xH 0.35 (0.07-0.55) .014 (.003-.022) .016 (.003-.024) Рекомендуемая подача для пластин размером 20мм (iC 0787") fz (мм/зуб) L E-xL E-xM M-xM M-xH ap Рек. (min max) Рек. (min max) Рек. (min max) Рек. (min max) Рек. (min max) Рек. (min max) Рек. (min max) Рек. (min max) мм дюйм мм дюйм мм дюйм мм дюйм мм дюйм 0.10 .004 1.42 (0.35-1.77) .056 (.014- 070) 1.77 (0.35-2.84) .070 (.014- 112) 1.42 (0.50-2.13) .056 (.020- .084) 2.48 (0.50-3.90) .098 (.020-.154) 0.50 .020 0.64 (0.16-0.80) .025 (.006- 031) 0.80 (0.16-1.28) .031 (.006- 050) 0.64 (0.22-0.96) .025 (.009- .038) 1.12 (0.22-0.76) .044 (.009-.069) 1.00 .039 0.46 (0.11-0.57) .018 (.004- 022) 0.57 (0.11-0.92) .022 (.004- 036) 0.46 (0.16-0.69) .018 (.006- .027) 0.80 (0.16-1.26) .031 (.006-.050) 1.50 .059 0.38 (0.09-0.47) .015 (.004- 019) 0.47 (0.09-0.76) .019 (.004- 030) 0.38 (0.13-0.57) .015 (.005- .022) 0.66 (0.13-1.04) .026 (.005-.041) 2.00 .079 0.33 (0.08-0.42) .013 (.003- 017) 0.42 (0.08-0.67) .017 (.003- 026) 0.33 (0.12-0.50) .013 (.005- .020) 0.58 (0.12-0.92) .023 (.005-.036) 3.00 .118 0.28 (0.07-0.35) .011 (.003- 014) 0.35 (0.07-0.56) .014 (.003- 022) 0.28 (0.10-0.42) .011 (.004- .017) 0.49 (0.10-0.77) .019 (.004-.030) 4.00 .157 0.25 (0.06-0.31) .010 (.002- 012) 0.31 (0.06-0.50) .012 (.002- 020) 0.25 (0.09-0.38) .010 (.004- .015) 0.44 (0.09-0.69) .017 (.004-.027) 5.00 .197 0.23 (0.06-0.29) .009 (.002- 011) 0.29 (0.06-0.46) .011 (.002- 018) 0.23 (0.08-0.35) .009 (.003- .014) 0.40 (0.08-0.64) .016 (.003-.025) 6.00 .236 0.22 (0.05-0.27) .009 (.002- 011) 0.27 (0.05-0.44) .011 (.002- 017) 0.22 (0.08-0.33) .009 (.003- .013) 0.38 (0.08-0.60) .015 (.003-.024) 7.00 .276 0.21 (0.05-0.26) .008 (.002- 010) 0.26 (0.05-0.42) .010 (.002- 017) 0.21 (0.07-0.31) .008 (.003- .012) 0.37 (0.07-0.58) .015 (.003-.023) 8.00 .315 0.20 (0.05-0.26) .008 (.002- 010) 0.26 (0.05-0.41) .010 (.002- 016) 0.20 (0.07-0.31) .008 (.003- .012) 0.36 (0.07-0.56) .014 (.003-.022) 9.00 .354 0.20 (0.05-0.25) .008 (.002- 010) 0.25 (0.05-0.40) .010 (.002- 016) 0.20 (0.07-0.30) .008 (.003- .012) 0.35 (0.07-0.55) .014 (.003-.022) 10.00 .394 0.20 (0.05-0.25) .008 (.002- 010) 0.25 (0.05-0.40) .010 (.002- 016) 0.20 (0.07-0.30) .008 (.003- .012) 0.35 (0.07-0.55) .014 (.003-.022) M Рекомендуемая подача для пластин размером 254 мм (iC 1000") ap (дюйм) Рек. E-xL (min max) fz (мм/зуб) M-xM Рек. (min max) Рек. M-xH (min max) .004 .069 (.016-.090) .069 (.022- 104) .126 (.022-. 189) .020 .031 (.007-.040) .031 (.010- 047) .057 (.010-.085) .039 .022 (.005-.028) .022 (.007- 033) .041 (.007-.061) .059 .019 (.004-.023) .019 (.006- 028) .033 (.006-.050) .079 .016 (.004-.020) .016 (.005- 024) .029 (.005-.044) .118 .013 (.003-.017) .013 (.004- 020) .024 (.004-. 037) .157 .012 (.003-.015) .012 (.004- 018) .022 (.004-.032) .197 .011 (.002-.014) .011 (.004- 016) .020 (.004-.030) .236 .010 (.002-.013) .010 (.003- 015) .019 (.003-.028) .276 .010 (.002-.012) .010 (.003- 015) .018 (.003-.026) .315 .009 (.002-.012) .009 (.003- 014) .017 (.003-.026) .354 .009 (.002-.011) .009 (.003- 013) .017 (.003-.025) .394 .009 (.002-.011) .009 (.003- 013) .016 (.003-.024) .433 .009 (.002-.011) .009 (.003- 013) .016 (.003-.024) .472 .009 (.002-.011) .009 (.003- 013) .016 (.003-.024) .500 .009 (.002-.011) .009 (.003- 013) .016 (.003-.024) N SANDVIK Coromant Q J 507
