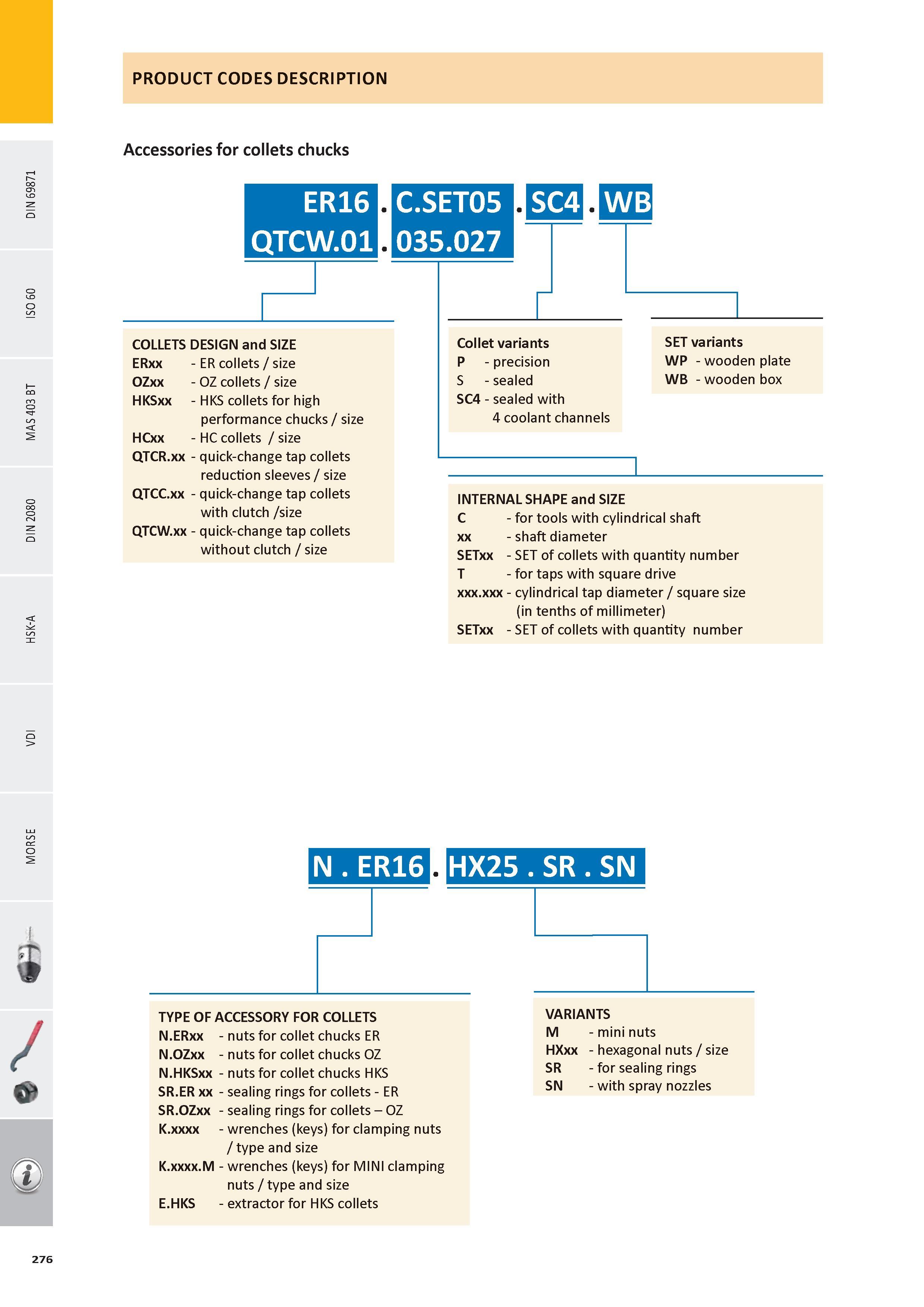

PRODUCT CODES DESCRIPTION Accessories for collets chucks ER16 . C.SET05 . SC4 . WB QTCW.01 . 035.027 COLLETS DESIGN and SIZE ERxx - ER collets / size OZxx - OZ collets / size HKSxx - HKS collets for high performance chucks / size HCxx - HC collets / size QTCR.xx - quick-change tap collets reduction sleeves / size QTCC.xx - quick-change tap collets with clutch /size QTCW.xx - quick-change tap collets without clutch / size INTERNAL SHAPE and SIZE C - for tools with cylindrical shaft xx - shaft diameter SETxx - SET of collets with quantity number T - for taps with square drive xxx.xxx - cylindrical tap diameter / square size (in tenths of millimeter) SETxx - SET of collets with quantity number Collet variants P - precision S - sealed SC4 - sealed with 4 coolant channels SET variants WP - wooden plate WB - wooden box N . ER16 . HX25 . SR . SN / & TYPE OF ACCESSORY FOR COLLETS N.ERxx - nuts for collet chucks ER N.OZxx - nuts for collet chucks OZ N.HKSxx - nuts for collet chucks HKS SR.ER xx - sealing rings for collets - ER SR.OZxx - sealing rings for collets - OZ K.xxxx - wrenches (keys) for clamping nuts / type and size K.xxxx.M - wrenches (keys) for MINI clamping nuts / type and size E.HKS - extractor for HKS collets VARIANTS M - mini nuts HXxx - hexagonal nuts / size SR - for sealing rings SN - with spray nozzles 276
