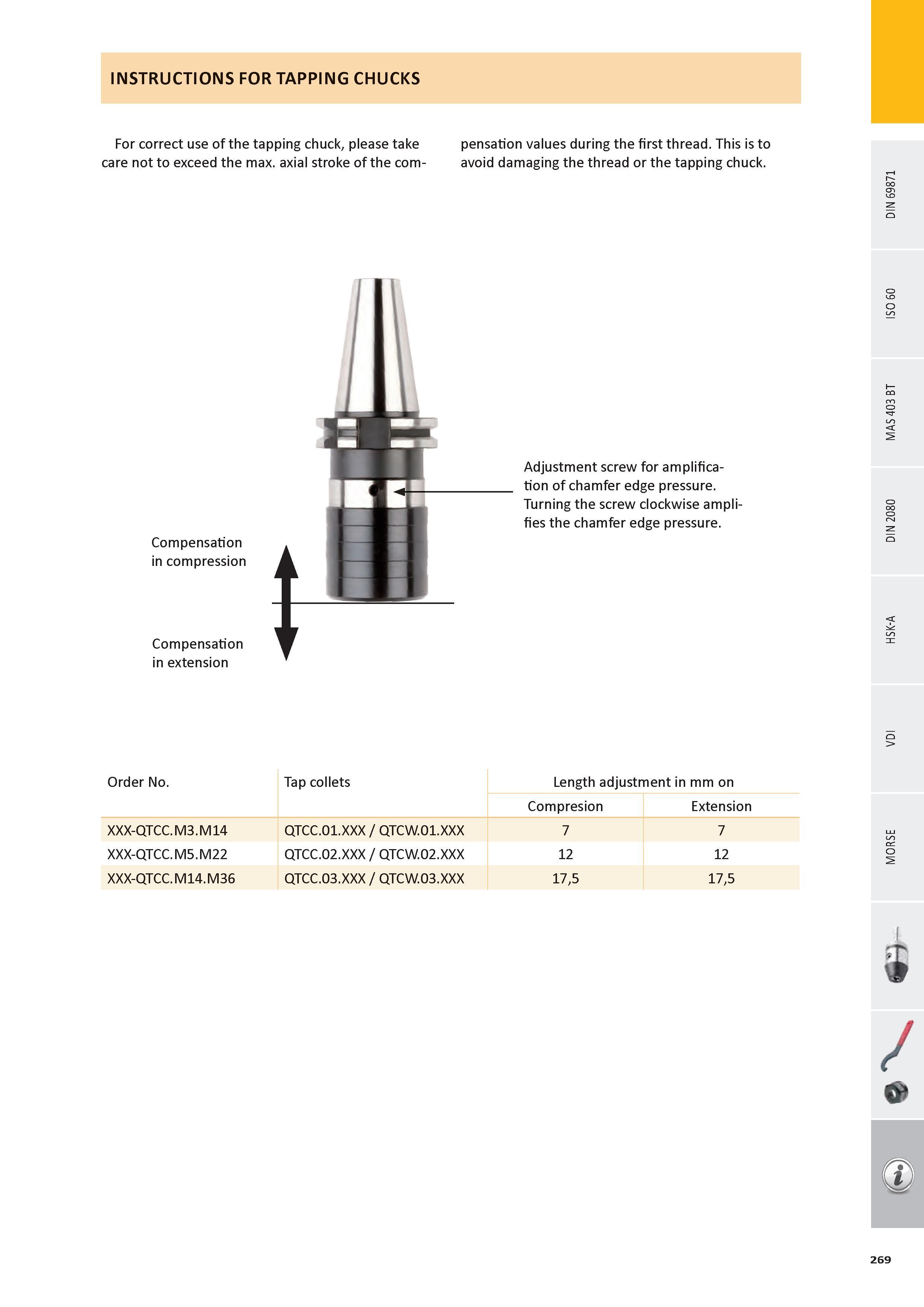

INSTRUCTIONS FOR TAPPING CHUCKS For correct use of the tapping chuck, please take care not to exceed the max. axial stroke of the com- pensation values during the first thread. This is to avoid damaging the thread or the tapping chuck. Compensation in compression Compensation in extension Adjustment screw for amplification of chamfer edge pressure. Turning the screw clockwise amplifies the chamfer edge pressure. Order No. Tap collets Length adjustment in mm on Compresion Extension XXX-QTCC.M3.M14 QTCC.01.XXX / QTCW.01.XXX 7 7 XXX-QTCC.M5.M22 QTCC.02.XXX / QTCW.02.XXX 12 12 XXX-QTCC.M14.M36 QTCC.03.XXX / QTCW.03.XXX 17,5 17,5 / 269
