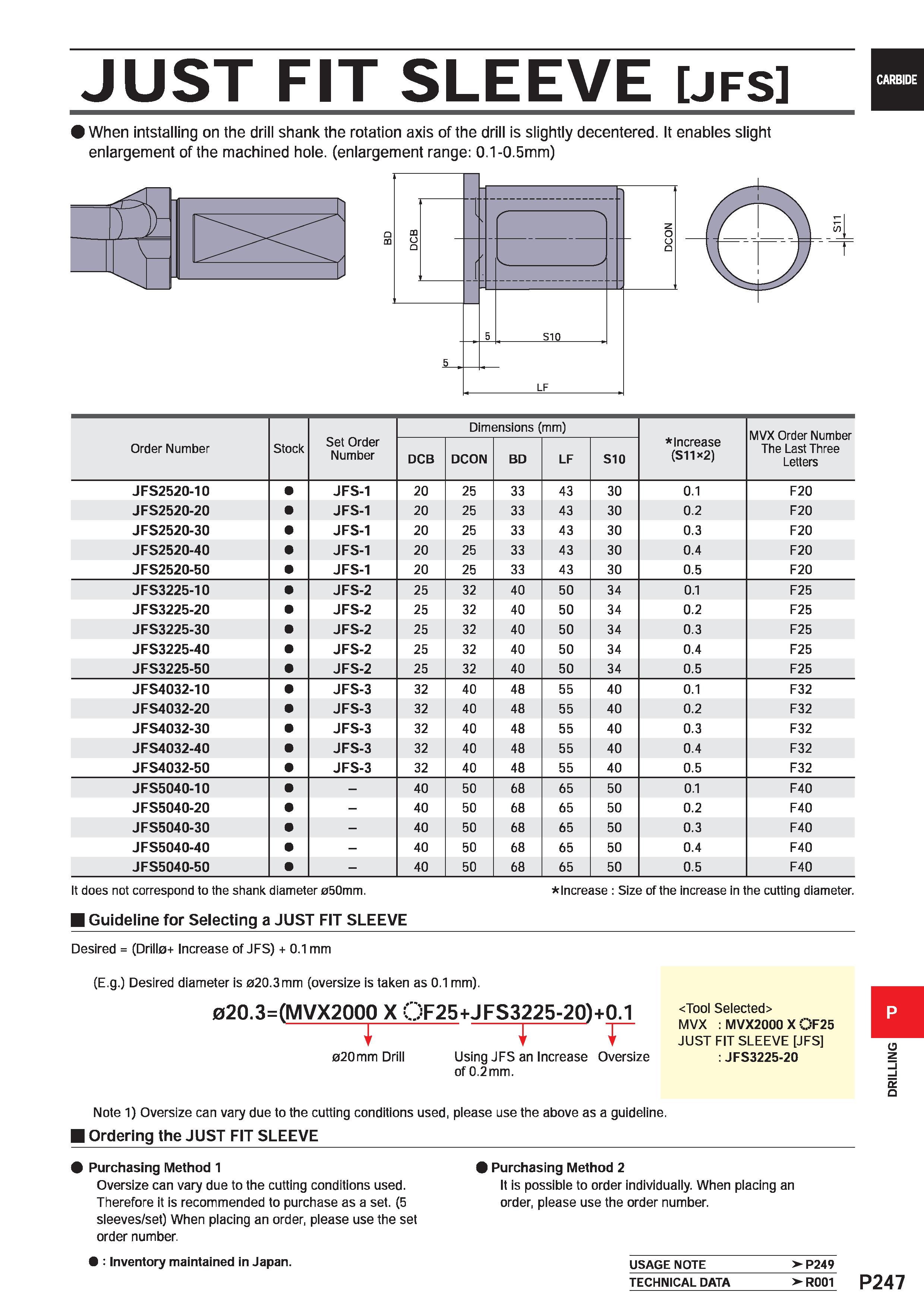

JUST FIT SLEEVE jfs When installing on the drill shank the rotation axis of the drill is slightly decentered. It enables slight enlargement of the machined hole, (enlargement range: 0.1-0.5mm) Order Number Stock Set Order Number Dimensions (mm) Increase (S11x2) MVX Order Number The Last Three Letters DCB CON BD LF S10 JFS2520-10 JFS-1 20 25 33 43 30 0.1 F20 JFS2520-20 JFS-1 20 25 33 43 30 0.2 F20 JFS2520-30 JFS-1 20 25 33 43 30 0.3 F20 JFS2520-40 JFS-1 20 25 33 43 30 0.4 F20 JFS2520-50 JFS-1 20 25 33 43 30 0.5 F20 JFS3225-10 JFS-2 25 32 40 50 34 0.1 F25 JFS3225-20 JFS-2 25 32 40 50 34 0.2 F25 JFS3225-30 JFS-2 25 32 40 50 34 0.3 F25 JFS3225-40 JFS-2 25 32 40 50 34 0.4 F25 JFS3225-50 JFS-2 25 32 40 50 34 0.5 F25 JFS4032-10 JFS-3 32 40 48 55 40 0.1 F32 JFS4032-20 JFS-3 32 40 48 55 40 0.2 F32 JFS4032-30 JFS-3 32 40 48 55 40 0.3 F32 JFS4032-40 JFS-3 32 40 48 55 40 0.4 F32 JFS4032-50 JFS-3 32 40 48 55 40 0.5 F32 JFS5040-10 - 40 50 68 65 50 0.1 F40 JFS5040-20 - 40 50 68 65 50 0.2 F40 JFS5040-30 - 40 50 68 65 50 0.3 F40 JFS5040-40 - 40 50 68 65 50 0.4 F40 JFS5040-50 - 40 50 68 65 50 0.5 F40 It does not correspond to the shank diameter 050mm. lncrease : Size of the increase in the cutting diameter. Guideline for Selecting a JUST FIT SLEEVE Desired = (Drill0+ Increase of JFS) + 0.1 mm (E.g.) Desired diameter is 020.3mm (oversize is taken as 0.1 mm). 02O.3=(MVX2OOO X QF25+JFS3225-20)+0.1 I I 020mm Drill Using JFS an Increase Oversize of 0.2mm. Note 1) Oversize can vary due to the cutting conditions used, please use the above as a guideline. Ordering the JUST FIT SLEEVE Purchasing Method 1 Oversize can vary due to the cutting conditions used. Therefore it is recommended to purchase as a set. (5 sleeves/set) When placing an order, please use the set order number. : Inventory maintained in Japan. USAGE NOTE >- P249 Purchasing Method 2 It is possible to order individually. When placing an order, please use the order number. Tool Selected> MVX : MVX2000 X OF25 JUST FIT SLEEVE JFS : JFS3225-20 TECHNICAL DATA > R001
