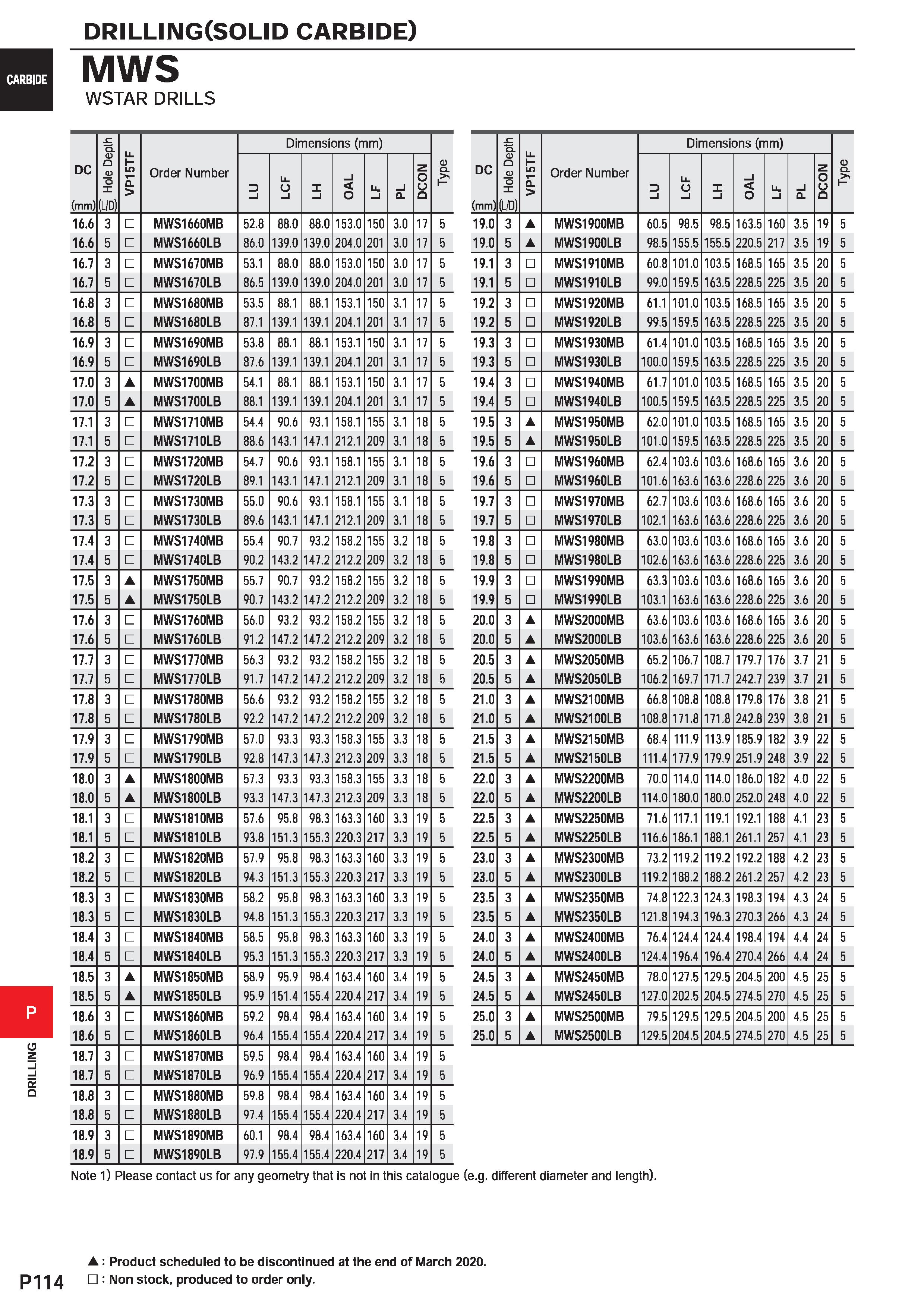

DRILLING CARBIDE P114 DRILLING(SOLID carbide) MWS WSTAR DRILLS DC (mm) tz Q. D O D 0 1 (L/D) VP15TF Order Number Dimensions (mm) D Q. D l Li. O l X i i O Li. l i Q. z a 16.6 3 MWS1660MB 52.8 88.0 88.0 153.0 150 3.0 17 5 16.6 5 MWS1660LB 86.0 139.0 139.0 204.0 201 3.0 17 5 16.7 3 MWS1670MB 53.1 88.0 88.0 153.0 150 3.0 17 5 16.7 5 MWS1670LB 86.5 139.0 139.0 204.0 201 3.0 17 5 16.8 3 MWS1680MB 53.5 88.1 88.1 153.1 150 3.1 17 5 16.8 5 MWS1680LB 87.1 139.1 139.1 204.1 201 3.1 17 5 16.9 3 MWS1690MB 53.8 88.1 88.1 153.1 150 3.1 17 5 16.9 5 MWS1690LB 87.6 139.1 139.1 204.1 201 3.1 17 5 17.0 3 MWS1700MB 54.1 88.1 88.1 153.1 150 3.1 17 5 17.0 5 MWS1700LB 88.1 139.1 139.1 204.1 201 3.1 17 5 17.1 3 MWS1710MB 54.4 90.6 93.1 158.1 155 3.1 18 5 17.1 5 MWS1710LB 88.6 143.1 147.1 212.1 209 3.1 18 5 17.2 3 MWS1720MB 54.7 90.6 93.1 158.1 155 3.1 18 5 17.2 5 MWS1720LB 89.1 143.1 147.1 212.1 209 3.1 18 5 17.3 3 MWS1730MB 55.0 90.6 93.1 158.1 155 3.1 18 5 17.3 5 MWS1730LB 89.6 143.1 147.1 212.1 209 3.1 18 5 17.4 3 MWS1740MB 55.4 90.7 93.2 158.2 155 3.2 18 5 17.4 5 MWS1740LB 90.2 143.2 147.2 212.2 209 3.2 18 5 17.5 3 MWS1750MB 55.7 90.7 93.2 158.2 155 3.2 18 5 17.5 5 MWS1750LB 90.7 143.2 147.2 212.2 209 3.2 18 5 17.6 3 MWS1760MB 56.0 93.2 93.2 158.2 155 3.2 18 5 17.6 5 MWS1760LB 91.2 147.2 147.2 212.2 209 3.2 18 5 17.7 3 MWS1770MB 56.3 93.2 93.2 158.2 155 3.2 18 5 17.7 5 MWS1770LB 91.7 147.2 147.2 212.2 209 3.2 18 5 17.8 3 MWS1780MB 56.6 93.2 93.2 158.2 155 3.2 18 5 17.8 5 MWS1780LB 92.2 147.2 147.2 212.2 209 3.2 18 5 17.9 3 MWS1790MB 57.0 93.3 93.3 158.3 155 3.3 18 5 17.9 5 MWS1790LB 92.8 147.3 147.3 212.3 209 3.3 18 5 18.0 3 MWS1800MB 57.3 93.3 93.3 158.3 155 3.3 18 5 18.0 5 MWS1800LB 93.3 147.3 147.3 212.3 209 3.3 18 5 18.1 3 MWS1810MB 57.6 95.8 98.3 163.3 160 3.3 19 5 18.1 5 MWS1810LB 93.8 151.3 155.3 220.3 217 3.3 19 5 18.2 3 MWS1820MB 57.9 95.8 98.3 163.3 160 3.3 19 5 18.2 5 MWS1820LB 94.3 151.3 155.3 220.3 217 3.3 19 5 18.3 3 MWS1830MB 58.2 95.8 98.3 163.3 160 3.3 19 5 18.3 5 MWS1830LB 94.8 151.3 155.3 220.3 217 3.3 19 5 18.4 3 MWS1840MB 58.5 95.8 98.3 163.3 160 3.3 19 5 18.4 5 MWS1840LB 95.3 151.3 155.3 220.3 217 3.3 19 5 18.5 3 MWS1850MB 58.9 95.9 98.4 163.4 160 3.4 19 5 18.5 5 MWS1850LB 95.9 151.4 155.4 220.4 217 3.4 19 5 18.6 3 MWS1860MB 59.2 98.4 98.4 163.4 160 3.4 19 5 18.6 5 MWS1860LB 96.4 155.4 155.4 220.4 217 3.4 19 5 18.7 3 MWS1870MB 59.5 98.4 98.4 163.4 160 3.4 19 5 18.7 5 MWS1870LB 96.9 155.4 155.4 220.4 217 3.4 19 5 18.8 3 MWS1880MB 59.8 98.4 98.4 163.4 160 3.4 19 5 18.8 5 MWS1880LB 97.4 155.4 155.4 220.4 217 3.4 19 5 18.9 3 MWS1890MB 60.1 98.4 98.4 163.4 160 3.4 19 5 18.9 5 MWS1890LB 97.9 155.4 155.4 220.4 217 3.4 19 5 DC (mm) 5 Hole Depth VP15TF Order Number Dimensions (mm) D CL 3 l Ll. o l X i i O Ll. l i 0. DCON 19.0 3 MWS1900MB 60.5 98.5 98.5 163.5 160 3.5 19 5 19.0 5 MWS1900LB 98.5 155.5 155.5 220.5 217 3.5 19 5 19.1 3 MWS1910MB 60.8 101.0 103.5 168.5 165 3.5 20 5 19.1 5 MWS1910LB 99.0 159.5 163.5 228.5 225 3.5 20 5 19.2 3 MWS1920MB 61.1 101.0 103.5 168.5 165 3.5 20 5 19.2 5 MWS1920LB 99.5 159.5 163.5 228.5 225 3.5 20 5 19.3 3 MWS1930MB 61.4 101.0 103.5 168.5 165 3.5 20 5 19.3 5 MWS1930LB 100.0 159.5 163.5 228.5 225 3.5 20 5 19.4 3 MWS1940MB 61.7 101.0 103.5 168.5 165 3.5 20 5 19.4 5 MWS1940LB 100.5 159.5 163.5 228.5 225 3.5 20 5 19.5 3 MWS1950MB 62.0 101.0 103.5 168.5 165 3.5 20 5 19.5 5 MWS1950LB 101.0 159.5 163.5 228.5 225 3.5 20 5 19.6 3 MWS1960MB 62.4 103.6 103.6 168.6 165 3.6 20 5 19.6 5 MWS1960LB 101.6 163.6 163.6 228.6 225 3.6 20 5 19.7 3 MWS1970MB 62.7 103.6 103.6 168.6 165 3.6 20 5 19.7 5 MWS1970LB 102.1 163.6 163.6 228.6 225 3.6 20 5 19.8 3 MWS1980MB 63.0 103.6 103.6 168.6 165 3.6 20 5 19.8 5 MWS1980LB 102.6 163.6 163.6 228.6 225 3.6 20 5 19.9 3 MWS1990MB 63.3 103.6 103.6 168.6 165 3.6 20 5 19.9 5 MWS1990LB 103.1 163.6 163.6 228.6 225 3.6 20 5 20.0 3 MWS2000MB 63.6 103.6 103.6 168.6 165 3.6 20 5 20.0 5 MWS2000LB 103.6 163.6 163.6 228.6 225 3.6 20 5 20.5 3 MWS2050MB 65.2 106.7 108.7 179.7 176 3.7 21 5 20.5 5 MWS2050LB 106.2 169.7 171.7 242.7 239 3.7 21 5 21.0 3 MWS2100MB 66.8 108.8 108.8 179.8 176 3.8 21 5 21.0 5 MWS2100LB 108.8 171.8 171.8 242.8 239 3.8 21 5 21.5 3 MWS2150MB 68.4 111.9 113.9 185.9 182 3.9 22 5 21.5 5 MWS2150LB 111.4 177.9 179.9 251.9 248 3.9 22 5 22.0 3 MWS2200MB 70.0 114.0 114.0 186.0 182 4.0 22 5 22.0 5 MWS2200LB 114.0 180.0 180.0 252.0 248 4.0 22 5 22.5 3 MWS2250MB 71.6 117.1 119.1 192.1 188 4.1 23 5 22.5 5 MWS2250LB 116.6 186.1 188.1 261.1 257 4.1 23 5 23.0 3 MWS2300MB 73.2 119.2 119.2 192.2 188 4.2 23 5 23.0 5 MWS2300LB 119.2 188.2 188.2 261.2 257 4.2 23 5 23.5 3 MWS2350MB 74.8 122.3 124.3 198.3 194 4.3 24 5 23.5 5 MWS2350LB 121.8 194.3 196.3 270.3 266 4.3 24 5 24.0 3 MWS2400MB 76.4 124.4 124.4 198.4 194 4.4 24 5 24.0 5 MWS2400LB 124.4 196.4 196.4 270.4 266 4.4 24 5 24.5 3 MWS2450MB 78.0 127.5 129.5 204.5 200 4.5 25 5 24.5 5 MWS2450LB 127.0 202.5 204.5 274.5 270 4.5 25 5 25.0 3 MWS2500MB 79.5 129.5 129.5 204.5 200 4.5 25 5 25.0 5 MWS2500LB 129.5 204.5 204.5 274.5 270 4.5 25 5 Note 1) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). : Product scheduled to be discontinued at the end of March 2020. : Non stock, produced to order only.
