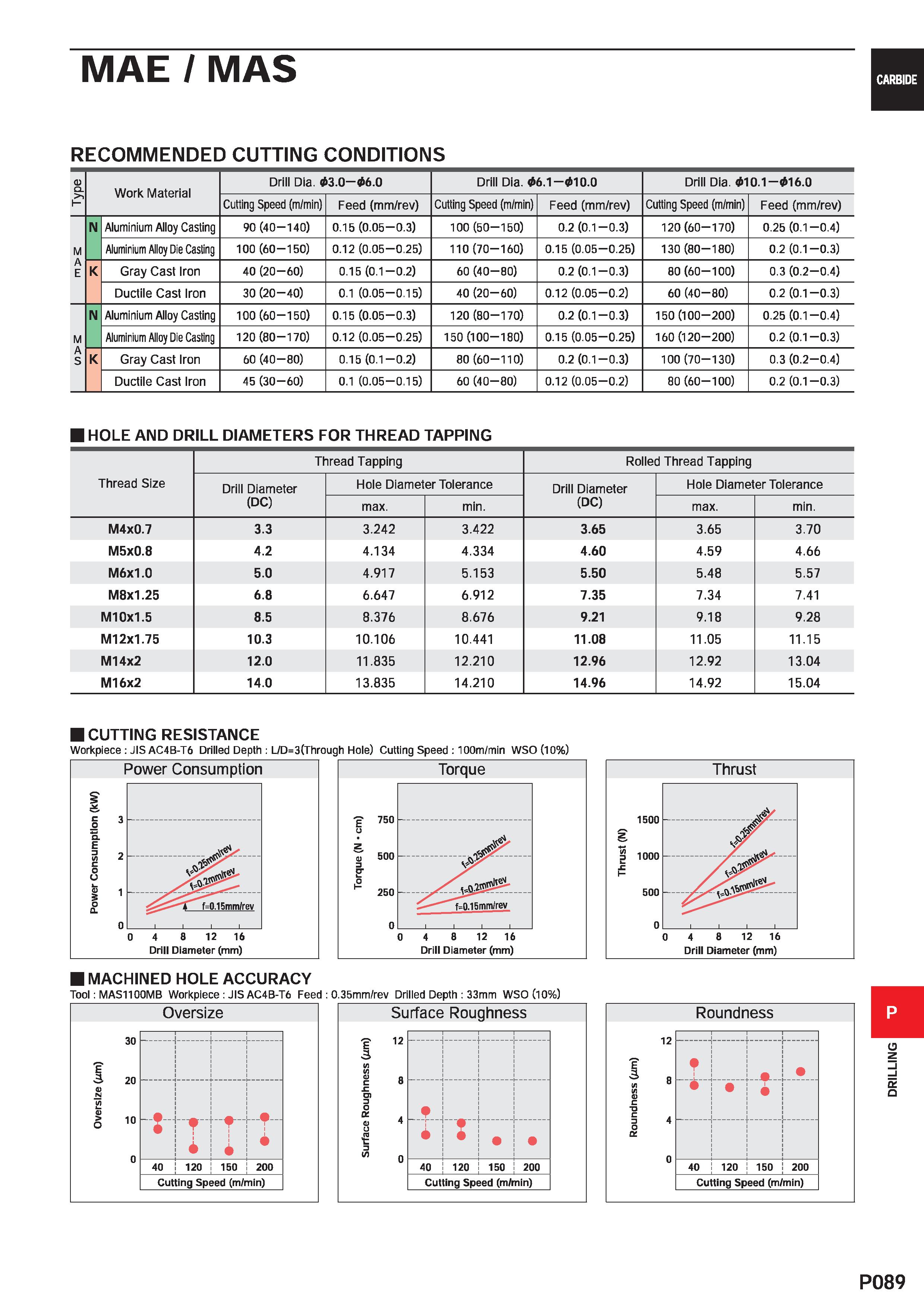

MAE/MAS RECOMMENDED CUTTING CONDITIONS CARBIDE D CL 1- Work Material Drill Dia. 3.0-06.0 Drill Dia. 6.1- 10.0 Drill Dia. 10.1-016.0 Cutting Speed (m/min) Feed (mm/rev) Cutting Speed (m/min) Feed (mm/rev) Cutting Speed (m/min) Feed (mm/rev) M A E N Aluminium Alloy Casting 90(40-140) 0.15 (0.05-0.3) 100(50-150) 0.2 (0.1-0.3) 120(60-170) 0.25 (0.1-0.4) Aluminium Alloy Die Casting 100 (60-150) 0.12 (0.05-0.25) 110 (70-160) 0.15 (0.05-0.25) 130 (80-180) 0.2 (0.1-0.3) K Gray Cast Iron 40 (20-60) 0.15 (0.1-0.2) 60 (40-80) 0.2 (0.1-0.3) 80(60-100) 0.3 (0.2 0.4) Ductile Cast Iron 30 (20-40) 0.1 (0.05-0.15) 40 (20-60) 0.12 (0.05-0.2) 60 (40-80) 0.2 (0.1-0.3) M A S N Aluminium Alloy Casting 100(60-150) 0.15 (0.05-0.3) 120 (80-170) 0.2 (0.1-0.3) 150(100-200) 0.25(0.1-0.4) Aluminium Alloy Die Casting 120(80-170) 0.12(0.05-0.25) 150(100-180) 0.15 (0.05-0.25) 160(120-200) 0.2 (0.1-0.3) K Gray Cast Iron 60 (40-80) 0.15 (0.1-0.2) 80 (60-110) 0.2 (0.1-0.3) 100 (70-130) 0.3 (0.2 0.4) Ductile Cast Iron 45 (30-60) 0.1 (0.05-0.15) 60 (40-80) 0.12 (0.05-0.2) 80 (60-100) 0.2 (0.1-0.3) HOLE AND DRILL DIAMETERS FOR THREAD TAPPING Thread Size Thread Tapping Rolled Thread Tapping Drill Diameter (DC) Hole Diameter Tolerance Drill Diameter (DC) Hole Diameter Tolerance max. min. max. min. M4x0.7 3.3 3.242 3.422 3.65 3.65 3.70 M5x0.8 4.2 4.134 4.334 4.60 4.59 4.66 M6X1.0 5.0 4.917 5.153 5.50 5.48 5.57 M8X1.25 6.8 6.647 6.912 7.35 7.34 7.41 M10x1.5 8.5 8.376 8.676 9.21 9.18 9.28 M12X1.75 10.3 10.106 10.441 11.08 11.05 11.15 M14x2 12.0 11.835 12.210 12.96 12.92 13.04 M16x2 14.0 13.835 14.210 14.96 14.92 15.04 CUTTING RESISTANCE Workpiece : JISAC4B-T6 Drilled Depth : L/D=3(Through Hole) Cutting Speed : lOOm/min WSO(lO%) s o CL Power Consumption Drill Diameter (mm) Torque Drill Diameter (mm) Thrust Drill Diameter (mm) MACHINED HOLE ACCURACY Tool: MAS1100MB Workpiece : JIS AC4B-T6 Feed : 0.35mm/rev Drilled Depth : 33mm WSO (10%) Oversize r- - - I f T" 40 120 150 200 Cutting Speed (m/min) Surface Roughness : 40 120 150 200 Cutting Speed (m/min) Roundness f 4 40 120 150 200 Cutting Speed (m/min) P089 DRILLING
