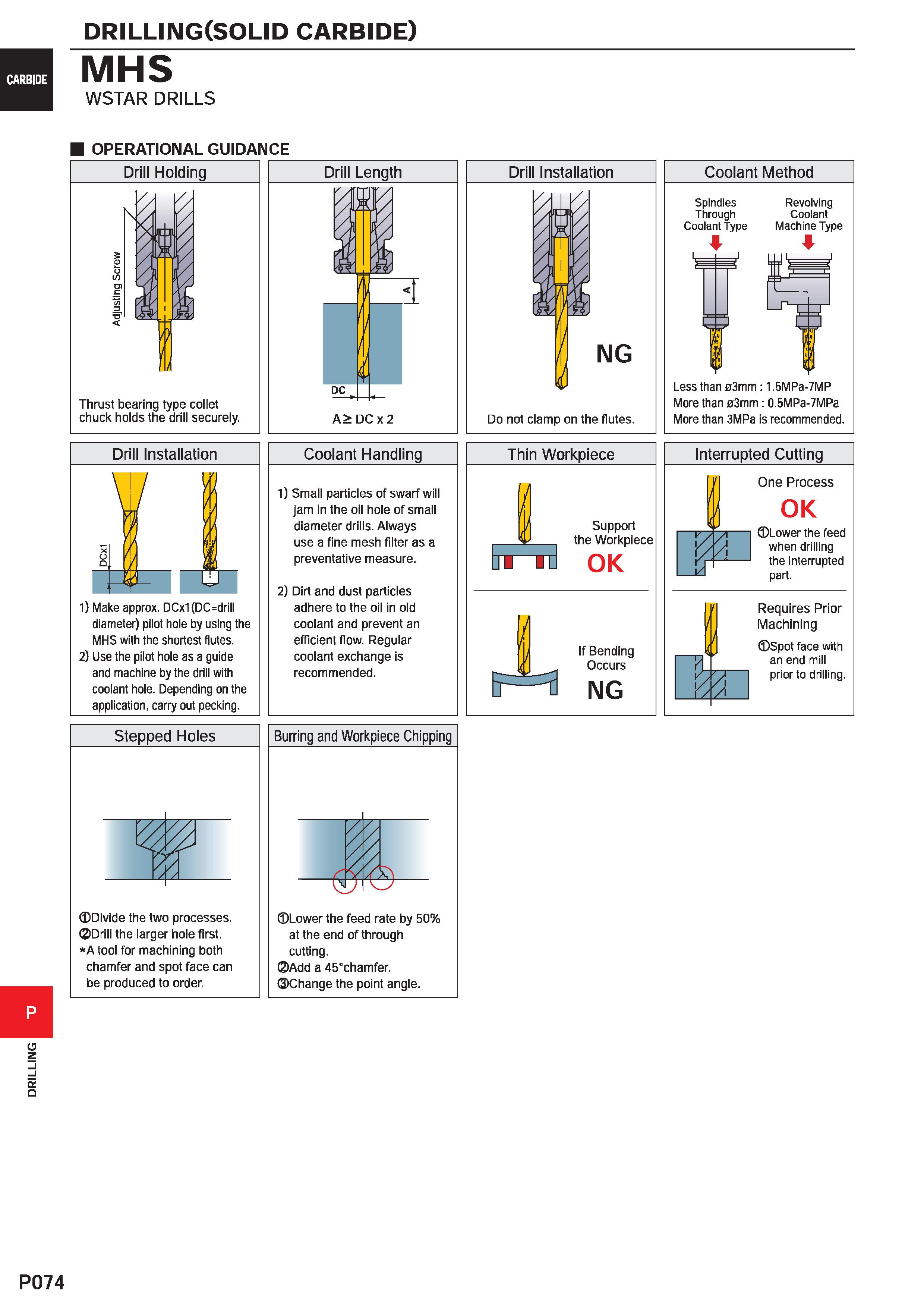

DRILLING DRILLING(SOLID carbide) MHS WSTAR DRILLS OPERATIONAL GUIDANCE Drill Holding Thrust bearing type collet chuck holds the drill securely. Drill Installation 1) Make approx. DCx1 (DC=drill diameter) pilot hole by using the MHS with the shortest flutes. 2) Use the pilot hole as a guide and machine by the drill with coolant hole. Depending on the application, carry out pecking. Stepped Holes Divide the two processes, Drill the larger hole first, A tool for machining both chamfer and spot face can be produced to order, Drill Length A> DC x 2 Drill Installation NG Do not clamp on the flutes. Coolant Method Spindles Through Coolant Type Revolving Coolant Machine Type Less than 03mm: 1,5MPa-7MP More than 03mm : 0.5MPa-7MPa More than 3MPa is recommended. Coolant Handling 1) Small particles of swarf will jam in the oil hole of small diameter drills. Always use a fine mesh filter as a preventative measure. 2) Dirt and dust particles adhere to the oil in old coolant and prevent an efficient flow. Regular coolant exchange is recommended. Thin Workpiece Support the Workpiece hi Lid ok h NG if Bending Occurs Interrupted Cutting & One Process OK Lower the feed when drilling the interrupted part. v Requires Prior Machining Spot face with an end mill prior to drilling. Burring and Workpiece Chipping r Lower the at the end cutting. Add a 45° Change th feed rate by 50% of through :hamfer. e point angle. P074
