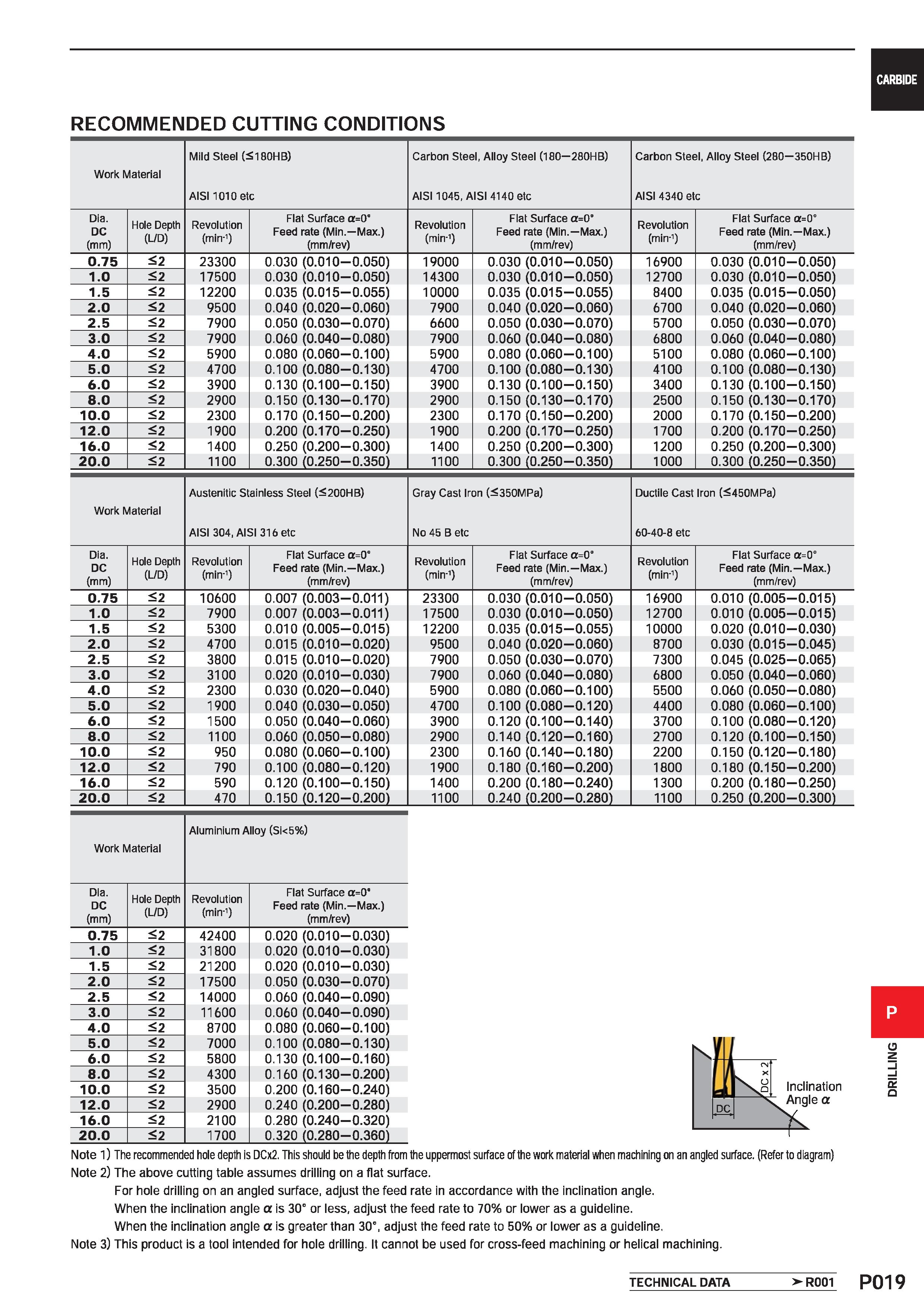

CARBIDE RECOMMENDED CUTTING CONDITIONS Work Material Mild Steel (5180HB) AIS11010 etc Carbon Steel, Alloy Steel (180 280HB) AIS11045, AISI 4140 etc Carbon Steel, Alloy Steel (280 350HB) AISI 4340 etc Dia. DC (mm) Hole Depth (L/D) Revolution (min-1) Flat Surface a=0" Feed rate (Min. Max.) (mm/rev) Revolution (min-1) Flat Surface a=0" Feed rate (Min. Max.) (mm/rev) Revolution (min-1) Flat Surface a=0° Feed rate (Min. Max.) (mm/rev) 0.75 >2 23300 0.030 (0.010-0.050) 19000 0.030 (0.010-0.050) 16900 0.030 (0.010-0.050) 1.0 2 17500 0.030 (0.010-0.050) 14300 0.030 (0.010-0.050) 12700 0.030 (0.010-0.050) 1.5 2 12200 0.035 (0.015-0.055) 10000 0.035 (0.015-0.055) 8400 0.035 (0.015-0.050) 2.0 >2 9500 0.040 (0.020-0.060) 7900 0.040 (0.020-0.060) 6700 0.040 (0.020-0.060) 2.5 2 7900 0.050 (0.030-0.070) 6600 0.050 (0.030-0.070) 5700 0.050 (0.030-0.070) 3.0 2 7900 0.060 (0.040-0.080) 7900 0.060 (0.040-0.080) 6800 0.060 (0.040-0.080) 4.0 2 5900 0.080 (0.060-0.100) 5900 0.080 (0.060-0.100) 5100 0.080 (0.060-0.100) 5.0 2 4700 0.100 (0.080-0.130) 4700 0.100 (0.080-0.130) 4100 0.100 (0.080-0.130) 6.0 2 3900 0.130 (0.100-0.150) 3900 0.130 (0.100-0.150) 3400 0.130 (0.100-0.150) 8.0 2 2900 0.150 (0.130-0.170) 2900 0.150 (0.130-0.170) 2500 0.150 (0.130-0.170) 10.0 2 2300 0.170 (0.150-0.200) 2300 0.170 (0.150-0.200) 2000 0.170 (0.150-0.200) 12.0 2 1900 0.200 (0.170-0.250) 1900 0.200 (0.170-0.250) 1700 0.200 (0.170-0.250) 16.0 2 1400 0.250 (0.200-0.300) 1400 0.250 (0.200-0.300) 1200 0.250 (0.200-0.300) 20.0 2 1100 0.300 (0.250-0.350) 1100 0.300 (0.250-0.350) 1000 0.300 (0.250-0.350) Work Material Austenitic Stainless Steel ( 200HB) AISI 304, AISI 316 etc Gray Cast Iron (<350MPa) No 45 B etc Ductile Cast Iron (<450MPa) 60-40-8 etc Dia. DC (mm) Hole Depth (L/D) Revolution (min-1) Flat Surface a=0” Feed rate (Min. Max.) (mm/rev) Revolution (min-1) Flat Surface ct=0" Feed rate (Min. Max.) (mm/rev) Revolution (min-1) Flat Surface a=0° Feed rate (Min. Max.) (mm/rev) 0.75 2 10600 0.007 (0.003-0.011) 23300 0.030 (0.010-0.050) 16900 0.010 (0.005-0.015) 1.0 2 7900 0.007 (0.003-0.011) 17500 0.030 (0.010-0.050) 12700 0.010 (0.005-0.015) 1.5 2 5300 0.010 (0.005-0.015) 12200 0.035 (0.015-0.055) 10000 0.020 (0.010-0.030) 2.0 2 4700 0.015 (0.010-0.020) 9500 0.040 (0.020-0.060) 8700 0.030 (0.015-0.045) 2.5 2 3800 0.015 (0.010-0.020) 7900 0.050 (0.030-0.070) 7300 0.045 (0.025-0.065) 3.0 2 3100 0.020 (0.010-0.030) 7900 0.060 (0.040-0.080) 6800 0.050 (0.040-0.060) 4.0 2 2300 0.030 (0.020-0.040) 5900 0.080 (0.060-0.100) 5500 0.060 (0.050-0.080) 5.0 2 1900 0.040 (0.030-0.050) 4700 0.100 (0.080-0.120) 4400 0.080 (0.060-0.100) 6.0 2 1500 0.050 (0.040-0.060) 3900 0.120 (0.100-0.140) 3700 0.100 (0.080-0.120) 8.0 2 1100 0.060 (0.050-0.080) 2900 0.140 (0.120-0.160) 2700 0.120 (0.100-0.150) 10.0 2 950 0.080 (0.060-0.100) 2300 0.160 (0.140-0.180) 2200 0.150 (0.120-0.180) 12.0 2 790 0.100 (0.080-0.120) 1900 0.180 (0.160-0.200) 1800 0.180 (0.150-0.200) 16.0 2 590 0.120 (0.100-0.150) 1400 0.200 (0.180-0.240) 1300 0.200 (0.180-0.250) 20.0 2 470 0.150 (0.120-0.200) 1100 0.240 (0.200-0.280) 1100 0.250 (0.200-0.300) Work Material Aluminium Alloy (Si<5%) Dia. DC (mm) Hole Depth (L/D) Revolution (min-1) Flat Surface a=0" Feed rate (Min. Max.) (mm/rev) 0.75 2 42400 0.020 (0.010-0.030) 1.0 2 31800 0.020 (0.010-0.030) 1.5 2 21200 0.020 (0.010-0.030) 2.0 2 17500 0.050 (0.030-0.070) 2.5 2 14000 0.060 (0.040-0.090) 3.0 2 11600 0.060 (0.040-0.090) 4.0 2 8700 0.080 (0.060-0.100) 5.0 2 7000 0.100 (0.080-0.130) h 6.0 2 5800 0.130 (0.100-0.160) 8.0 2 4300 0.160 (0.130-0.200) J r-r L x Inclination 10.0 2 3500 0.200 (0.160-0.240) 12.0 2 2900 0.240 (0.200-0.280) nr >s. Angle a 16.0 2 2100 0.280 (0.240-0.320) 20.0 2 1700 0.320 (0.280-0.360) Note 1) The recommended hole depth is DCx2. This should be the depth from the uppermost surface of the work material when machining on an angled surface. (Refer to diagram) Note 2) The above cutting table assumes drilling on a flat surface. For hole drilling on an angled surface, adjust the feed rate in accordance with the inclination angle. When the inclination angle a is 30° or less, adjust the feed rate to 70% or lower as a guideline. When the inclination angle a is greater than 30°, adjust the feed rate to 50% or lower as a guideline. Note 3) This product is a tool intended for hole drilling. It cannot be used for cross-feed machining or helical machining. TECHNICAL DATA > R001 P019 DRILLING
