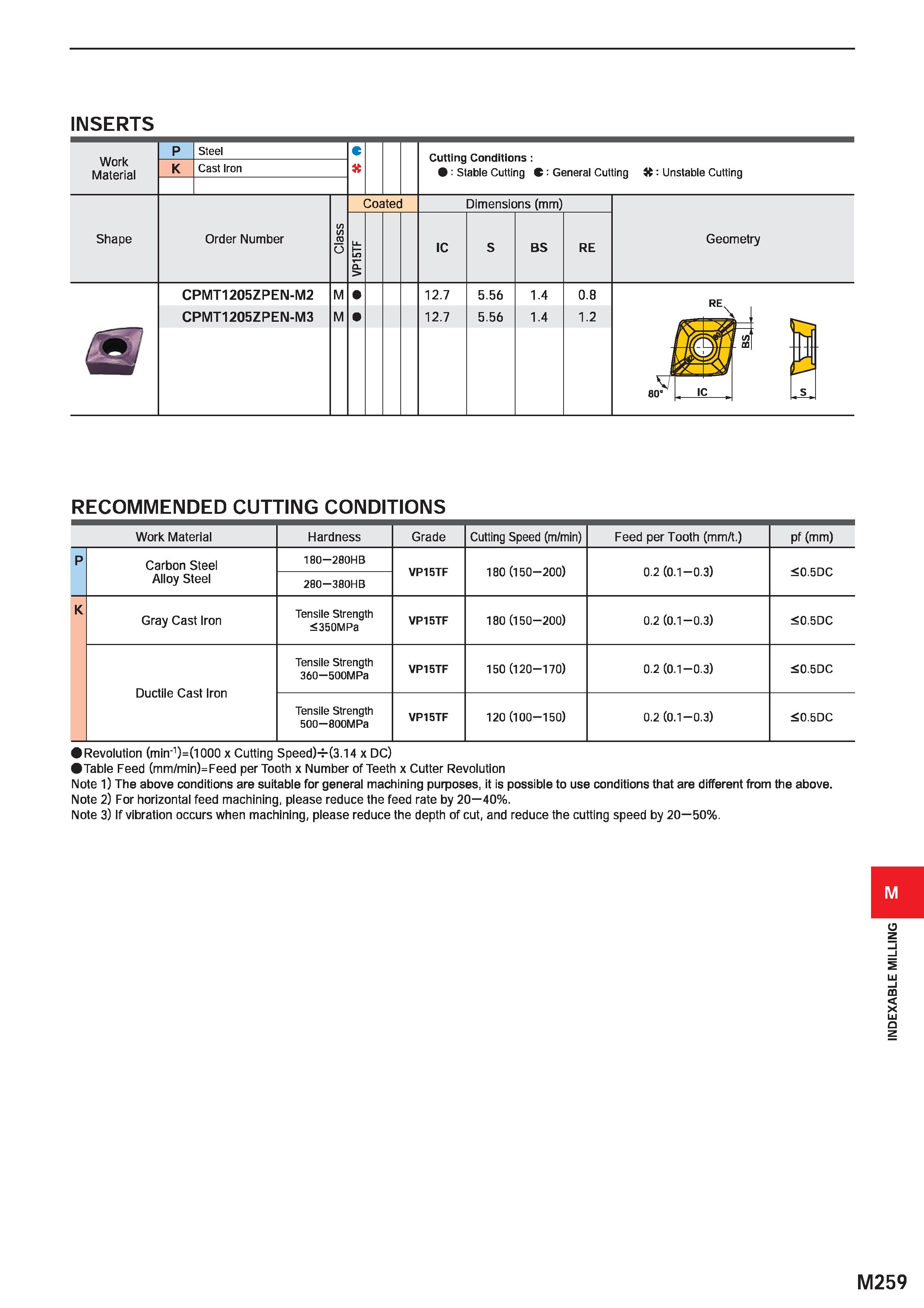

INSERTS Work Material Steel Cast Iron Cutting Conditions : : Stable Cutting C: General Cutting K: Unstable Cutting Shape Order Number Coated o Dimensions (mm) IC BS RE Geometry CPMT1205ZPEN-M2 CPMT1205ZPEN-M3 12.7 12.7 5.56 5.56 1.4 1.4 0.8 1.2 B RECOMMENDED CUTTING CONDITIONS Work Material Hardness Grade Cutting Speed (m/min) Feed per Tooth (mm/t.) pf (mm) P Carbon Steel Alloy Steel 180 280HB 280 380HB VP15TF 180(150-200) 0.2 (0.1-0.3) 0.5DC K Gray Cast Iron Tensile Strength 350MPa VP15TF 180 (150-200) 0.2 (0.1-0.3) 0.5DC Ductile Cast Iron Tensile Strength 360 500MPa VP15TF 150 (120-170) 0.2 (0.1-0.3) i0.5DC Tensile Strength 500 800MPa VP15TF 120 (100-150) 0.2 (0.1-0.3) 0.5DC Revolution (min'1)=(l000 x Cutting Speed)-r(3.14 x DC) Table Feed (mm/min)=Feed per Tooth x Number of Teeth x Cutter Revolution Note 1) The above conditions are suitable for general machining purposes, it is possible to use conditions that are different from the above. Note 2) For horizontal feed machining, please reduce the feed rate by 20 40%. Note 3) If vibration occurs when machining, please reduce the depth ofcut, and reduce the cutting speed by 20 50%. M M259 INDEXABLE MILLING
