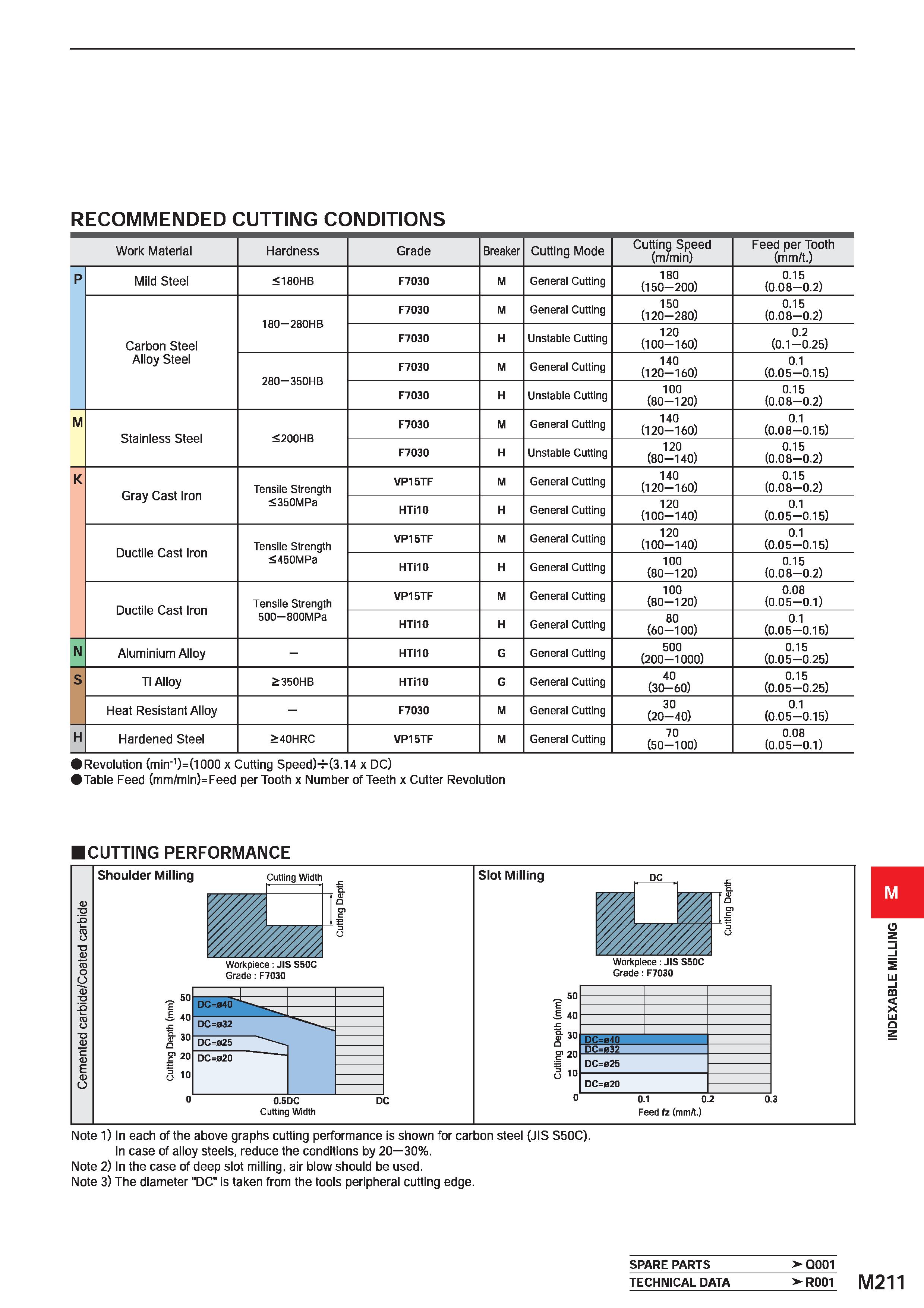

RECOMMENDED CUTTING CONDITIONS Work Material Hardness Grade Breaker Cutting Mode Cutting Speed (m/min) Feed per Tooth (mm/t.) P Mild Steel 180HB F7030 M General Cutting 180 (150-200) 0.15 (0.08-0.2) Carbon Steel Alloy Steel 180 280HB F7030 M General Cutting 150 (120-280) 0.15 (0.08-0.2) F7030 H Unstable Cutting 120 (100-160) 0.2 (0.1-0.25) 280 350HB F7030 M General Cutting 140 (120-160) 0.1 (0.05-0.15) F7030 H Unstable Cutting 100 (80-120) 0.15 (0.08-0.2) M Stainless Steel 200HB F7030 M General Cutting 140 (120-160) 0.1 (0.08-0.15) F7030 H Unstable Cutting 120 (80-140) 0.15 (0.08-0.2) K Gray Cast Iron Tensile Strength 350MPa VP15TF M General Cutting 140 (120-160) 0.15 (0.08-0.2) HTilO H General Cutting 120 (100-140) 0.1 (0.05-0.15) Ductile Cast Iron Tensile Strength 450MPa VP15TF M General Cutting 120 (100-140) 0.1 (0.05-0.15) HTilO H General Cutting 100 (80-120) 0.15 (0.08-0.2) Ductile Cast Iron Tensile Strength 500 800MPa VP15TF M General Cutting 100 (80-120) 0.08 (0.05-0.1) HTI10 H General Cutting 80 (60-100) 0.1 (0.05-0.15) N Aluminium Alloy - HTilO G General Cutting 500 (200-1000) 0.15 (0.05-0.25) S Ti Alloy £350HB HTilO G General Cutting 40 (30-60) 0.15 (0.05-0.25) Heat Resistant Alloy - F7030 M General Cutting 30 (20-40) 0.1 (0.05-0.15) H Hardened Steel >40HRC VP15TF M General Cutting 70 (50-100) 0.08 (0.05-0.1) Revolution (mirr1)=(l000 x Cutting Speed)-r(3.14 x DC) Table Feed (mm/min)=Feed per Tooth x Number of Teeth x Cutter Revolution CUTTING PERFORMANCE In case of alloy steels, reduce the conditions by 20 30%. Note 2) In the case of deep slot milling, air blow should be used, Note 3) The diameter "DC" is taken from the tools peripheral cutting edge. SPARE PARTS TECHNICAL DATA > Q001 > R001
