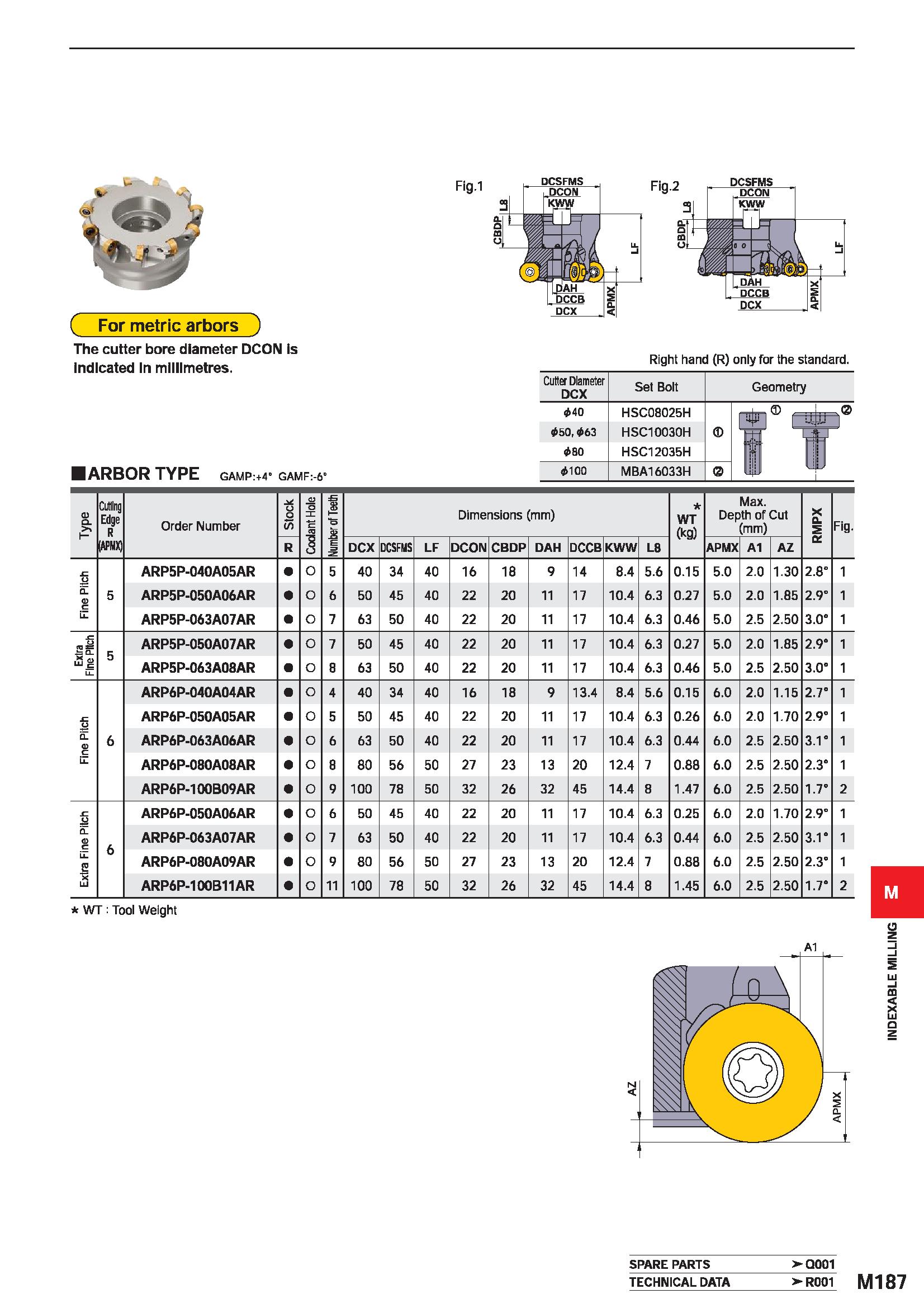

( For metric arbors; The cutter bore diameter DCON is Indicated In millimetres. Right hand (R) only for the standard. Cutter Diameter DCX 440 650,663 680 I ARBOR TYPE GAMP :+4° GAMF:-6° 6100 Set Bolt HSC08025H HSC10030H HSC12035H MBA16033H 0) 0->> 1 Cutting Edge R APMX) Order Number jm 75 Coolant Hole 1 s k E Dimensions (mm) WT (kg) Max. Depth of Cut (mm) X Q. s m Fig. R DCX DCSFMS LF DCON CBDP DAH DCCB KWW L8 APMX A1 AZ Fine Pitch 5 ARP5P-040A05AR O 5 40 34 40 16 18 9 14 8.4 5.6 0.15 5.0 2.0 1.30 2.8° 1 ARP5P-050A06AR O 6 B0 45 40 22 20 11 17 10.4 6.3 0.27 5.0 2.0 1.85 2.9° 1 ARP5P-063A07AR o 7 63 50 40 22 20 11 17 10.4 6.3 0.46 5.0 2.5 2.50 3.0° 1 S ARP5P-050A07AR o 7 50 45 40 22 20 11 17 10.4 6.3 0.27 5.0 2.0 1.85 2.9 1 LU J LL. ARP5P-063A08AR o 8 63 50 40 22 20 11 17 10.4 6.3 0.46 5.0 2.5 2.50 3.0° 1 ARP6P-040A04AR o 4 40 34 40 16 18 9 13.4 8.4 5.6 0.15 6.0 2.0 1.15 2.7° 1 C o ARP6P-050A05AR o 5 50 45 40 22 20 11 17 10.4 6.3 0.26 6.0 2.0 1.70 2.9° 1 ol 0) 6 ARP6P-063A06AR o 6 63 50 40 22 20 11 17 10.4 6.3 0.44 6.0 2.5 2.50 3.1° 1 iZ ARP6P-080A08AR o 8 80 56 50 27 23 13 20 12.4 7 0.88 6.0 2.5 2.50 2.3° 1 ARP6P-100B09AR o 9 100 78 50 32 26 32 45 14.4 8 1.47 6.0 2.5 2.50 1.7' 2 sz 9. ARP6P-050A06AR o 6 50 45 40 22 20 11 17 10.4 6.3 0.25 6.0 2.0 1.70 2.9° 1 CL 0 ARP6P-063A07AR o 7 63 50 40 22 20 11 17 10.4 6.3 0.44 6.0 2.5 2.50 3.1 1 LL. s ARP6P-080A09AR o 9 80 56 50 27 23 13 20 12.4 7 0.88 6.0 2.5 2.50 2.3° 1 "S LU ARP6P-100B11AR o 11 100 78 50 32 26 32 45 14.4 8 1.45 6.0 2.5 2.50 1.7° 2 Geometry 0 WT : Tool Weight SPARE PARTS >Q001 TECHNICAL DATA >R001 M M187 INDEXABLE MILLING
