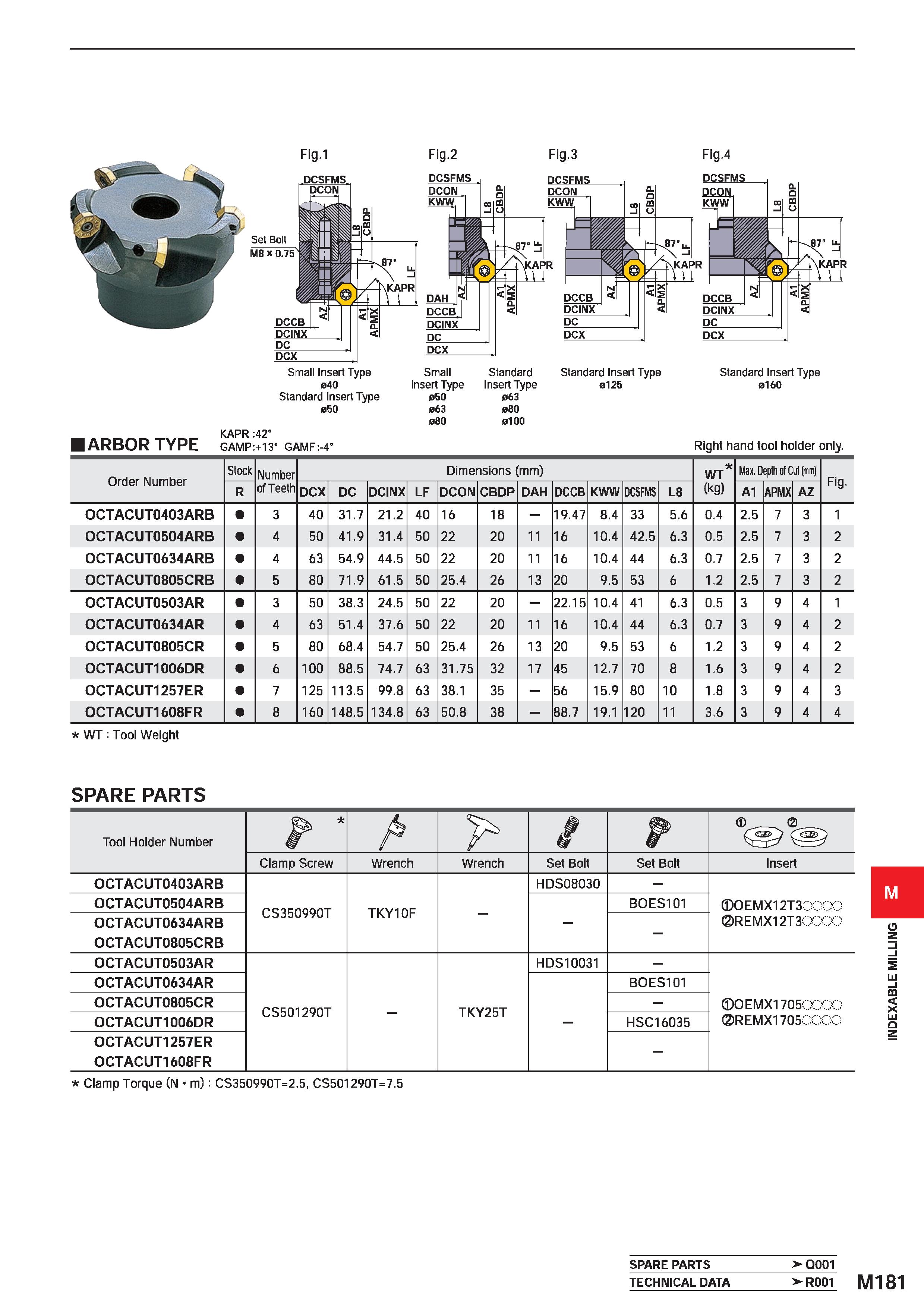

Small Insert Type 040 Standard Insert Type 050 KAPR :42” ARBOR TYPE GAMP:+13‘ GAMF:-4” Small Insert Type 050 063 080 Standard Standard Insert Type Insert Type 0125 063 080 0100 Standard Insert Type 0160 Right hand tool holder only. Fig.1 Fig.2 Fig.3 Fig.4 Order Number Stock Number of Teeth Dimensions (mm) WT (kg) Max, Depth of Cut (mm) Fig. R DCX DC DCINX LF DCON CBDP DAH DCCB KWW DCSFMS L8 A1 APMX AZ OCTACUT0403ARB 3 40 31.7 21.2 40 16 18 - 19.47 8.4 33 5.6 0.4 2.5 7 3 1 OCTACUT0504ARB 4 50 41.9 31.4 50 22 20 11 16 10.4 42.5 6.3 0.5 2.5 7 3 2 OCTACUT0634ARB 4 63 54.9 44.5 50 22 20 11 16 10.4 44 6.3 0.7 2.5 7 3 2 OCTACUT0805CRB 5 80 71.9 61.5 50 25.4 26 13 20 9.5 53 6 1.2 2.5 7 3 2 OCTACUT0503AR 3 50 38.3 24.5 50 22 20 - 22.15 10.4 41 6.3 0.5 3 9 4 1 OCTACUT0634AR 4 63 51.4 37.6 50 22 20 11 16 10.4 44 6.3 0.7 3 9 4 2 OCTACUT0805CR 5 80 68.4 54.7 50 25.4 26 13 20 9.5 53 6 1.2 3 9 4 2 OCTACUT1006DR 6 100 88.5 74.7 63 31.75 32 17 45 12.7 70 8 1.6 3 9 4 2 OCTACUT1257ER 7 125 113.5 99.8 63 38.1 35 - 56 15.9 80 10 1.8 3 9 4 3 OCTACUT1608FR 8 160 148.5 134.8 63 50.8 38 - 88.7 19.1 120 11 3.6 3 9 4 4 WT : Tool Weight SPARE PARTS Tool Holder Number f / Clamp Screw Wrench Wrench Set Bolt Set Bolt Insert OCTACUT0403ARB CS350990T TKY10F - HDS08030 OEMX12T30COQ REMX12T300Q0 OCTACUT0504ARB - BOES101 OCTACUT0634ARB OCTACUT0805CRB - OCT ACUT0503AR CS501290T - TKY25T HDS10031 OEMX17050000 REMX17050000 OCT ACUT0634AR - BOESIOI OCTACUT0805CR OCTACUT1006DR HSC16035 OCTACUT1257ER OCTACUTI6O8FR - Clamp Torque (N m): CS350990T=2.5, CS501290T=7.5 SPARE PARTS TECHNICAL DATA >-Q001 > R001 M181 INDEXABLE MILLING
