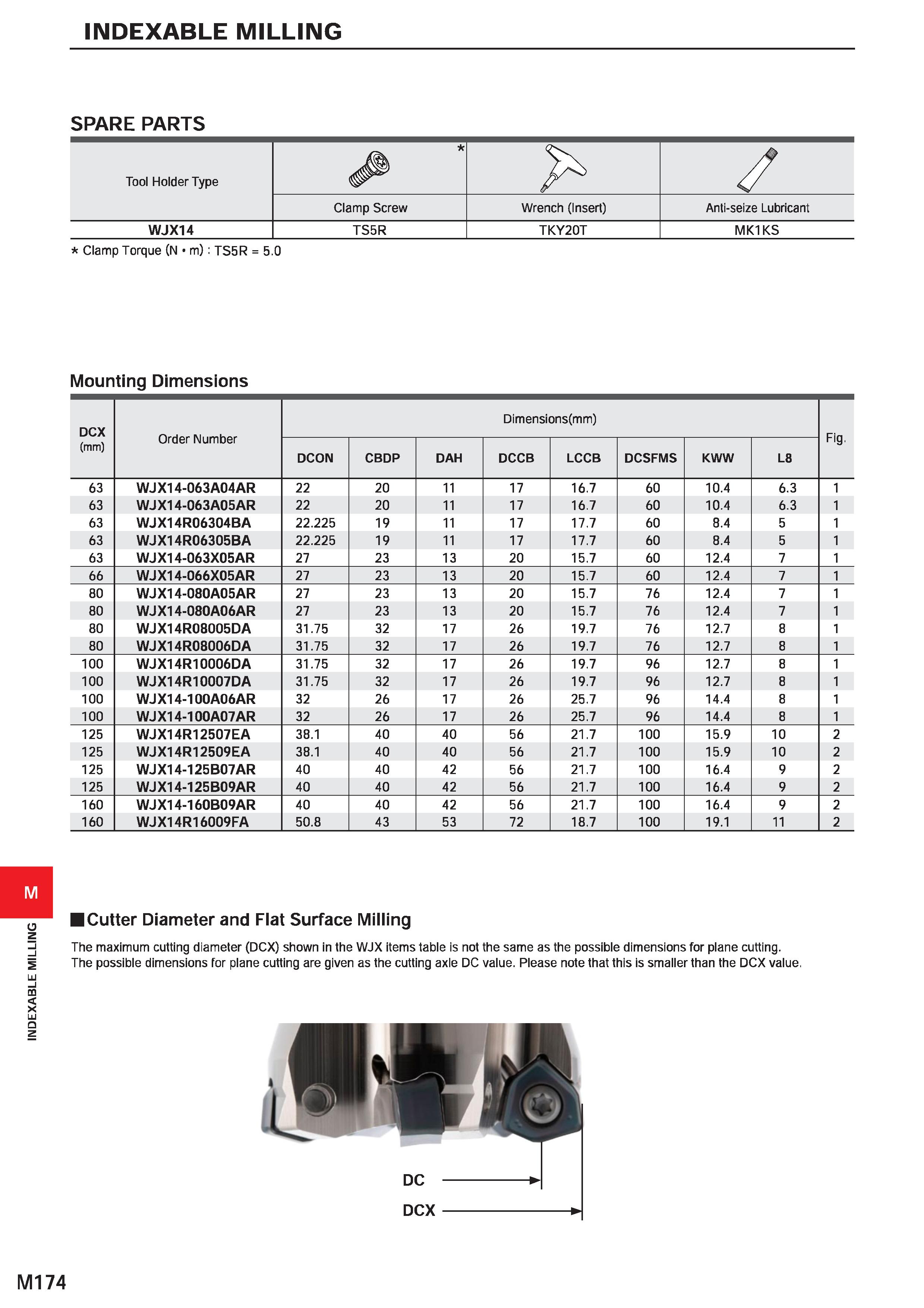

INDEXABLE MILLING INDEXABLE MILLING SPARE PARTS Tool Holder Type Clamp Screw Wrench (Insert) Anti-seize Lubricant WJX14 TS5R TKY20T MK1KS Clamp Torque (N m): TS5R = 5.0 Mounting Dimensions DCX (mm) Order Number Dimensions(mm) Fig, DCON CBDP DAH DCCB LCCB DCSFMS KWW L8 63 WJX14-063A04AR 22 20 11 17 16.7 60 10.4 6.3 1 63 WJX14-063A05AR 22 20 11 17 16.7 60 10.4 6.3 1 63 WJX14R06304BA 22.225 19 11 17 17.7 60 8.4 5 1 63 WJX14R06305BA 22.225 19 11 17 17.7 60 8.4 5 1 63 WJX14-063X05AR 27 23 13 20 15.7 60 12.4 7 1 66 WJX14-066X05AR 27 23 13 20 15.7 60 12.4 7 1 80 WJX14-080A05AR 27 23 13 20 15.7 76 12.4 7 1 80 WJX14-080A06AR 27 23 13 20 15.7 76 12.4 7 1 80 WJX14R08005DA 31.75 32 17 26 19.7 76 12.7 8 1 80 WJX14R08006DA 31.75 32 17 26 19.7 76 12.7 8 1 100 WJX14R10006DA 31.75 32 17 26 19.7 96 12.7 8 1 100 WJX14R10007DA 31.75 32 17 26 19.7 96 12.7 8 1 100 WJ X14-100 A06AR 32 26 17 26 25.7 96 14.4 8 1 100 WJX14-100A07AR 32 26 17 26 25.7 96 14.4 8 1 125 WJX14R12507EA 38.1 40 40 56 21.7 100 15.9 10 2 125 WJX14R12509EA 38.1 40 40 56 21.7 100 15.9 10 2 125 WJX14-125B07AR 40 40 42 56 21.7 100 16.4 9 2 125 WJX14-125B09AR 40 40 42 56 21.7 100 16.4 9 2 160 WJX14-160B09AR 40 40 42 56 21.7 100 16.4 9 2 160 WJX14R16009FA 50.8 43 53 72 18.7 100 19.1 11 2 Cutter Diameter and Flat Surface Milling The maximum cutting diameter (DCX) shown in the WJX items table is not the same as the possible dimensions for plane cutting. The possible dimensions for plane cutting are given as the cutting axle DC value. Please note that this is smaller than the DCX value, M174
