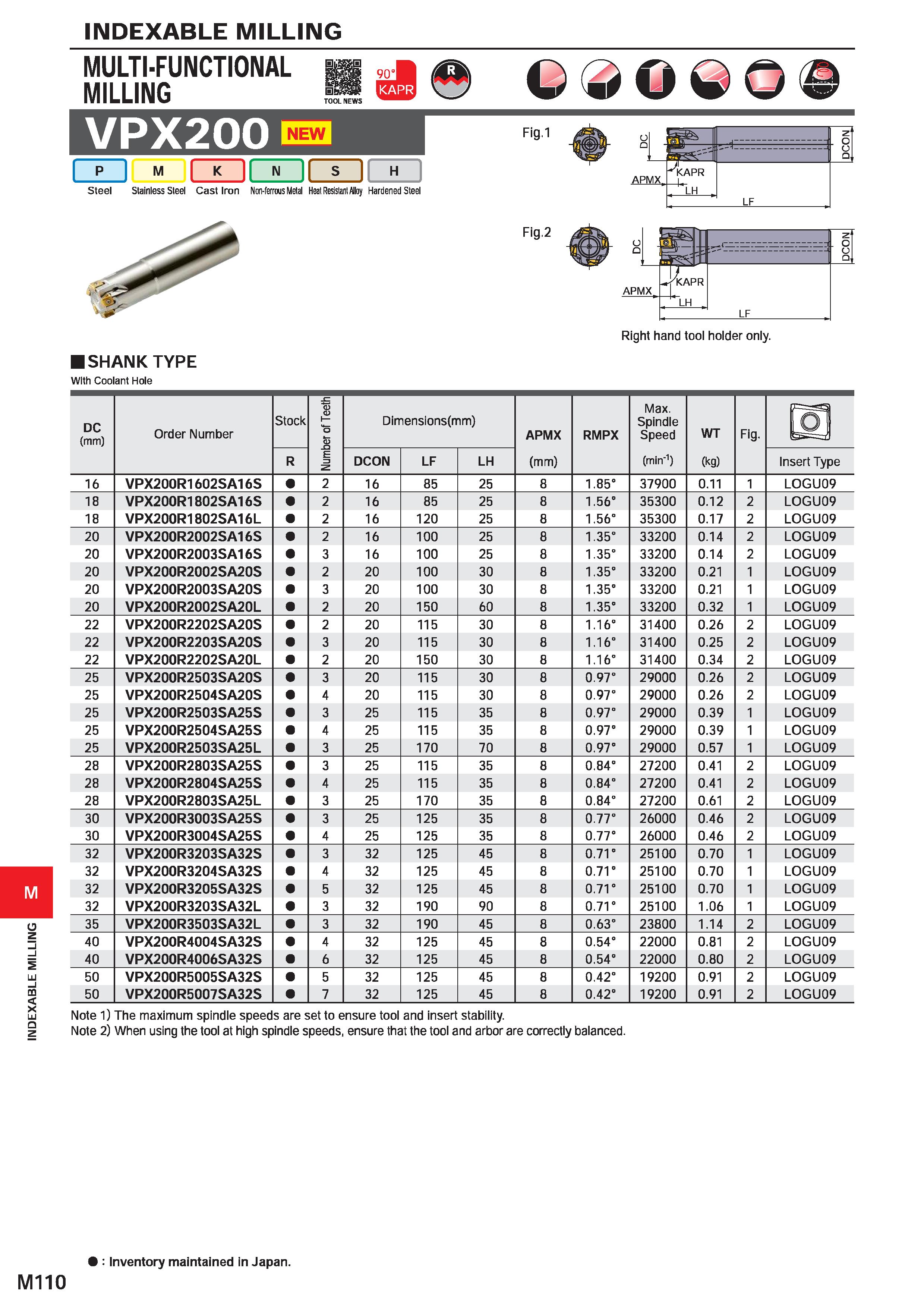

INDEXABLE MILLING INDEXABLE MILLING MULTI-FUNCTIONAL MILLING VPX200 I p I M CwOwC Fig.1 Steel Stainless Steel Cast Iron Non-ferrous Metal Heat Resistant Alloy Hardened Steel SHANK TYPE With Coolant Hole DC (mm) Order Number Stock Number of Teeth j Dimensions(mm) APMX (mm) RMPX Max. Spindle Speed (min'1) WT (kg) Fig. E R DCON LF LH Insert Type 16 VPX200R1602SA16S 2 16 85 25 8 1.85° 37900 0.11 1 LOGU09 18 VPX200R1802SA16S 2 16 85 25 8 1.56° 35300 0.12 2 LOGU09 18 VPX200R1802SA16 L 2 16 120 25 8 1.56° 35300 0.17 2 LOGU09 20 VPX200R2002SA16S 2 16 100 25 8 1.35° 33200 0.14 2 LOGU09 20 VPX200R2003SA16S 3 16 100 25 8 1.35° 33200 0.14 2 LOGU09 20 VPX200R2002SA20S 2 20 100 30 8 1.35° 33200 0.21 1 LOGU09 20 VPX200R2003SA20S 3 20 100 30 8 1.35° 33200 0.21 1 LOGU09 20 VPX200R2002SA20L 2 20 150 60 8 1.35° 33200 0.32 1 LOGU09 22 VPX200R2202SA20S 2 20 115 30 8 1.16° 31400 0.26 2 LOGU09 22 VPX200R2203SA20S 3 20 115 30 8 1.16° 31400 0.25 2 LOGU09 22 VPX200R2202SA20L 2 20 150 30 8 1.16° 31400 0.34 2 LOGU09 25 VPX200R2503SA20S 3 20 115 30 8 0.97° 29000 0.26 2 LOGU09 25 VPX200R2504SA20S 4 20 115 30 8 0.97° 29000 0.26 2 LOGU09 25 VPX200R2503SA25S 3 25 115 35 8 0.97° 29000 0.39 1 LOGU09 25 VPX200R2504SA25S 4 25 115 35 8 0.97° 29000 0.39 1 LOGU09 25 VPX200R2503S A25L 3 25 170 70 8 0.97° 29000 0.57 1 LOGU09 28 VPX200R2803SA25S 3 25 115 35 8 0.84° 27200 0.41 2 LOGU09 28 VPX200R2804SA25S 4 25 115 35 8 0.84° 27200 0.41 2 LOGU09 28 VPX200R2803S A25L 3 25 170 35 8 0.84° 27200 0.61 2 LOGU09 30 VPX200R3003SA25S 3 25 125 35 8 0.77° 26000 0.46 2 LOGU09 30 VPX200R3004SA25S 4 25 125 35 8 0.77° 26000 0.46 2 LOGU09 32 VPX200R3203SA32S 3 32 125 45 8 0.71° 25100 0.70 1 LOGU09 32 VPX200R3204SA32S 4 32 125 45 8 0.71° 25100 0.70 1 LOGU09 32 VPX200R3205SA32S 5 32 125 45 8 0.71° 25100 0.70 1 LOGU09 32 VPX200R3203SA32L 3 32 190 90 8 0.71° 25100 1.06 1 LOGU09 35 VPX200R3503SA32L 3 32 190 45 8 0.63° 23800 1.14 2 LOGU09 40 VPX200R4004SA32S 4 32 125 45 8 0.54° 22000 0.81 2 LOGU09 40 VPX200R4006SA32S 6 32 125 45 8 0.54° 22000 0.80 2 LOGU09 50 VPX200R5005SA32S 5 32 125 45 8 0.42° 19200 0.91 2 LOGU09 50 VPX200R5007SA32S 7 32 125 45 8 0.42° 19200 0.91 2 LOGU09 Note 1) The maximum spindle speeds are set to ensure tool and insert stability. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. : Inventory maintained in Japan. M110
