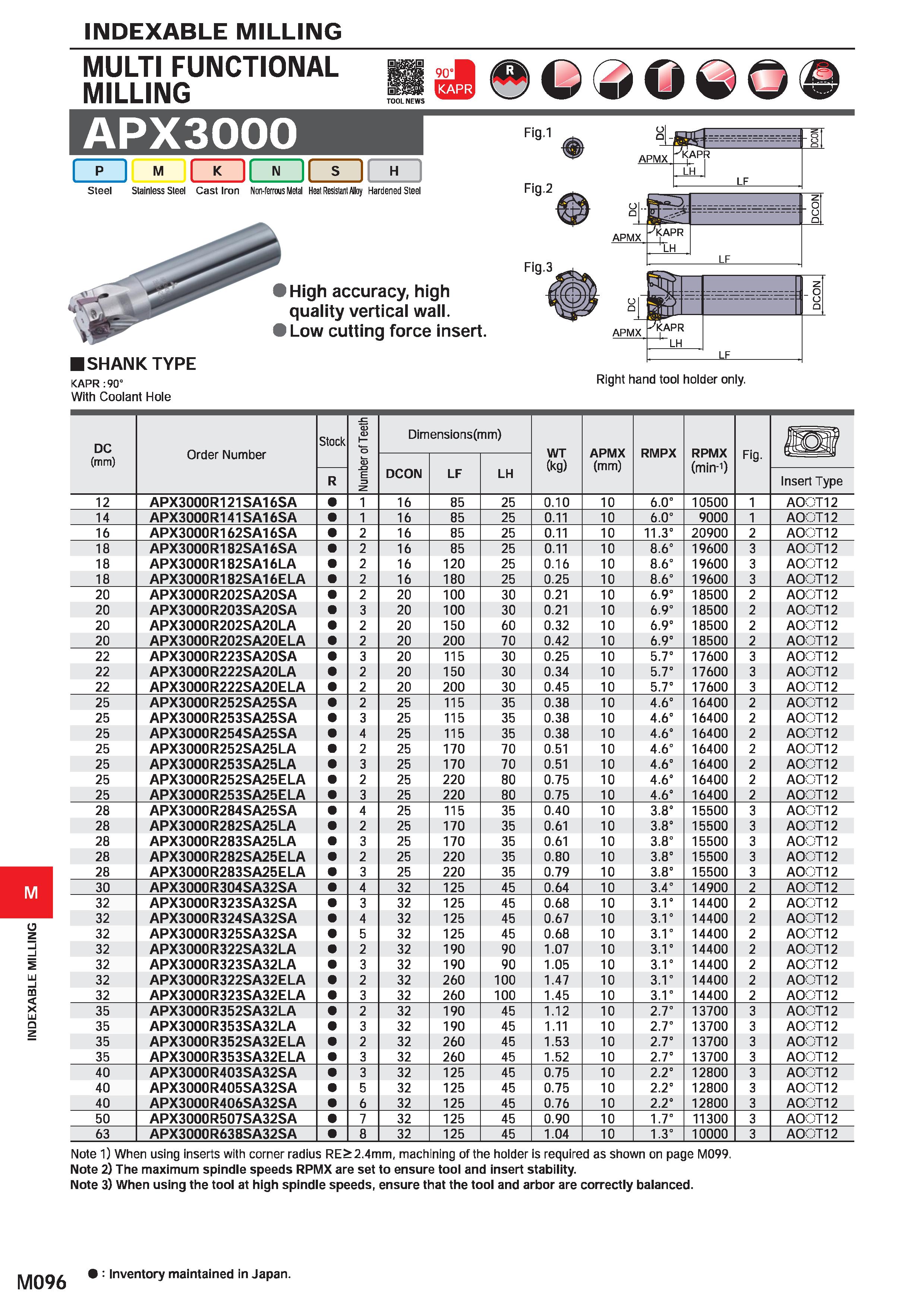

INDEXABLE MILLING MULTI FUNCTIONAL MILLING APX3000 OOOCO I P I M K ll N If H Steel Stainless Steel Cast Iron Non-ferrous Metal Heat Resistant Alloy Hardened Steel SHANK TYPE KAPR :90” With Coolant Hole DC (mm) Order Number Stock Number of Teeth j Dimensions(mm) WT (kg) APMX (mm) RMPX RPMX (min1) Fig. MUf DCON LF LH R Insert Type 12 APX3000R121SA16SA 1 16 85 25 0.10 10 6.0° 10500 1 AOC :T12 14 APX3000R141SA16SA 1 16 85 25 0.11 10 6.0° 9000 1 AOC ;T12 16 APX3000R162SA16SA 2 16 85 25 0.11 10 11.3° 20900 2 AOC ;T12 18 APX3000R182SA16SA 2 16 85 25 0.11 10 8.6° 19600 3 AOC ;T12 18 APX3000R182SA16 LA 2 16 120 25 0.16 10 8.6° 19600 3 AOC ;T12 18 APX3000R182SA16 E LA 2 16 180 25 0.25 10 8.6° 19600 3 AOC ;T12 20 APX3000R202S A20SA 2 20 100 30 0.21 10 6.9° 18500 2 AOC ;T12 20 APX3000R203S A20SA 3 20 100 30 0.21 10 6.9° 18500 2 AOC ;T12 20 APX3000R202SA20LA 2 20 150 60 0.32 10 6.9° 18500 2 AOC ;T12 20 APX3000R202SA20E LA 2 20 200 70 0.42 10 6.9° 18500 2 AOC ;T12 22 APX3000R223SA20SA 3 20 115 30 0.25 10 5.7° 17600 3 AOC ;T12 22 APX3000R222SA20LA 2 20 150 30 0.34 10 5.7° 17600 3 AOC ;T12 22 APX3000R222SA20E LA 2 20 200 30 0.45 10 5.7° 17600 3 AOC ;T12 25 APX3000R252SA25SA 2 25 115 35 0.38 10 4.6° 16400 2 AOC ;T12 25 APX3000R253SA25SA 3 25 115 35 0.38 10 4.6° 16400 2 AOC ;T12 25 APX3000R254SA25SA 4 25 115 35 0.38 10 4.6° 16400 2 AOC :T 12 25 APX3000R252SA25 LA 2 25 170 70 0.51 10 4.6° 16400 2 AOC -;T12 25 APX3000R253SA25LA 3 25 170 70 0.51 10 4.6° 16400 2 AOC ;T12 25 APX3000R252SA25 E LA 2 25 220 80 0.75 10 4.6° 16400 2 AOC :T 12 25 APX3000R253SA25 E LA 3 25 220 80 0.75 10 4.6° 16400 2 AOC :T 12 28 APX3000R284SA25SA 4 25 115 35 0.40 10 3.8° 15500 3 AOC :T 12 28 APX3000R282SA25 LA 2 25 170 35 0.61 10 3.8° 15500 3 AOC :T 12 28 APX3000R283SA25 LA 3 25 170 35 0.61 10 3.8° 15500 3 AOC :T12 28 APX3000R282SA25 E LA 2 25 220 35 0.80 10 3.8° 15500 3 AOC ;T12 28 APX3000R283SA25 E LA 3 25 220 35 0.79 10 3.8° 15500 3 AOC ;T12 30 APX3000R304S A32SA 4 32 125 45 0.64 10 3.4° 14900 2 AOC :T12 32 APX3000R323SA32SA 3 32 125 45 0.68 10 3.1° 14400 2 AOC :T 12 32 APX3000R324SA32SA 4 32 125 45 0.67 10 3.1° 14400 2 AOC :T 12 32 APX3000R325SA32SA 5 32 125 45 0.68 10 3.1° 14400 2 AOC :T12 32 APX3000R322SA32 LA 2 32 190 90 1.07 10 3.1° 14400 2 AOC ;T12 32 APX3000R323SA32 LA 3 32 190 90 1.05 10 3.1° 14400 2 AOC :T 12 32 APX3000R322SA32 E LA 2 32 260 100 1.47 10 3.1° 14400 2 AOC :T12 32 APX3000R323SA32 E LA 3 32 260 100 1.45 10 3.1° 14400 2 AOC :T12 35 APX3000R352SA32LA 2 32 190 45 1.12 10 2.7° 13700 3 AOC :T12 35 APX3000R353SA32LA 3 32 190 45 1.11 10 2.7° 13700 3 AOC :T12 35 APX3000R352SA32ELA 2 32 260 45 1.53 10 2.7° 13700 3 AOC ;T12 35 APX3000R353SA32ELA 3 32 260 45 1.52 10 2.7° 13700 3 AOC ;T12 40 APX3000R403SA32SA 3 32 125 45 0.75 10 2.2° 12800 3 AOC ;T12 40 APX3000R405SA32SA 5 32 125 45 0.75 10 2.2° 12800 3 AOC ;T12 40 APX3000R406SA32SA 6 32 125 45 0.76 10 2.2° 12800 3 AOC ;T12 50 APX3000R507SA32SA 7 32 125 45 0.90 10 1.7° 11300 3 AOC :T12 63 APX3000R638SA32SA 8 32 125 45 1.04 10 1.3° 10000 3 AOC ;T12 Note 1) When using inserts with corner radius RE>2.4mm, machining of the holder is required as shown on page M099. Note 2) The maximum spindle speeds RPMX are set to ensure tool and insert stability. Note 3) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. High accuracy, high quality vertical wall. Low cutting force insert. : Inventory maintained in Japan.
