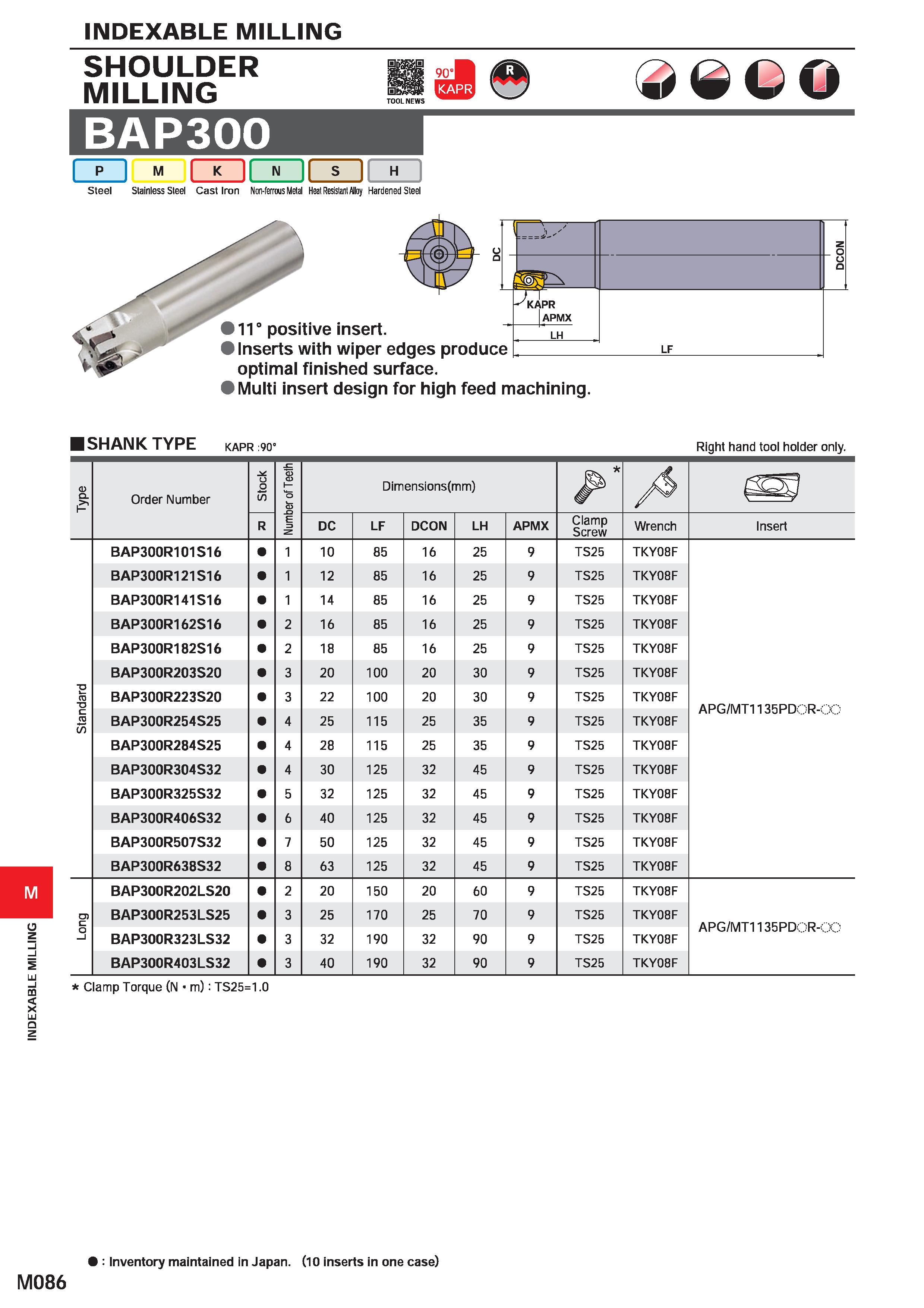

INDEXABLE MILLING INDEXABLE MILLING SHOULDER MILLING BAP300 BE TOOL NEW5 90 I P I M K ll N If H Steel Stainless Steel Cast Iron Non-ferrous Metal Heat Resistant Alloy Hardened Steel a LF SHANK TYPE KAPR :90° Right hand tool holder only. D Q. Order Number (7) t= D L> I Dimensions(mm) / & R E =j DC LF DCON LH APMX Clamp Screw Wrench Insert BAP300R101S16 1 10 85 16 25 9 TS25 TKY08F BAP300R121S16 1 12 85 16 25 9 TS25 TKY08F BAP300R141S16 1 14 85 16 25 9 TS25 TKY08F BAP300R162S16 2 16 85 16 25 9 TS25 TKY08F BAP300R182S16 2 18 85 16 25 9 TS25 TKY08F BAP300R203S20 3 20 100 20 30 9 TS25 TKY08F o 1 ra o BAP300R223S20 3 22 100 20 30 9 TS25 TKY08F APG/MT1135PDOR-CO ra ra 75 BAP300R254S25 4 25 115 25 35 9 TS25 TKY08F BAP300R284S25 4 28 115 25 35 9 TS25 TKY08F BAP300R304S32 4 30 125 32 45 9 TS25 TKY08F BAP300R325S32 5 32 125 32 45 9 TS25 TKY08F BAP300R406S32 6 40 125 32 45 9 TS25 TKY08F BAP300R507S32 7 50 125 32 45 9 TS25 TKY08F BAP300R638S32 8 63 125 32 45 9 TS25 TKY08F BAP300R202LS20 2 20 150 20 60 9 TS25 TKY08F O) ra BAP300R253LS25 3 25 170 25 70 9 TS25 TKY08F APG/MT1135PDOR-CO o i BAP300R323LS32 3 32 190 32 90 9 TS25 TKY08F BAP300R403LS32 3 40 190 32 90 9 TS25 TKY08F Clamp Torque (N m): TS25=1.0 positive insert. KAPR I APMX inserts with wiper edges produce optimal finished surface. Multi insert design for high feed machining. : Inventory maintained in Japan. (10 inserts in one case) M086
